EC220E
c1c67a42-daa3-45d2-bf95-3e80820fa768
FIRST CHOICE FOR COMFORT
Description

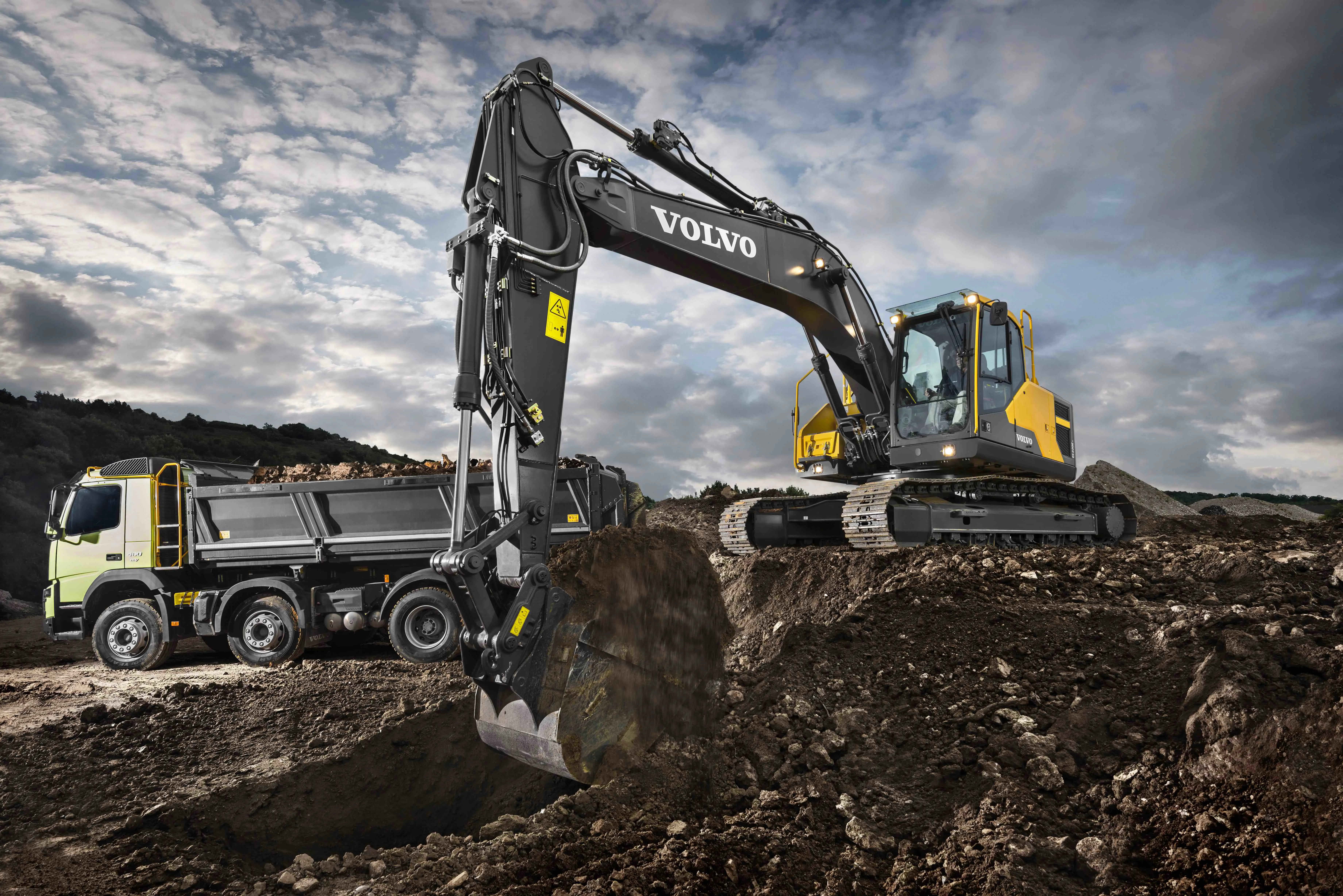

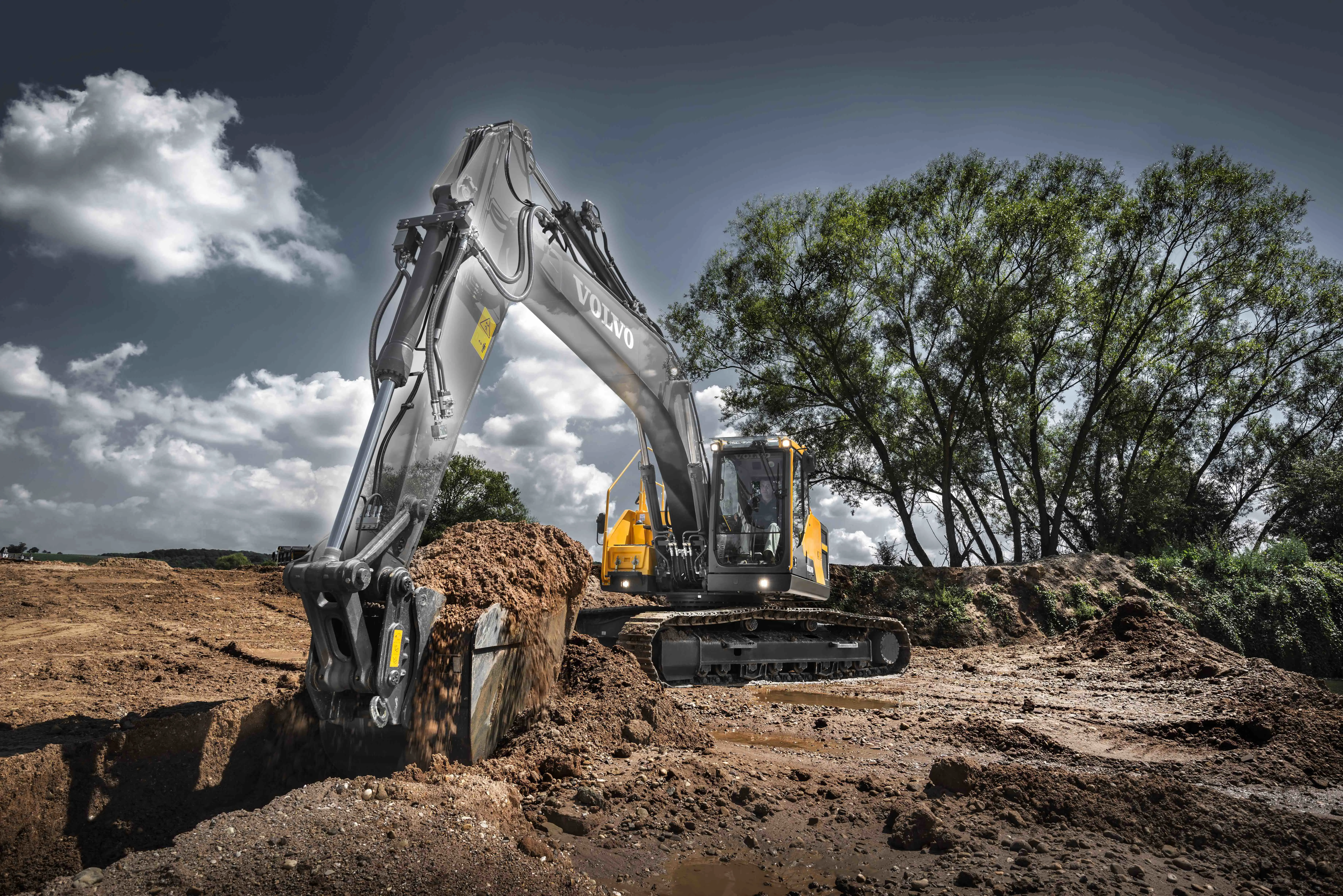

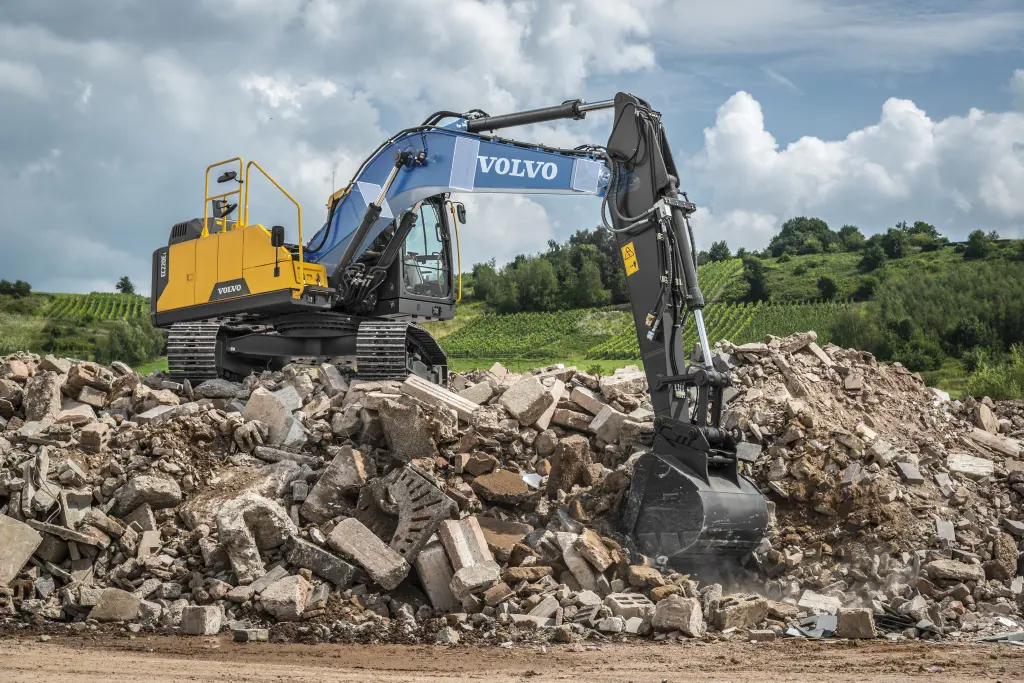

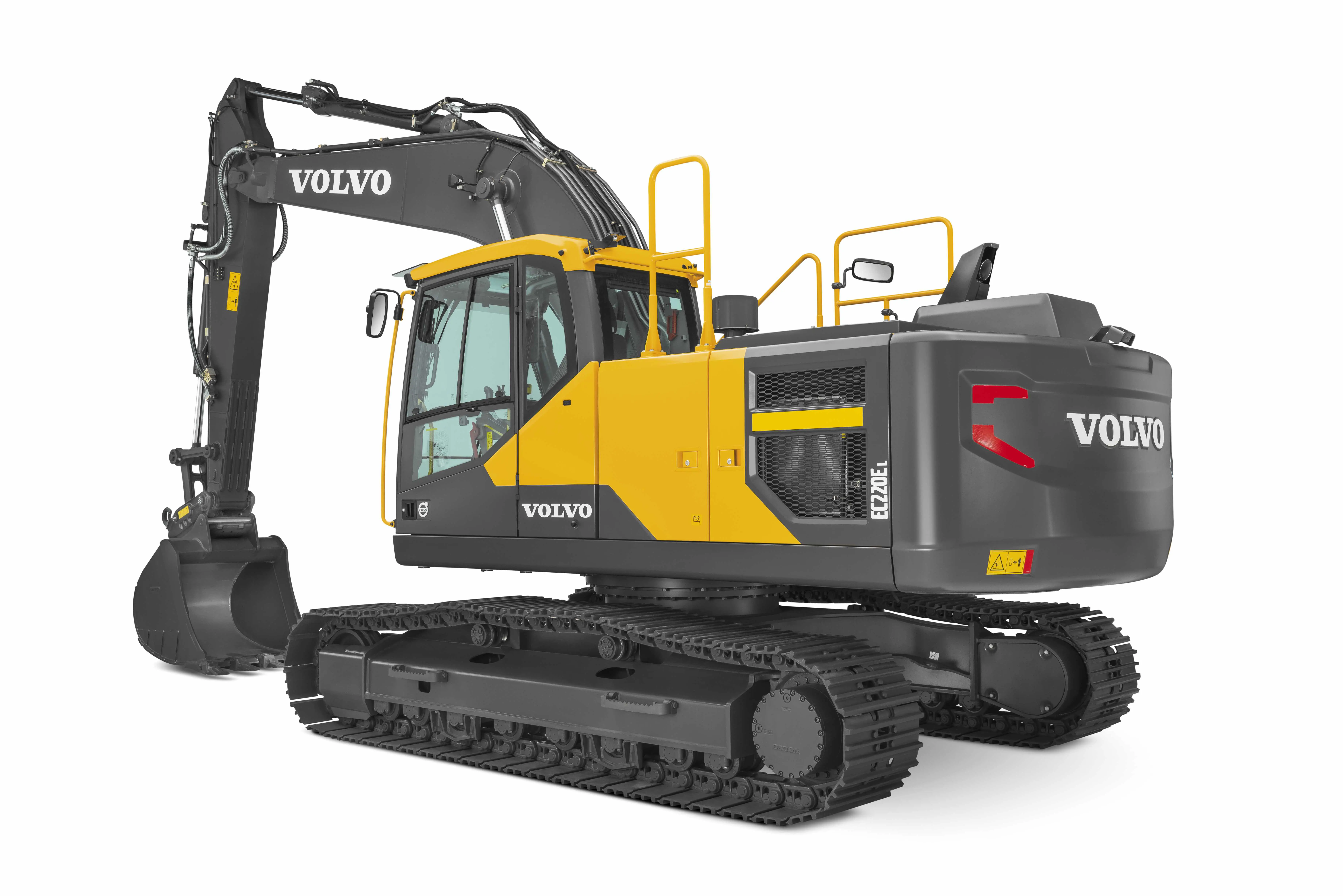

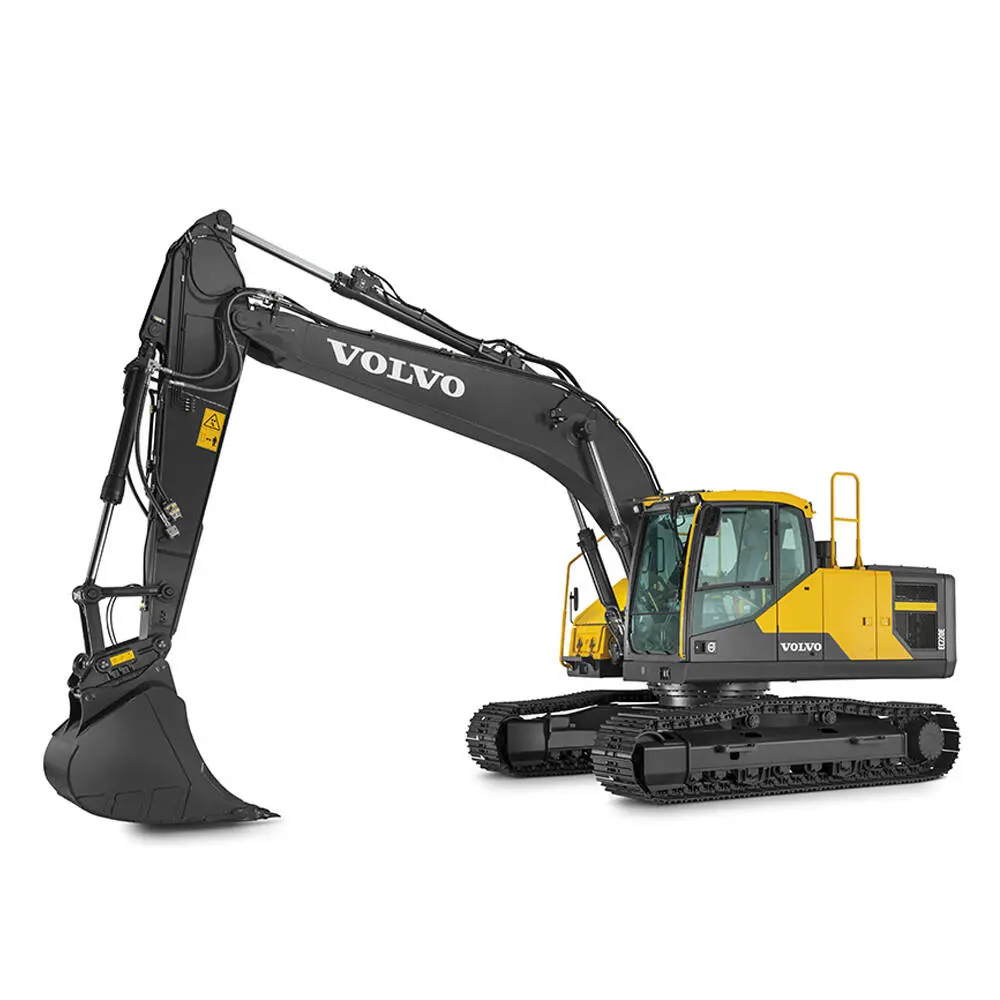

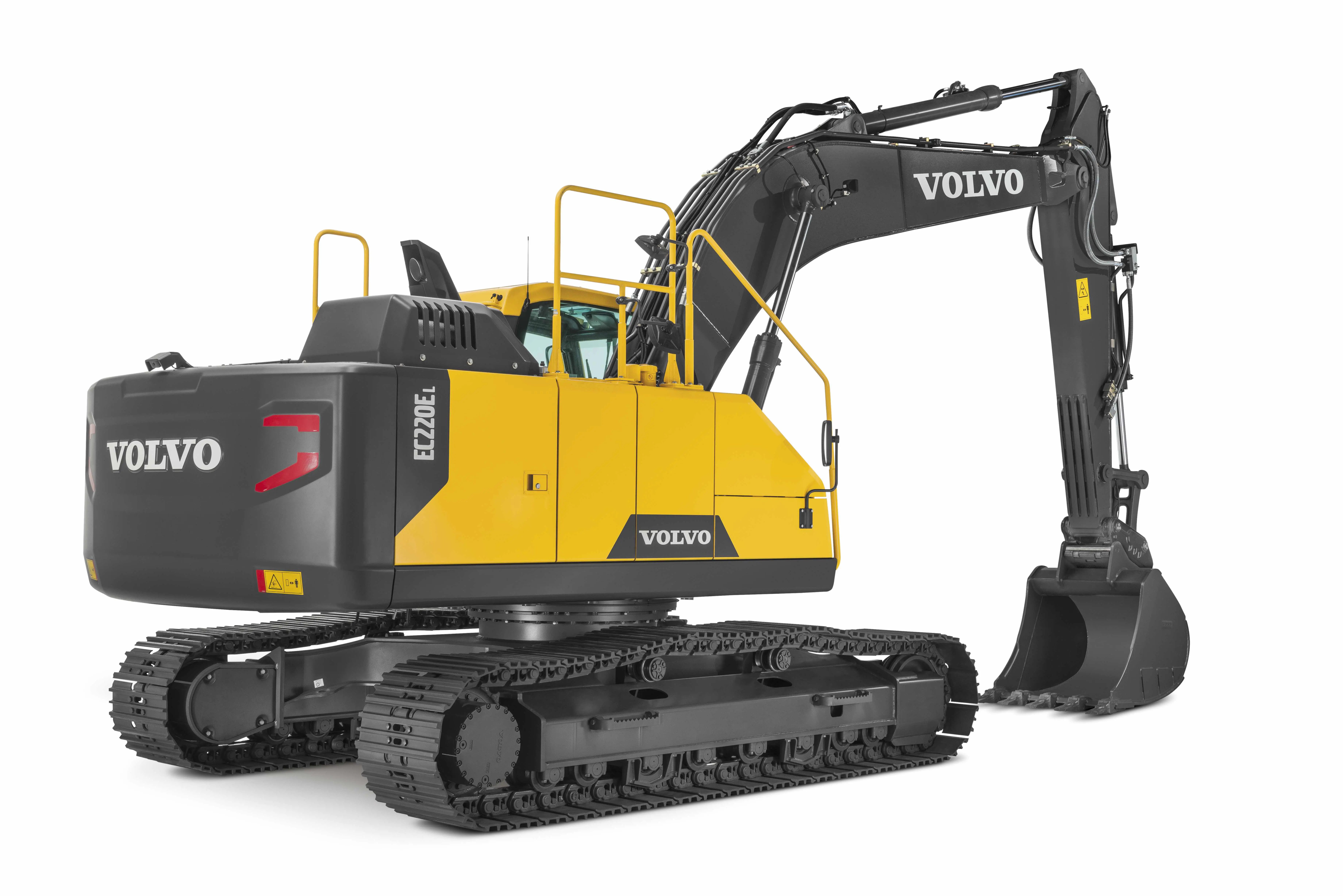

EC220E EXCAVATOR - FIRST CHOICE FOR COMFORT
The EC220E Excavator from Volvo builds on its reputation of efficiency by ensuring all components work together and complement each other. The enhancements deliver the best in class fuel efficiency while not compromising on power – reducing emissions and consumption, while increasing productivity.
Features And Benefits
- OPTIMIZED HYDRAULICS
- Designed to perfectly match the engine power, reduce power loss, and improve controllability and response time.

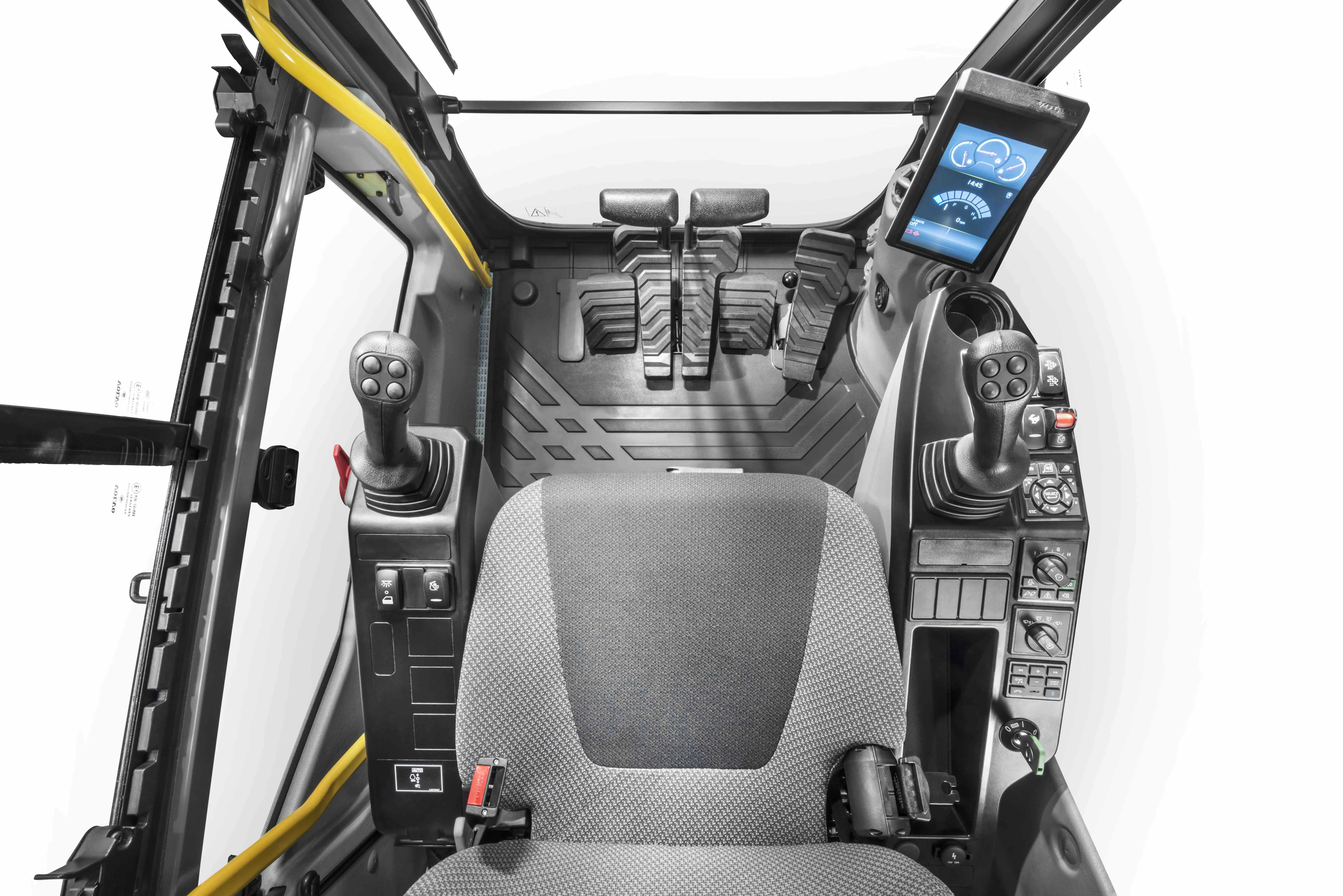

- NEW HUMAN MACHINE INTERFACE (HMI)
- All machine interfaces are ergonomically positioned and designed for optimum control and efficiency.
- BUILT TO LAST
- No detail – no matter how small - is overlooked. Silicone caulking is used to prevent rust, waterproof harnesses and connections have been installed - as well as heavy-duty door hinges and bolted-on protection for the framework lights.
- ULTIMATE TOOL CARRIER
- Designed to not only be compatible with a range of attachments, but also to enhance their performance by easily and quickly switching to accommodate any needs.
- GROUPED FILTERS
- Filters are well grouped and easily accessible from the ground level. This facilitates the speed and ease of servicing.
Images
Brochures
Video
Description
Standard Arm Length 9 ft 6 in (2900 mm)
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D 6J
Displacement 348 Inches³ (5.7 ltr)
Rated Speed 1800 rpm
Engine Output - Net 172 hp (128 kW)
Engine Output - Gross 173 hp (129 kW)
Number Of Track Rollers - Each Side 8
Track Shoe Width 32 inches (800 mm)
Dimensions
Bucket Capacity 0.63-1.66 yd³ (0.48-1.27 m³)
Bucket Weight 1468-2289 lbs (666-1038 kg)
Transport Length Mono Boom 31 ft 9 in (9690 mm)
Max Transport Height 10 ft 1 in (3075 mm)
Max Machine Width 10 ft 10 in (3290 mm)
Track Length On Ground 12 ft (3660 mm)
Zero Tailswing No
Heaped Bucket Capacity 1.2 yd³ (0.92 m³)
Variable Undercarriage Availability No
Ground Level Reach 32 ft 1 in (9770 mm)
Dig Height 31 ft (9450 mm)
Dump Height - Mono Boom 21 ft 10 in (6650 mm)
Dig Depth 22 ft 1 in (6730 mm)
Mono Boom - Size 18 ft 8 in (5.7 m)
Standard Arm 9 ft 6 in (2900 mm)
Longest Arm 11 ft 6 in (3500 mm)
Capacities
Fuel Tank 85 gallons (US) (320 ltr)
Performance
Ground Bearing Pressure 5.1 PSI (35.3 kPa)
Standard Shoe Width 32 inches (800 mm)
Arm Tearout 24730 lbf (110 kN)
Bucket Breakout 33500 lbf (149 kN)
Main Pump Variable axial piston
Number Of Main Pumps 2
Main Pump - Flow 110 gallons (US) / min (414 lt/min)
Weights
Operating Weight 49580 lbs (22485 kg)
