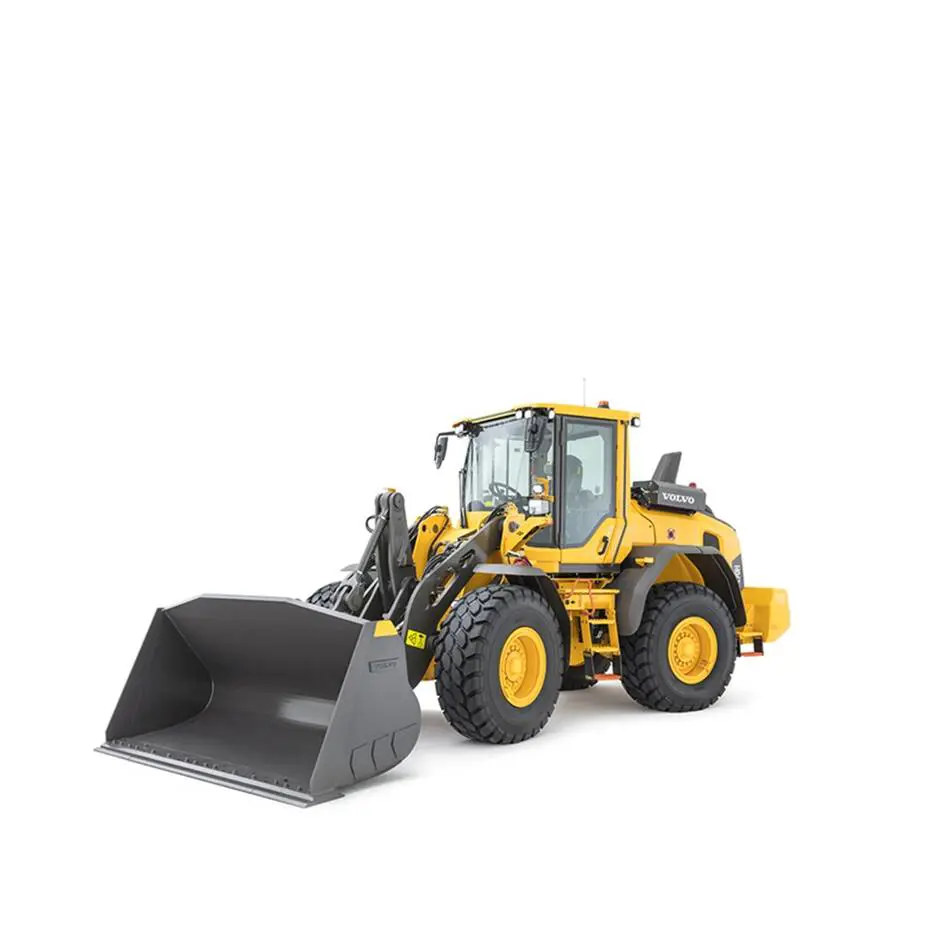

L70H
c97ef9d5-43a2-484a-998c-c4cb79457772
Description
Get the most out of your upgraded L70H, packed with innovative features that achieve up to 20% greater fuel efficiency. Combining new optimized loading unit weight, redesigned counterweight, and increased top speed of 50km/h (31 mph), facilitated by the optional lock-up function, the next-generation wheel loader delivers greater profitability in every load.
Features And Benefits
- Wide range of attachments

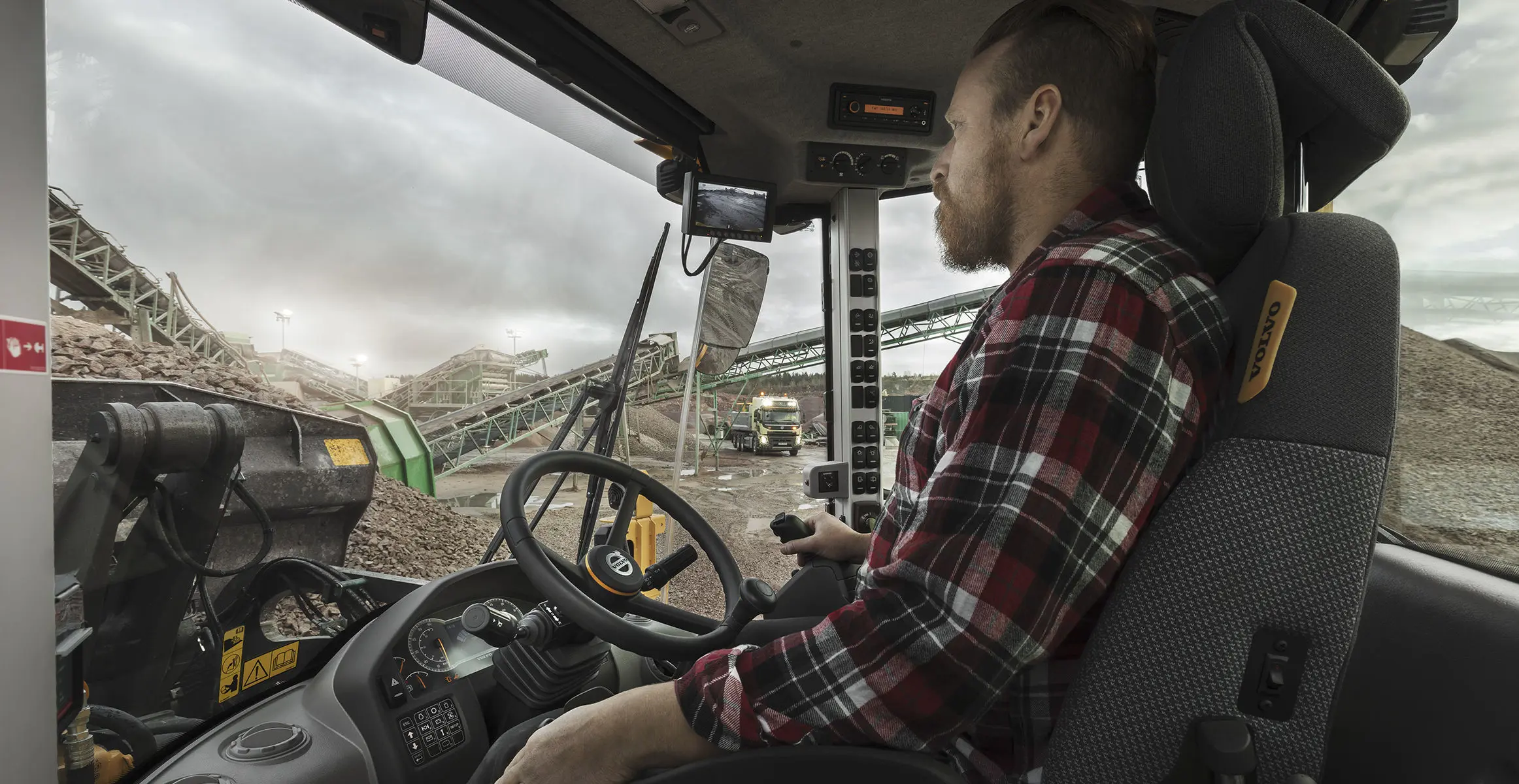

- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls
- Outstanding serviceability
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D6J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Selective Catalytic Reduction
Aspiration Turbo - Charge Air Cooled
Displacement 348 Inches³ (5.7 ltr)
Rated Speed 1500 rpm
Engine Output - Gross 170 hp (127 kW)
Engine Output - Net 170 hp (127 kW)
Torque 629 lbf / ft (853 Nm)
Transmission Type Powershift
Traction Control Yes
Tire - Manufacturer Michelin
Tire Size - Standard 20.5 R25
Tyre - Model XHA 2
Service Brake - Type Wet Disc
Dimensions
Wheelbase 9 ft 10 in (3000 mm)
Length With Bucket On Ground 24 ft 2 in (7370 mm)
Height - Over Cab 10 ft 9 in (3280 mm)
Ground Clearance 18 inches (450 mm)
Width Over Tires - Std 8 ft 1 in (2460 mm)
Bucket Type GP w/Edge
Bucket Width 8 ft 8 in (2650 mm)
Full Lift Dump Height 9 ft 3 in (2830 mm)
Full Lift Reach 3 ft 6 in (1060 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 46 °
Height - Pivot Pin 12 ft 8 in (3870 mm)
Height - Maximum 16 ft 9 in (5100 mm)
Turn Radius Over Bucket - Std. 19 ft 3 in (5870 mm)
Capacities
Fuel Tank 58.6 gallons (US) (222 ltr)
Heaped Capactiy 2.9 yd³ (2.2 m³)
Bucket Capacity - Smallest 2.9 yd³ (2.2 m³)
Largest Bucket Capacity 2.9 yd³ (2.2 m³)
Performance
Straight Tipping Load 22730 lbs (10310 kg)
Full Turn Tipping Load 19680 lbs (8920 kg)
Breakout - Bucket 22000 lbf (9979.03 kgf)
Bucket Breakout 22200 lbf (98.7 kN)
Ride Control System Yes
Oscillation - Rear Axle 26 °
Load Sensing Yes
Weights
Bucket Capacity 2.9 yd³ (2.2 m³)
Operating Weight 30260 lbs (13720 kg)
