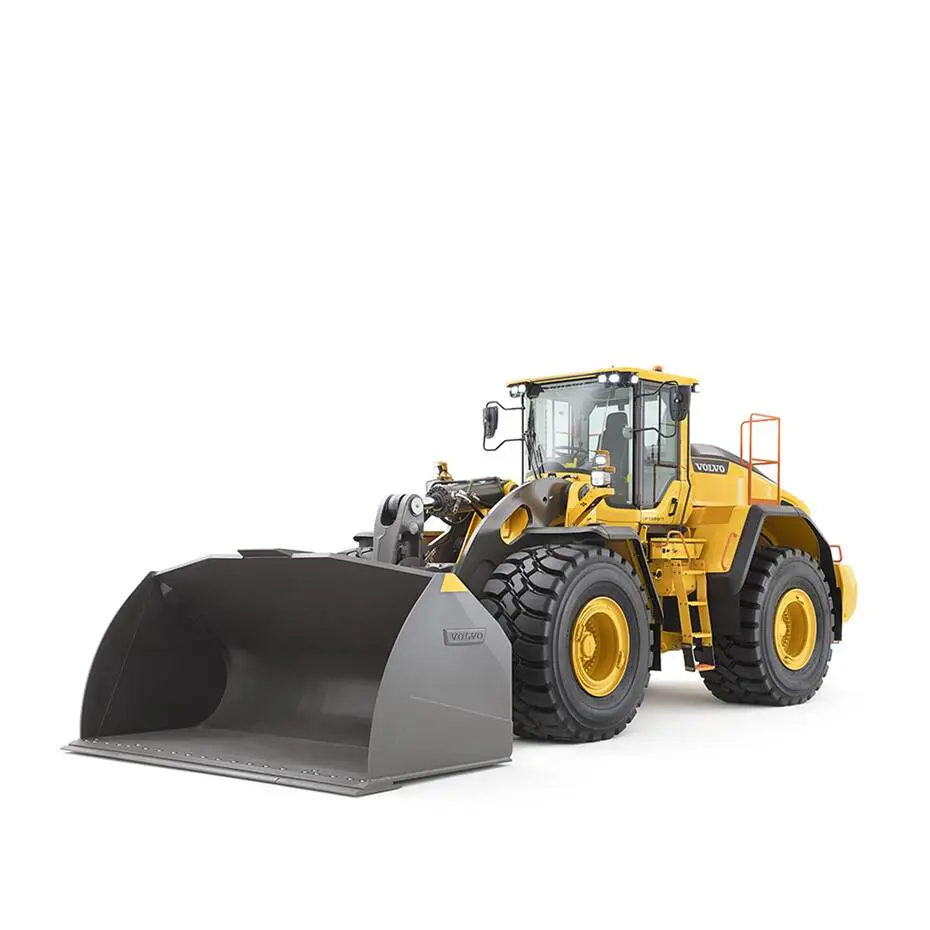

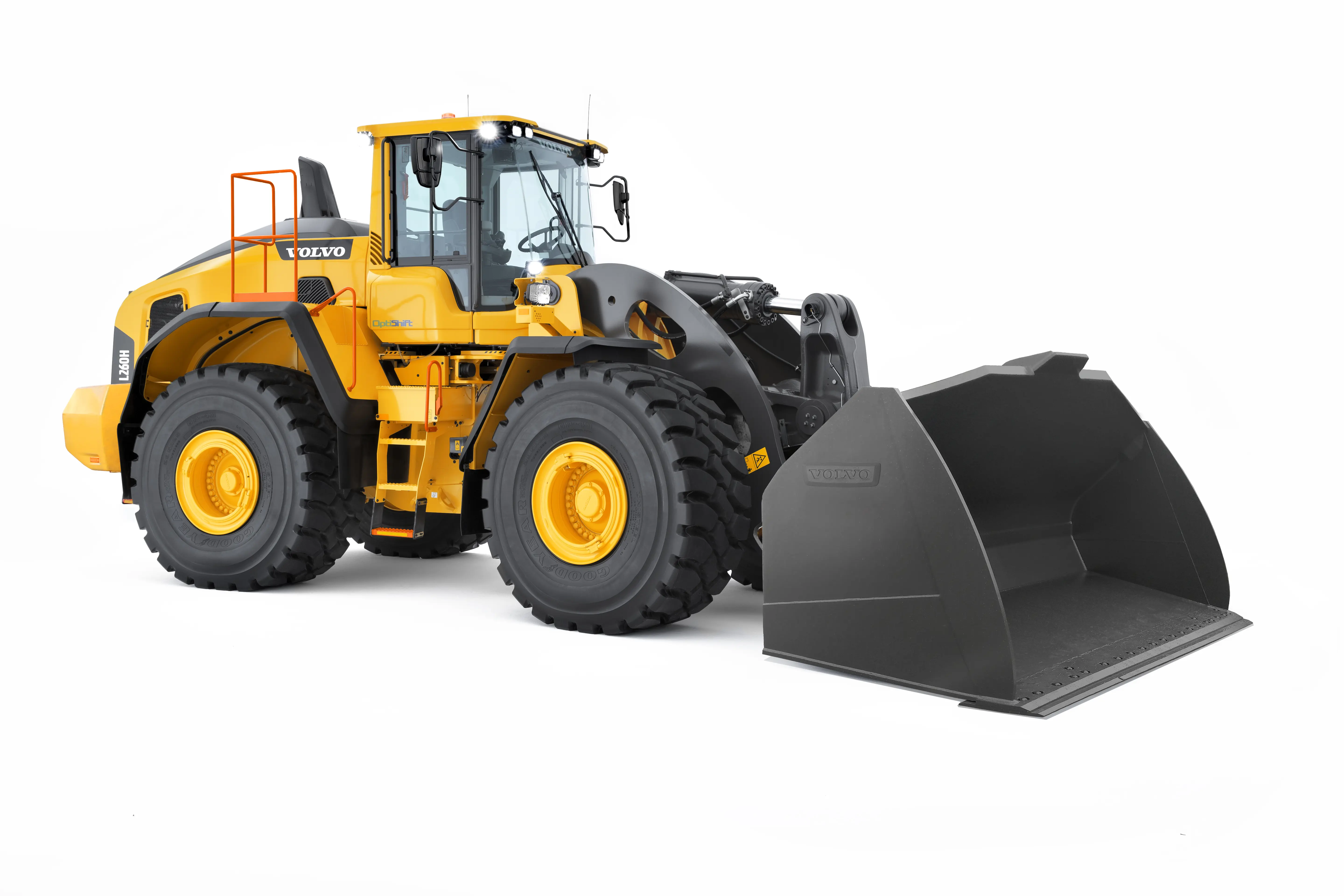

L260H
cc0a4098-fe22-4609-a434-7b07276dd908
A CLASS OF ITS OWN
Description
Committed to its legacy, Volvo was the first to present a 35 ton wheel loader to the industry in 2011 – with the L250G. Created with the customer for the customer, Volvo brings the next generation wheel loader – the L260H.
Features And Benefits
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls
- Outstanding serviceability
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Particulate Filter
Aspiration Var. Geometry Turbo - Charge Air Cooled
Displacement 782 Inches³ (12.8 ltr)
Rated Speed 1400 rpm
Engine Output - Gross 416 hp (310 kW)
Engine Output - Net 414 hp (309 kW)
Torque 1728 lbf / ft (2343 Nm)
Transmission Type Powershift
Traction Control No
Tire Size - Standard 875 / 65 R29
Service Brake - Type Wet Disc
Dimensions
Wheelbase 12 ft 6 in (3800 mm)
Length With Bucket On Ground 31 ft 1 in (9470 mm)
Height - Over Cab 12 ft 3 in (3720 mm)
Ground Clearance 21 inches (530 mm)
Width Over Tires - Std 10 ft 9 in (3270 mm)
Bucket Type Rehandling w/Edge
Bucket Width 11 ft 11 in (3650 mm)
Full Lift Dump Height 10 ft 7 in (3220 mm)
Full Lift Reach 5 ft 7 in (1690 mm)
Loader - Geometry Z-Bar
Dump Angle - At Dump 45 °
Dump Angle - Maximum 43 °
Height - Pivot Pin 15 ft 2 in (4630 mm)
Height - Maximum 21 ft 9 in (6640 mm)
Turn Radius Over Bucket - Std. 26 ft 9.5 in (8160 mm)
Capacities
Fuel Tank 96.7 gallons (US) (366 ltr)
Heaped Capactiy 9.5 yd³ (7.3 m³)
Bucket Capacity - Smallest 7.2 yd³ (5.5 m³)
Largest Bucket Capacity 9.5 yd³ (7.3 m³)
Performance
Straight Tipping Load 60850 lbs (27600 kg)
Full Turn Tipping Load 52404 lbs (24100 kg)
Breakout - Bucket 63660 lbf (28876 kgf)
Bucket Breakout 63660 lbf (283.1 kN)
Ride Control System Optional
Oscillation - Rear Axle 30 °
Load Sensing Yes
Weights
Bucket Capacity 7.2-9.5 yd³ (5.5-7.3 m³)
Operating Weight 76090 lbs (34510 kg)
