EC27D
cd5cbcf9-8310-42e7-9256-996dd989f00f
DO MORE, EVERYWHERE
Description
DO MORE, EVERYWHERE

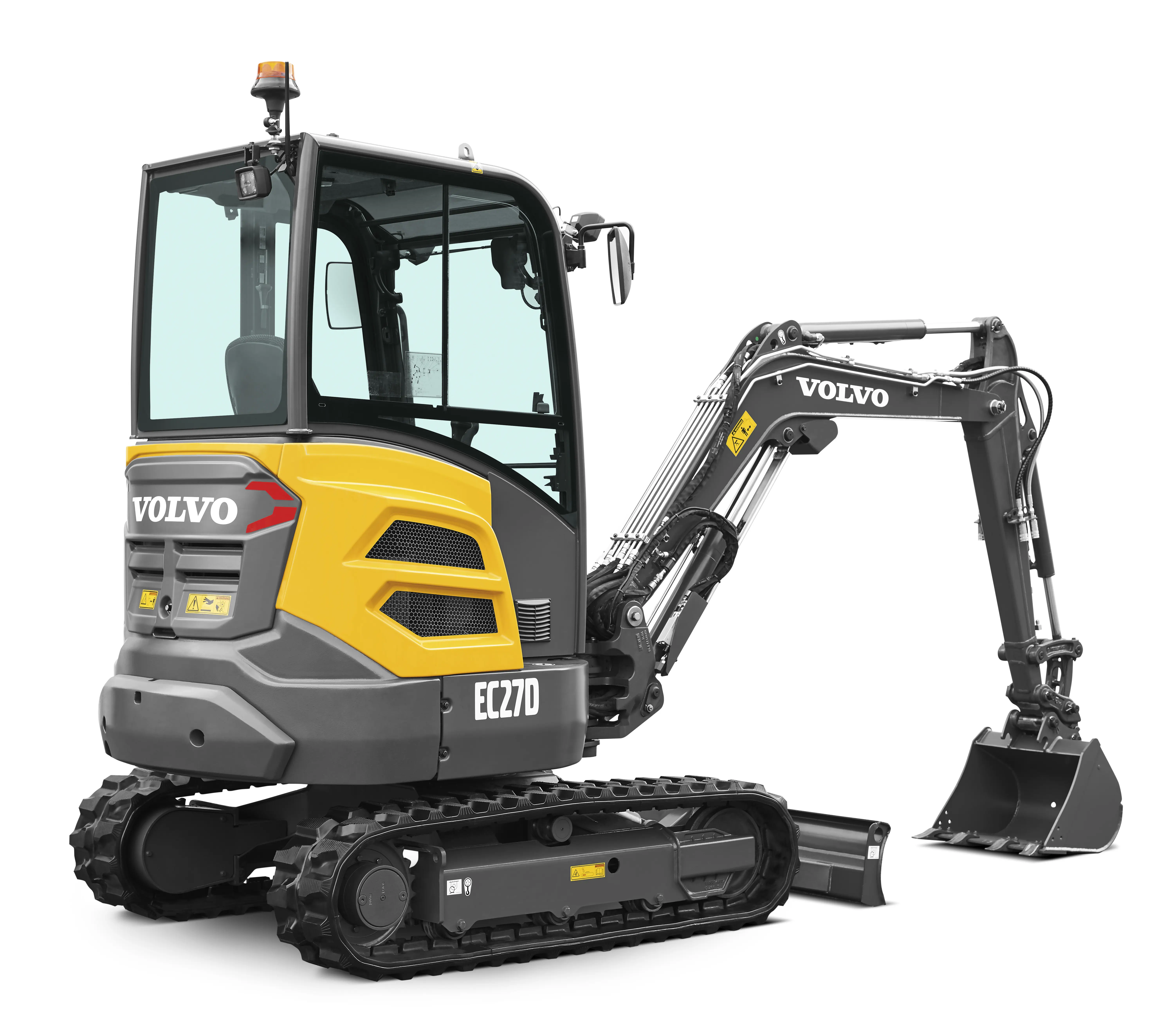

Count on the Volvo EC27D compact excavator for best-in-class performance. With impressive lifting capacities and excellent digging forces, this rock-solid machine can handle a variety of jobs. Combining durability and ease of operation with serviceability and versatility, the EC27D is designed to stretch further, dig deeper, and reach higher.
Features And Benefits
- BUILT READY

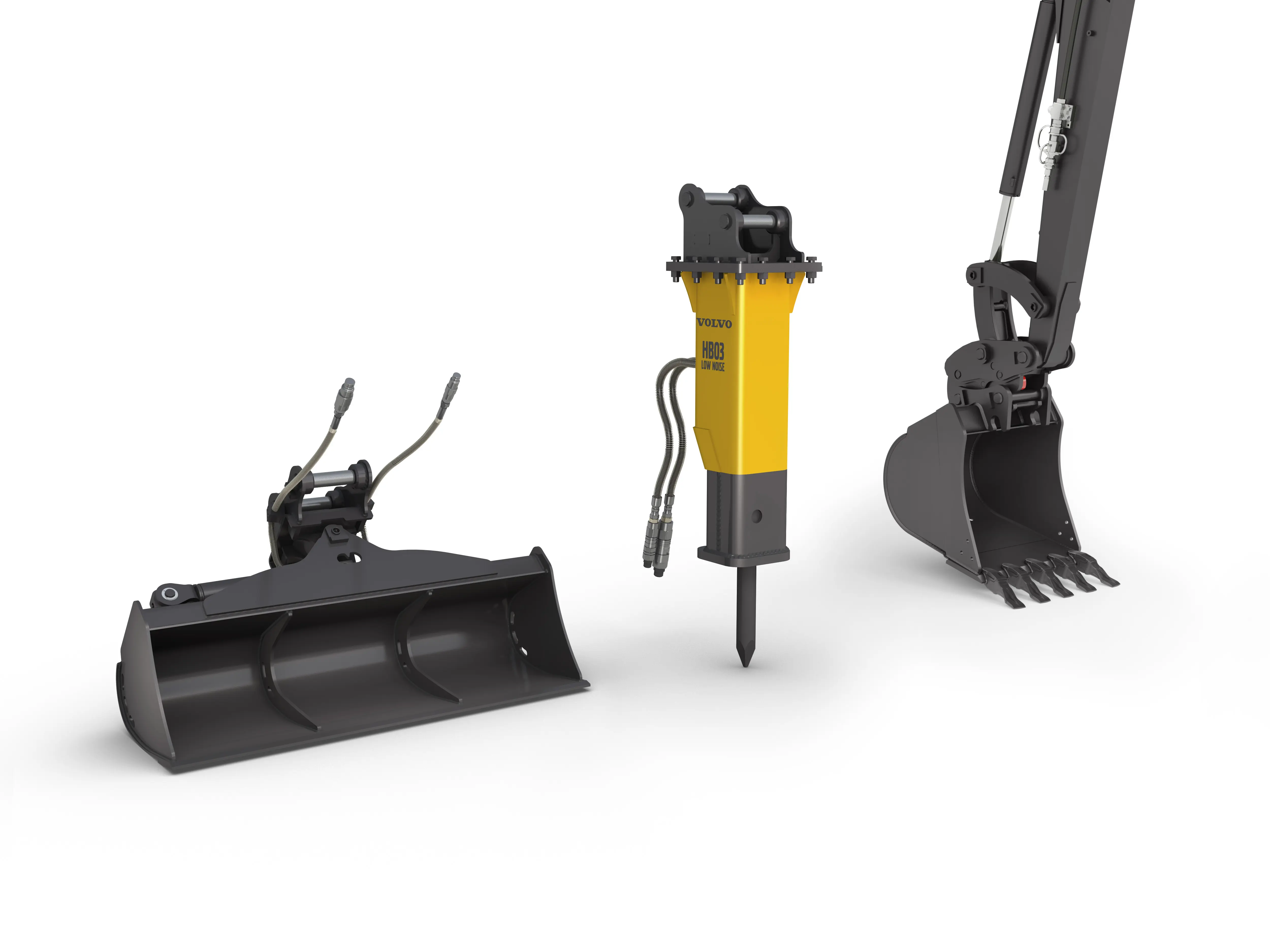

- Built to work for you, the EC27D is an industry leader. Optimize machine performance, productivity, and versatility with Volvo's range of durable attachments and customer solutions. Tailored to your business and operations - just like your EC27D - our unique, global dealer support network is built around you. Protect your profits with a long-term partnership and benefit from an array of services using Genuine Volvo Parts, delivered by passionate people.
- DESIGNED TO PERFORM

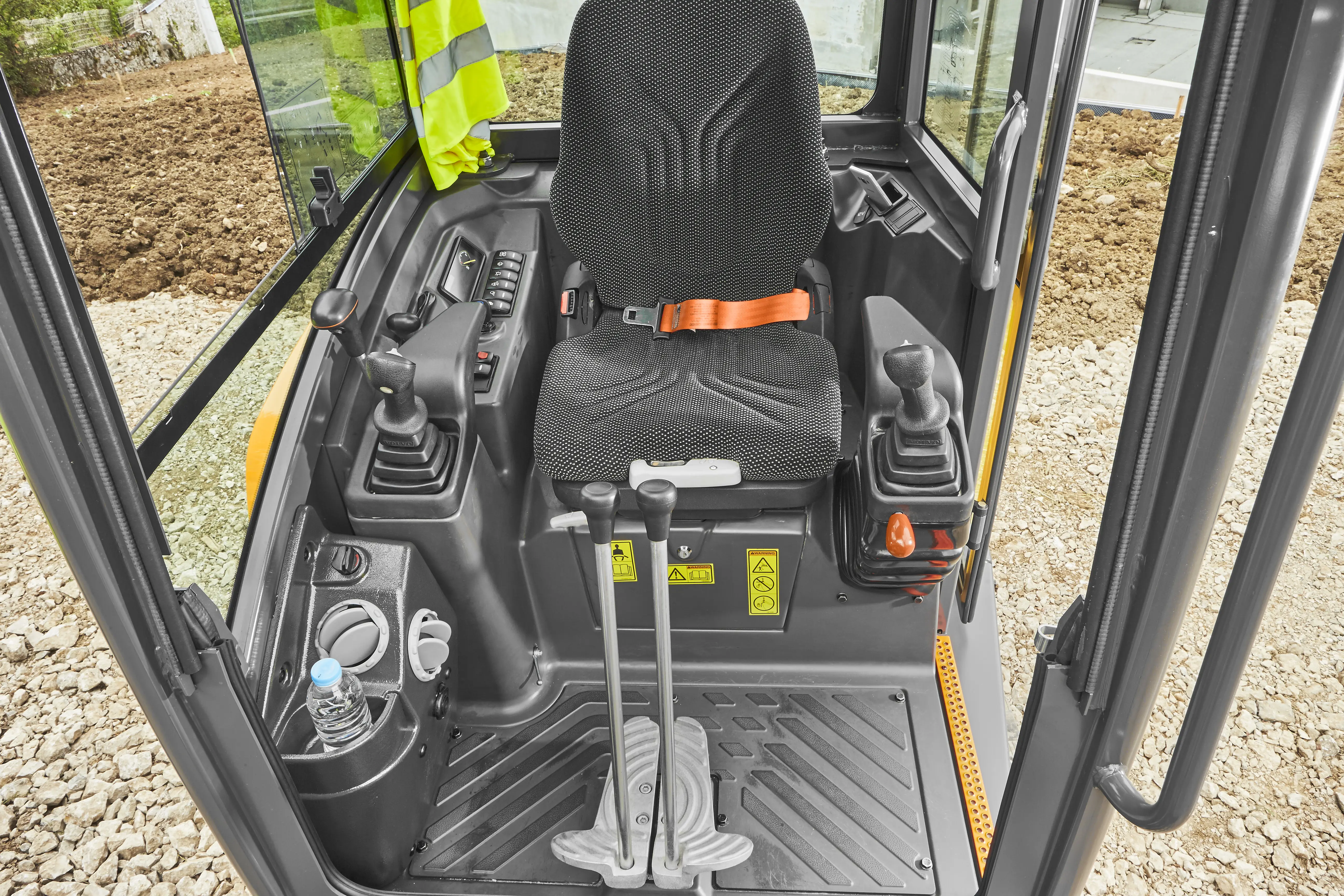

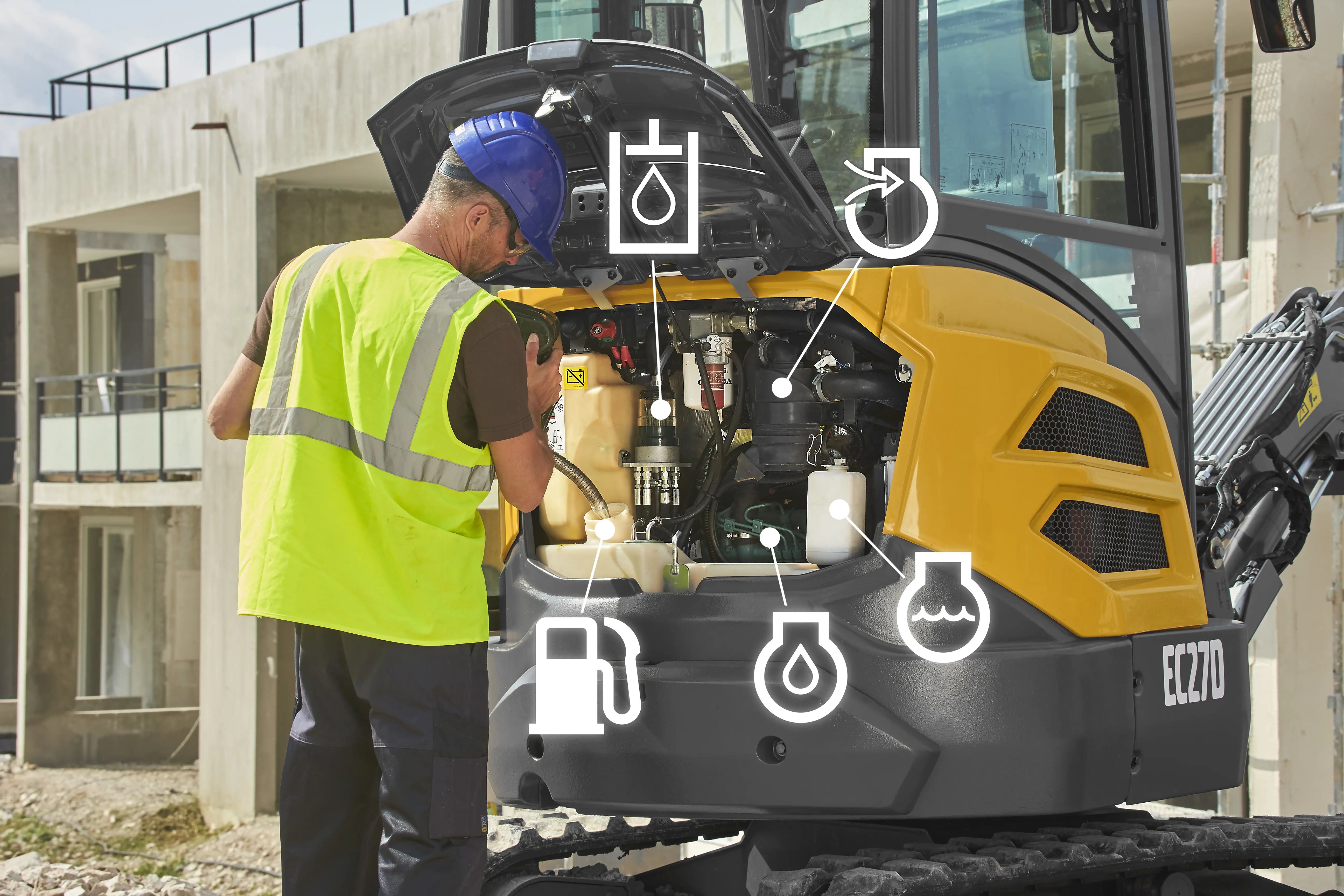

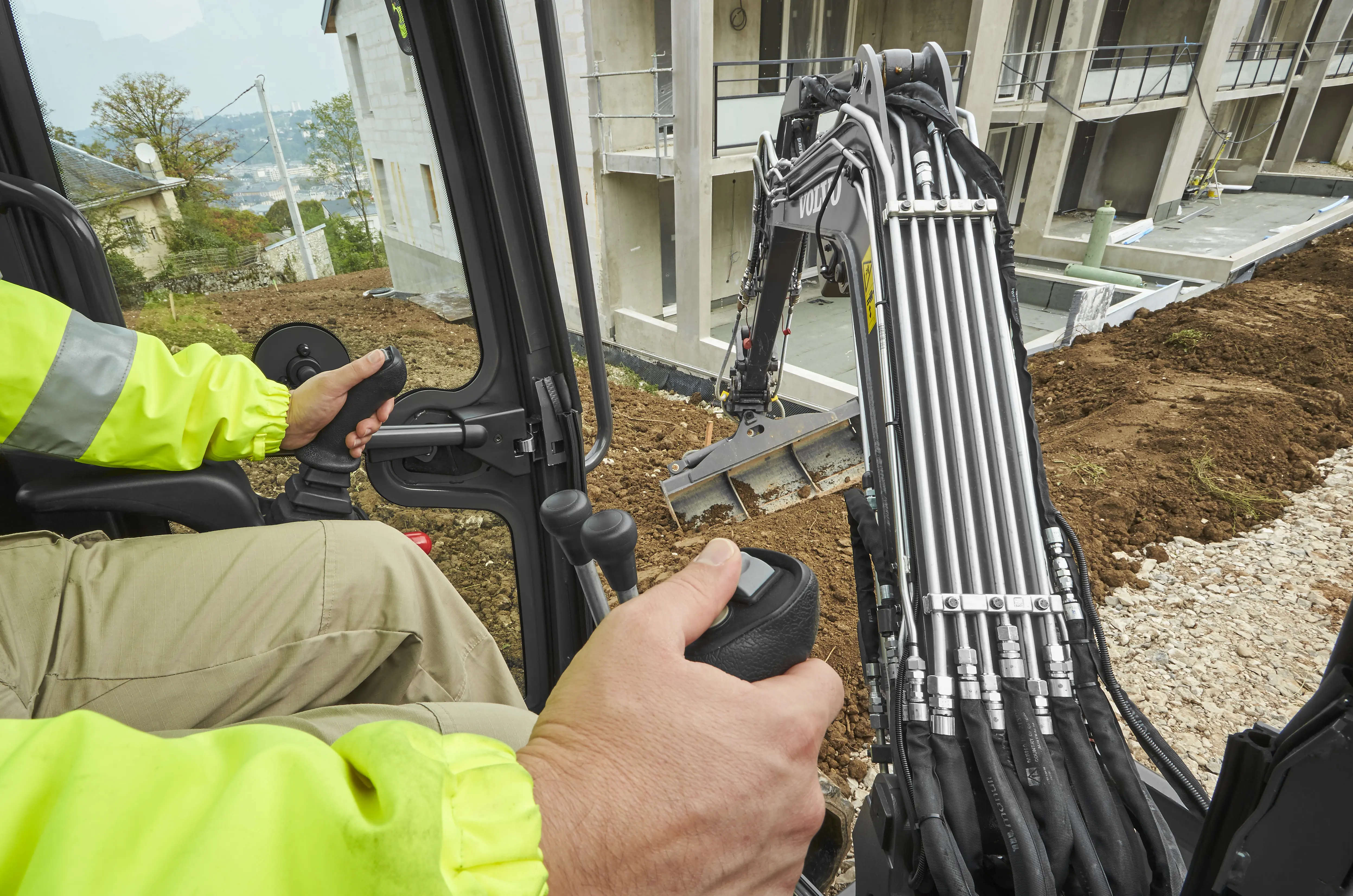

- Stretch further, dig deeper, and reach higher with the EC27D. Based on a proven design, this compact excavator is built to perform and boost profitability. Combining intuitive operation and operator comfort with simple serviceability, this machine provides all the strength and versatility you need – because big jobs demand big performance.
Images
Description
Standard Arm Length 3 ft 11 in (1200 mm)
Telematics
Telematics Available Option
Driveline
Engine Manufacturer Volvo
Engine Model D 1.1A
Displacement 68.5 Inches³ (1.123 ltr)
Rated Speed 2400 rpm
Engine Output - Net 20.9 hp (15.6 kW)
Number Of Track Rollers - Each Side 3
Track Shoe Width 11.8 inches (300 mm)
Dimensions
Bucket Capacity 0.04-0.15 yd³ (0.034-0.119 m³)
Bucket Weight 130 lbs (59 kg)
Transport Length Mono Boom 14 ft 5 in (4400 mm)
Max Transport Height 8 ft 4 in (2535 mm)
Max Machine Width 5 ft 1 in (1550 mm)
Track Length On Ground 4 ft 8.6 in (1440 mm)
Zero Tailswing No
Heaped Bucket Capacity 0.1 yd³ (0.074 m³)
Bucket Width - Standard 19.7 inches (500 mm)
Track Gauge - Standard 4 ft 1 in (1250 mm)
Variable Undercarriage Availability No
Ground Level Reach 14 ft 1 in (4295 mm)
Dig Height 14 ft 3 in (4333 mm)
Dump Height - Mono Boom 10 ft 2 in (3092 mm)
Dig Depth 8 ft 2 in (2486 mm)
Standard Arm 3 ft 11 in (1200 mm)
Longest Arm 4 ft 11 in (1500 mm)
Capacities
Fuel Tank 7.4 gallons (US) (28 ltr)
Performance
Ground Bearing Pressure 4 PSI (27.8 kPa)
Standard Shoe Width 12 inches (300 mm)
Arm Tearout 4060 lbf (18.06 kN)
Bucket Breakout 5528 lbf (24.59 kN)
Main Pump Variable axial piston
Weights
Operating Weight 6019 lbs (2730 kg)
