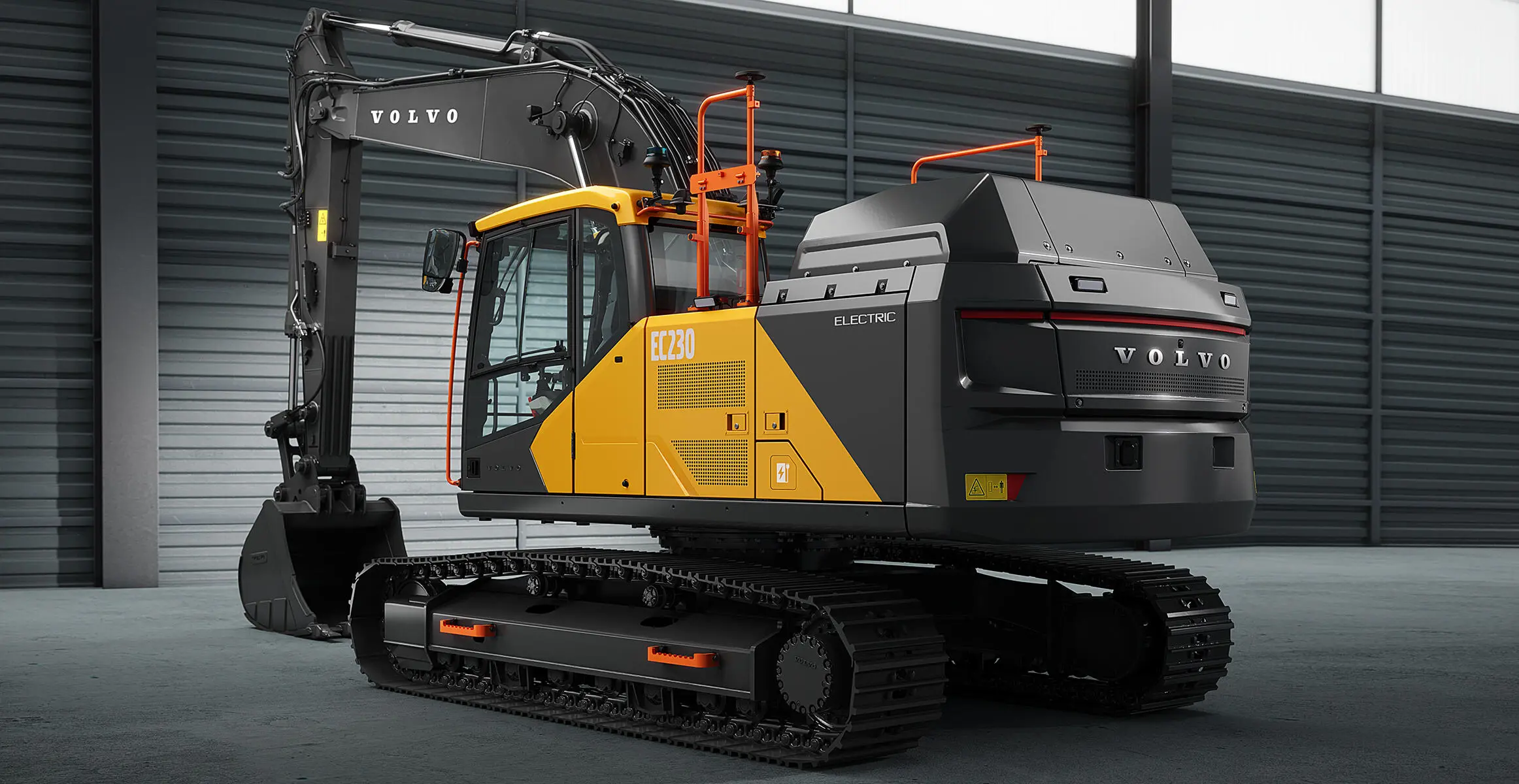

EC230 Electric
Description
This is a general-purpose machine designed for extraction, earthmoving and grading for site preparation as well as waste- and scrap handling. The EC230 Electric is based on the conventional diesel-powered EC230, and will deliver the same performance, if not better, with the added benefits of zero emissions, low noise, and low total cost of ownership.
Features And Benefits
Images
Brochures
Video
Description
Operating Weight 50600 lbs (22950 kg)
Standard Arm Length 9 ft 6 in (2900 mm)
Telematics
Telematics Available Yes
Driveline
Number Of Track Rollers - Each Side 8
Track Shoe Width 24 inches (600 mm)
Battery Capacity 450 kWh
Dimensions
Bucket Capacity 0.63-1.73 yd³ (0.48-1.32 m³)
Bucket Weight 1468-2296 lbs (666-1041 kg)
Transport Length Mono Boom 32 ft (9745 mm)
Max Transport Height 10 ft 11 in (3320 mm)
Max Machine Width 9 ft 10 in (2990 mm)
Track Length On Ground 12 ft (3660 mm)
Tailswing Radius 9 ft 7 in (2910 mm)
Zero Tailswing No
Heaped Bucket Capacity 1.43 yd³ (1.09 m³)
Variable Undercarriage Availability No
Ground Level Reach 32 ft 3 in (9835 mm)
Dig Height 31 ft (9445 mm)
Dump Height - Mono Boom 21 ft 6 in (6555 mm)
Dig Depth 22 ft 5 in (6825 mm)
Performance
Ground Bearing Pressure 7 PSI (48 kPa)
Arm Tearout 24730 lbf (110 kN)
Bucket Breakout 33500 lbf (149 kN)
Number Of Main Pumps 2
Main Pump - Flow 110 gallons (US) / min (416 lt/min)
