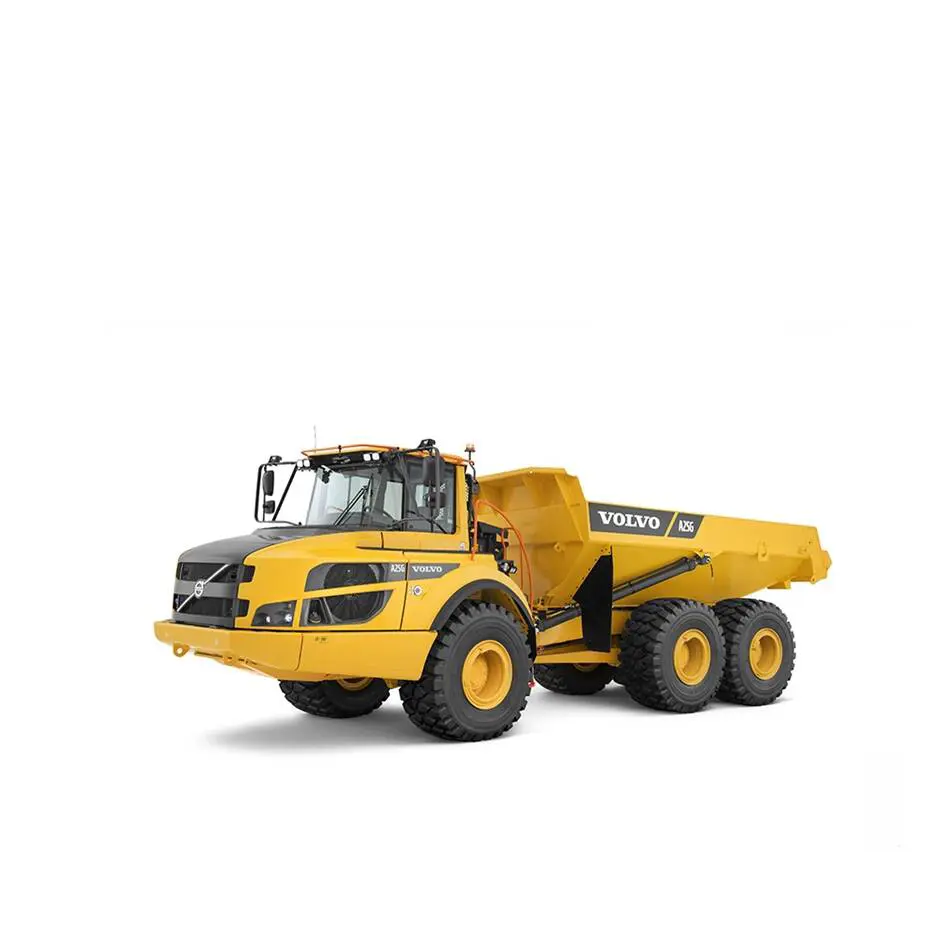

A25G
d0392f4c-4588-44e3-b426-18ccf3769e27
LOAD UP
Description

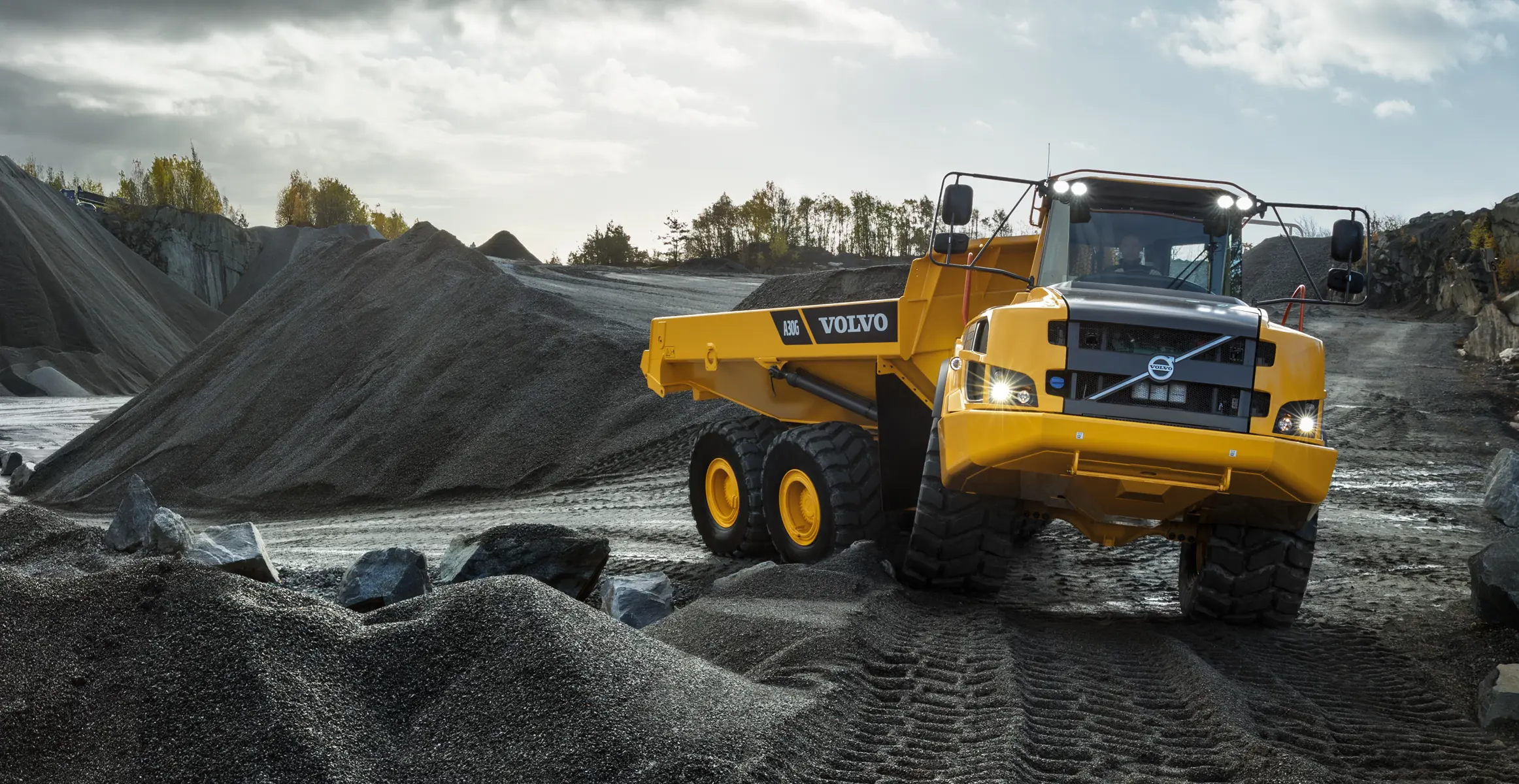

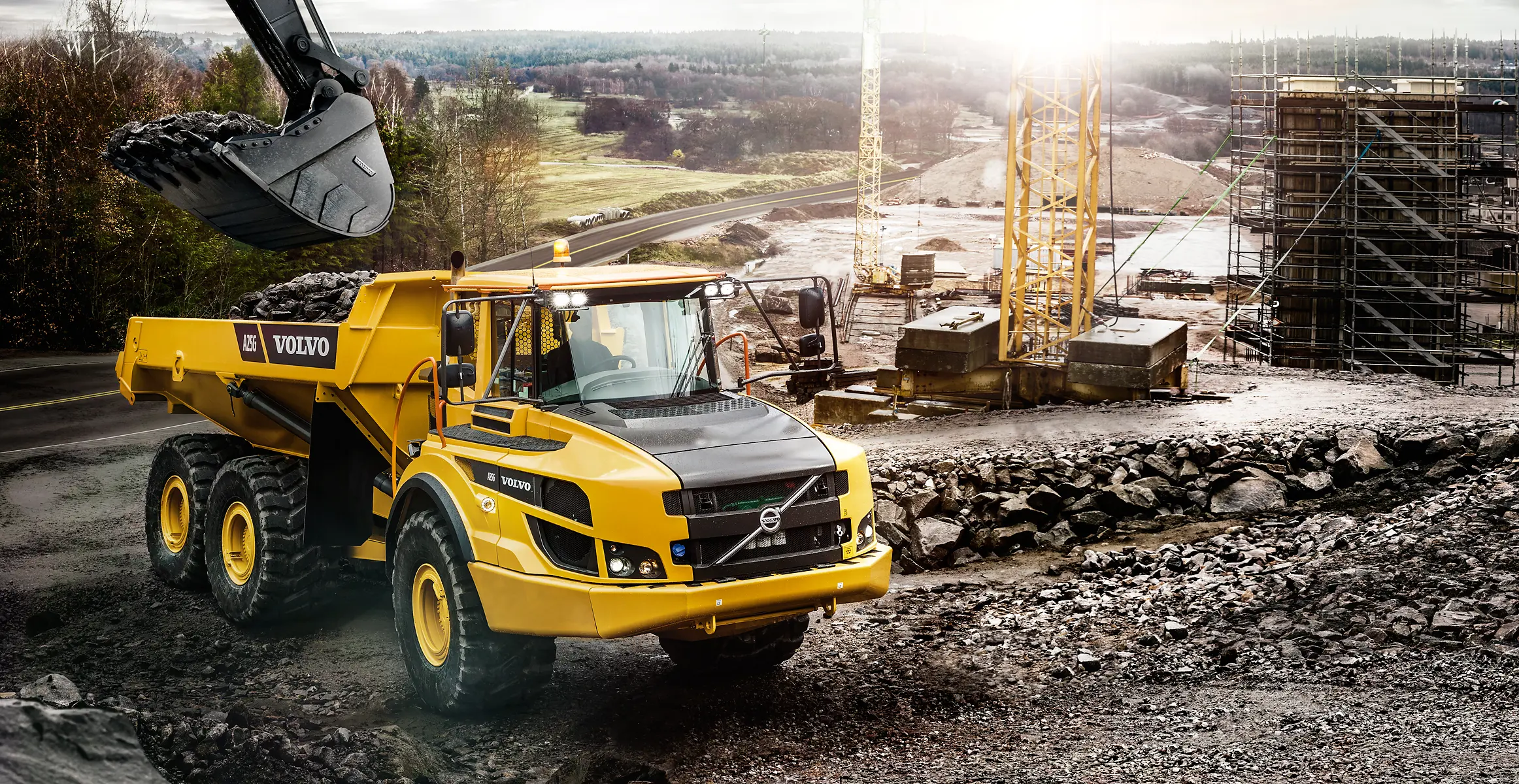

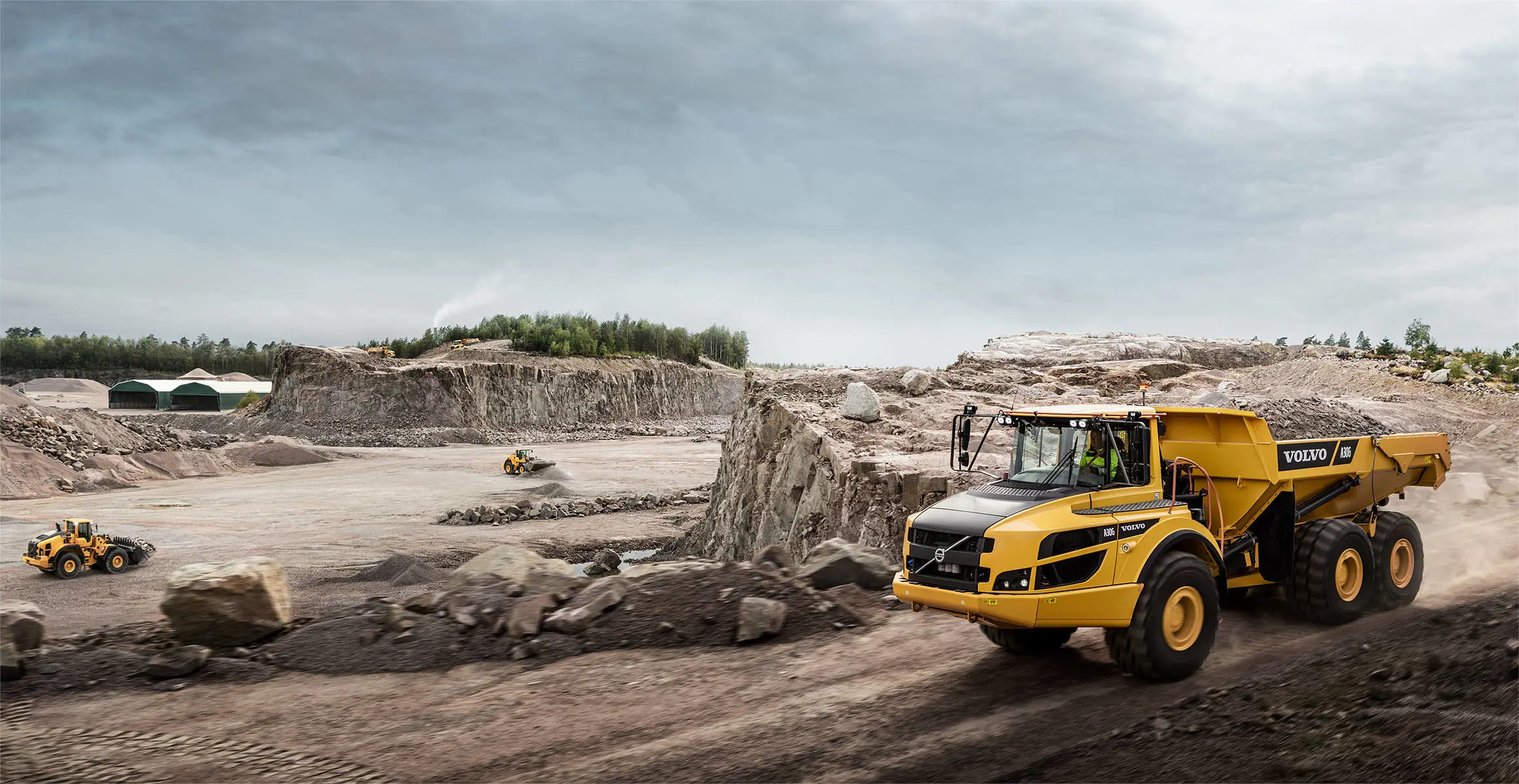

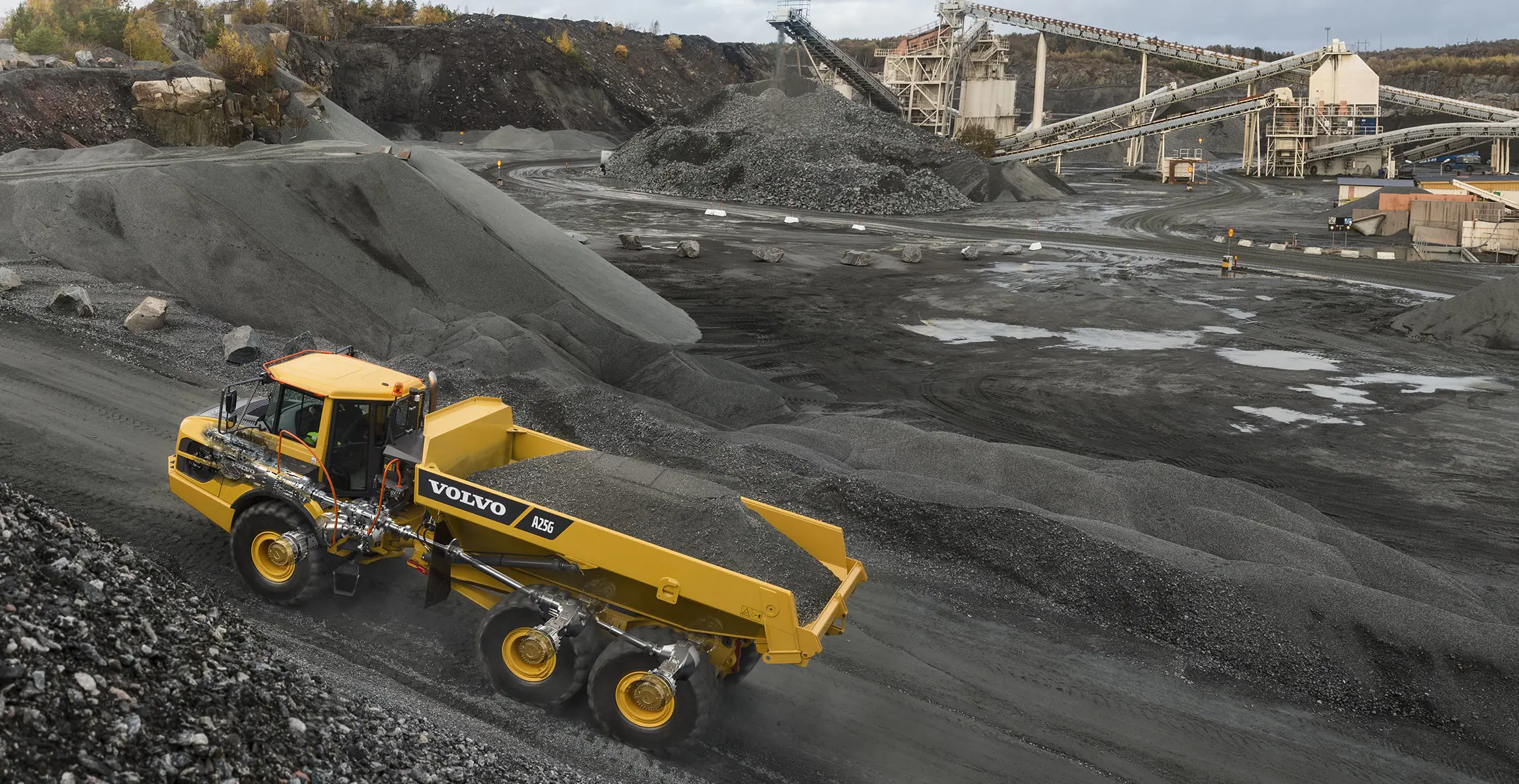

The A25G machine delivers unbeatable off-road performance in its class with features including matched Volvo drivetrain, Automatic Traction Control including 100% differential locks, all-terrain bogie, hydro-mechanical steering.
Features And Benefits
- Fuel Efficiency Guaranteed
- Lifetime Frame & Structure Guarantee (Frame, Articulation/Oscillation Joint)
- Industry-leading service access
- Volvo Dynamic Drive
- Operational data: CareTrack, MATRIS & Optional On Board Weighing System

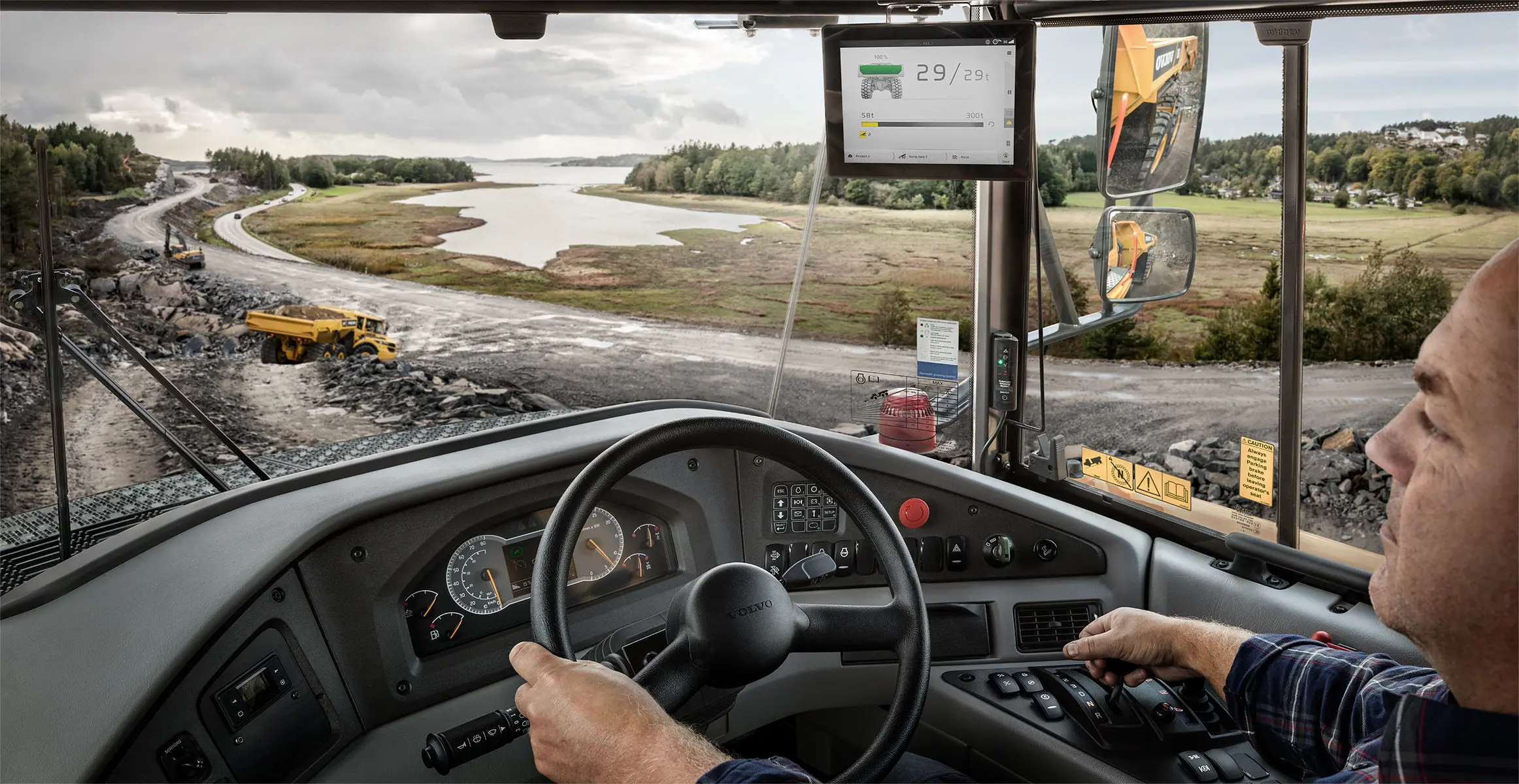

- Prioritized operator control, comfort & safety
Images
Video
Driveline
Engine Manufacturer Volvo
Engine Model D11M
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 659 Inches³ (10.8 ltr)
Rated Speed 2100 rpm
Engine Output - Net 314 hp (234 kW)
Engine Output - Gross 315 hp (235 kW)
Torque 1497 lbf / ft (2030 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type Powershift
Traction Control Yes
Front Differential Locking
Second Axle Differential Locking
Third Axle Differential Locking
Centre Transfer Differential Locking
Tire Size - Standard 23.5 R25
Tire Type - Standard Radial
Front Suspension - Type 3 Point
Front Suspension Gas-Hydraulic Strut
Rear Suspension - Type 3 Point Bogie Beam
Rear Suspension 3 Point
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 33 ft 6 in (10218 mm)
Height - Over Cab 11 ft (3356 mm)
Height - Max 11 ft (3356 mm)
Ground Clearance 18 inches (455 mm)
Width Over Tires 9 ft 7 in (2915 mm)
Width - Transport 9 ft 7 in (2915 mm)
Width - Operating 9 ft 7 in (2915 mm)
Wheelbase 16 ft 5 in (5020 mm)
Length - Body 16 ft 11 in (5162 mm)
Loading Height 9 ft 2 in (2791 mm)
Full Dump Height 21 ft 5 in (6529 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 74 °
Approach Angle 23.5 °
Articulation Angle 45 ± °
Turning Radius - Outside 26 ft 7 in (8109 mm)
Turning Radius - Inside 13 ft 5 in (4092 mm)
Capacities
Fuel Tank 100.4 gallons (US) (380 ltr)
Heaped Capacity 20 yd³ (15.3 m³)
Performance
Cycle Time - Raise 12 s
Unladen Axle Load - Front 28219 lbs (12800 kg)
Unladen Axle Load - Centre 10609.5 lbs (4950 kg)
Unladen Axle Load - Rear 10609.5 lbs (4950 kg)
Unladen Axle Load - Centre + Rear 21219 lbs (9900 kg)
Laden Axle Load - Front 32959 lbs (14950 kg)
Laden Axle Load - Centre 36100.5 lbs (16375 kg)
Laden Axle Load - Rear 36100.5 lbs (16375 kg)
Laden Axle Load - Centre + Rear 72201 lbs (32750 kg)
Front - Unladen 18.9 PSI (130 kPa)
Rear - Unladen 7.1 PSI (49 kPa)
Front - Laden 22.8 PSI (157 kPa)
Rear - Laden 24.1 PSI (166 kPa)
Speed - Forward Maximum 32.7 mph (52.7 kph)
Speed - Reverse Maximum 8.5 mph (13.7 kph)
Weights
Net Weight 50045 lbs (22700 kg)
Payload 55116 lbs (25000 kg)
Gross Weight 105160 lbs (47700 kg)
