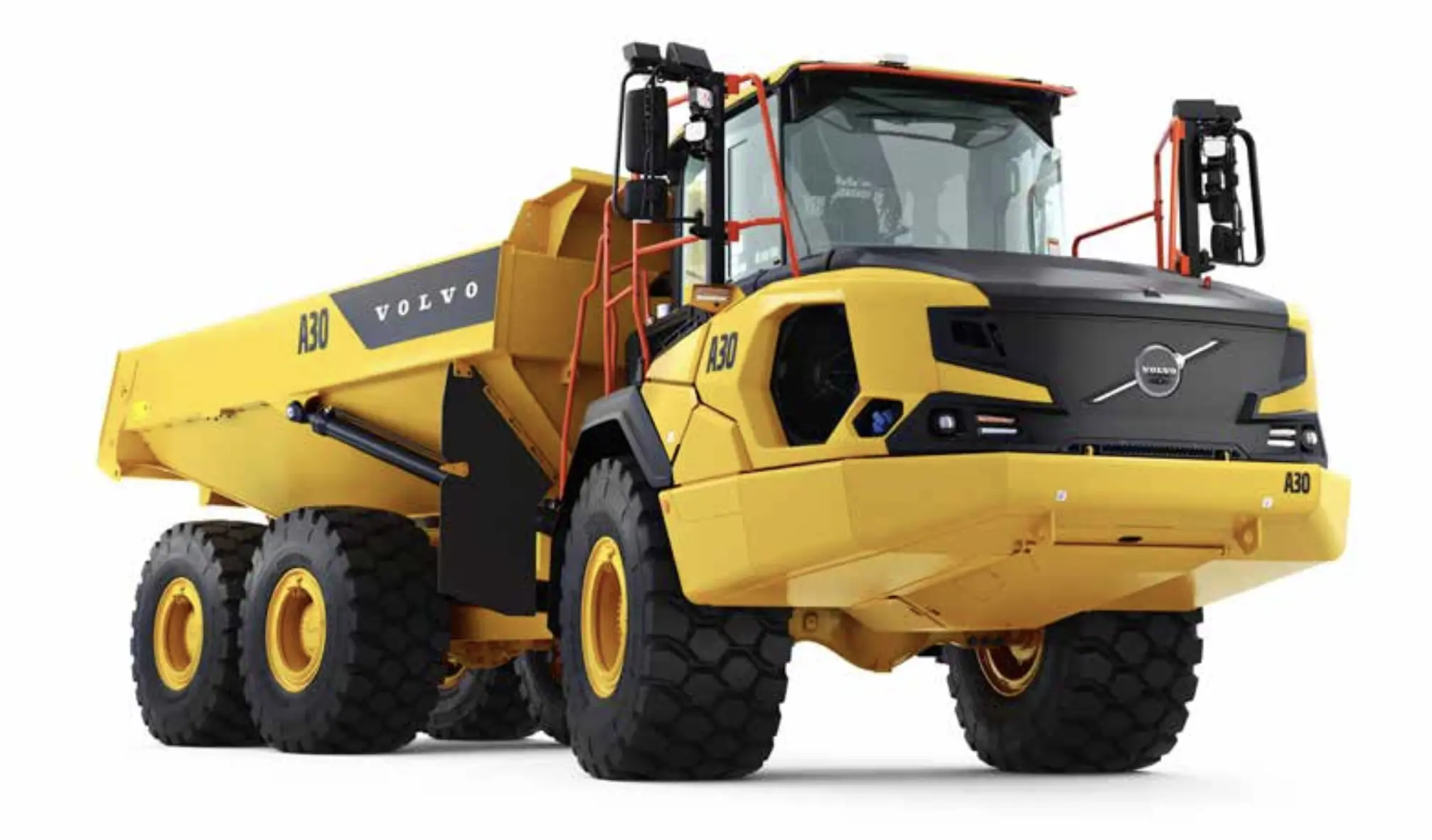

A30J

Description

The best articulated hauler in its class, get ready to take on the most challenging projects across general construction, heavy infrastructure, quarrying and more. With key features including Volvo drivetrain with Terrain Memory, an intuitive operator interface, visibility which exceeds industry standards, superior durability and lower maintenance costs; count on the A30 Volvo Articulated Hauler to deliver exceptional off-road performance, operator comfort and maximum uptime.

Features And Benefits
  • Proven Volvo drivetrain
  • Redesigned hood and cab panels
  • Durable gas-hydraulic suspension
  • 1 000-hour engine service intervals
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D11M
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 659 Inches³ (10.8 ltr)
Rated Speed 2100 rpm
Engine Output - Gross 355 hp (265 kW)
Torque 1505 lbf / ft (2040 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type PowerTronic
Traction Control Yes
Front Differential Locking
Second Axle Differential Locking
Third Axle Differential Locking
Tire Size - Standard 750 / 65 R25
Tire Type - Standard Radial
Front Suspension - Type 3 Point
Front Suspension Gas-Hydraulic Strut
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 33 ft 11 in (10344 mm)
Height - Over Cab 11 ft 2 in (3406 mm)
Height - Max 11 ft 2 in (3406 mm)
Ground Clearance 21 inches (527 mm)
Width Over Tires 9 ft 8 in (2991 mm)
Width - Transport 9 ft 8 in (2991 mm)
Width - Operating 11 ft 4 in (3457 mm)
Wheelbase 16 ft 9 in (5109 mm)
Length - Body 17 ft 8 in (5382 mm)
Loading Height 9 ft 6 in (2906 mm)
Full Dump Height 21 ft 6 in (6559 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 70 °
Articulation Angle 45 ± °
Turning Radius - Outside 26 ft 10 in (8175 mm)
Turning Radius - Inside 13 ft 9 in (4190 mm)
Capacities
Fuel Tank 100.4 gallons (US) (380 ltr)
Heaped Capacity 23.3 yd³ (17.8 m³)
Performance
Cycle Time - Raise 12 s
Unladen Axle Load - Front 29760 lbs (13500 kg)
Unladen Axle Load - Rear 24690 lbs (11200 kg)
Laden Axle Load - Front 35050 lbs (15900 kg)
Laden Axle Load - Rear 83340 lbs (37800 kg)
Front - Unladen 19 PSI (131 kPa)
Rear - Unladen 7.5 PSI (52 kPa)
Front - Laden 22.9 PSI (158 kPa)
Rear - Laden 27.7 PSI (186 kPa)
Speed - Forward Maximum 32.7 mph (53 kph)
Speed - Reverse Maximum 8.5 mph (14 kph)
Weights
Net Weight 54450 lbs (24700 kg)
Payload 63930 lbs (29000 kg)
Gross Weight 118390 lbs (53700 kg)
