L220
Description

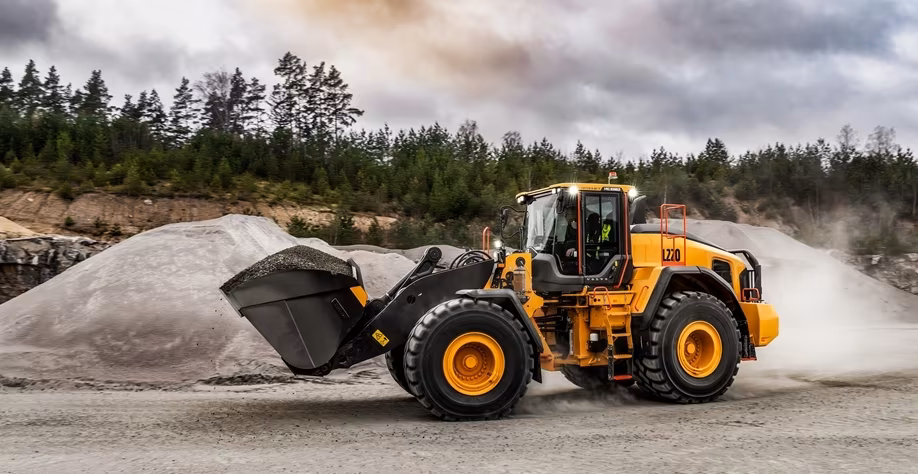

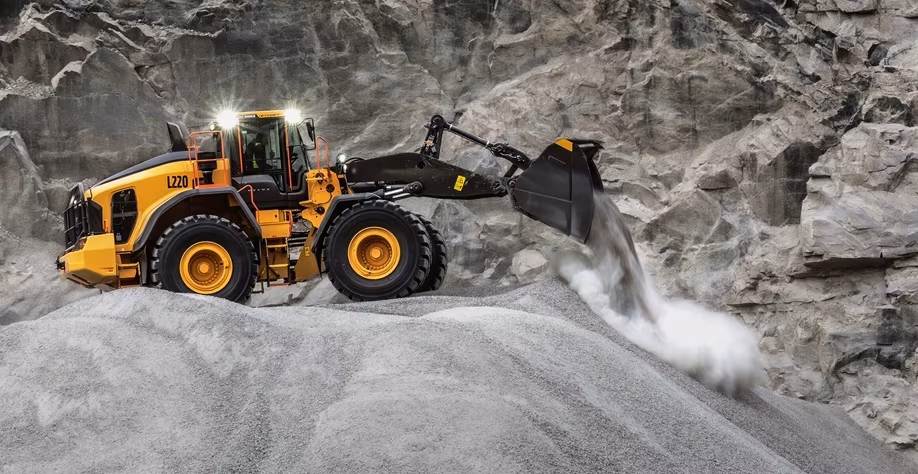

From rehandling and quarrying to bulk material handling, the Volvo L220 Wheel Loader is designed to deliver unmatched efficiency and power. Featuring faster cycle times, an unrivalled operator environment, and Volvo quality, durability and safety you can depend on, this is a machine which delivers maximum uptime and performance in the toughest of conditions. What’s more, a host of Volvo solutions including Load Assist, On-Board Weighing and Load Ticket further help optimize every load, ensuring maximum efficiency and profitability in your operations.
Features And Benefits
- The second generation load sensing hydraulics are designed to enhance the responsiveness of the hydraulic system and improve the lifting and lowering speed of the boom.

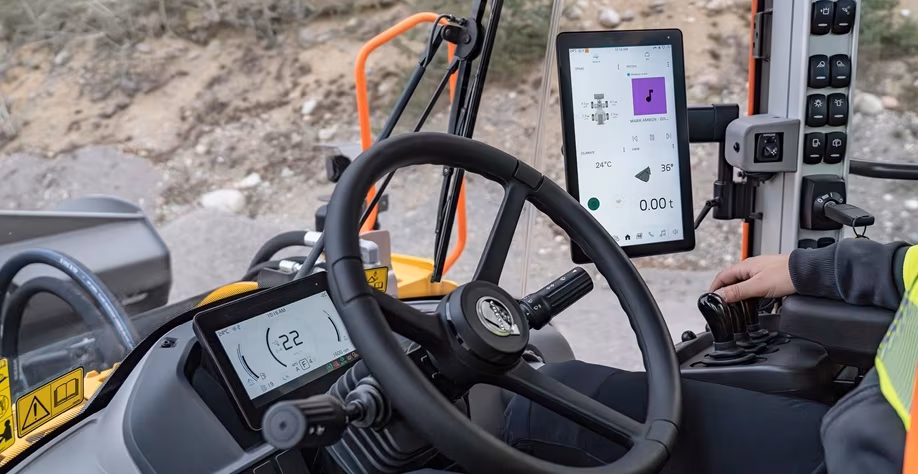

- Operators can stay in-the-know and focused on the task at hand thanks to all essential in-cab information conveniently displayed on just two screens.
- Quality is synonymous with the Volvo brand, and has been central to the products we engineer and produce for more than 175 years; that is why we are passing that on to you through the Lifetime Frame and Structure Warranty.
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D13J
After Treatment System Diesel Oxidation Catalyst
Aspiration Turbo Charger and Intercooled
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1300 rpm
Engine Output - Net 374 hp (279 kW)
Torque 1671 lbf / ft (2265 Nm)
Transmission Type Automatic Power Shift
Traction Control No
Tire Size 29.5 R25
Service Brake - Type Wet Disc
Dimensions
Wheelbase 12 ft 2 in (3700 mm)
Length With Bucket On Ground 30 ft 1.4 in (9180 mm)
Height - Over Cab 12 ft 2 in (3710 mm)
Ground Clearance 20 inches (520 mm)
Width Over Tires - Std 10 ft 4 in (3150 mm)
Bucket Type GP w/Bolt-on Edge
Bucket Width 11 ft 1.8 in (3400 mm)
Full Lift Dump Height 10 ft 7 in (3220 mm)
Full Lift Reach 4 ft 7 in (1340 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 48 °
Height - Pivot Pin 15 ft 3 in (4640 mm)
Height - Maximum 20 ft 11 in (6370 mm)
Turn Radius Over Bucket - Std. 25 ft 10 in (7880 mm)
Capacities
Fuel Tank 96.7 gallons (US) (366 ltr)
Heaped Capactiy 6.8 yd³ (5.2 m³)
Smallest Bucket Capacity 6.5 yd³ (5 m³)
Largest Bucket Capacity 10.7 yd³ (8.2 m³)
Performance
Straight Tipping Load 54403 lbs (23770 kg)
Full Turn Tipping Load 45980 lbs (20850 kg)
Bucket Breakout 54150 lbf (241 kN)
Oscillation - Rear Axle 30 °
Load Sensing Yes
Weights
Bucket Capacity 6.5-10.7 yd³ (5-8.2 m³)
Operating Weight 69560 lbs (31550 kg)
