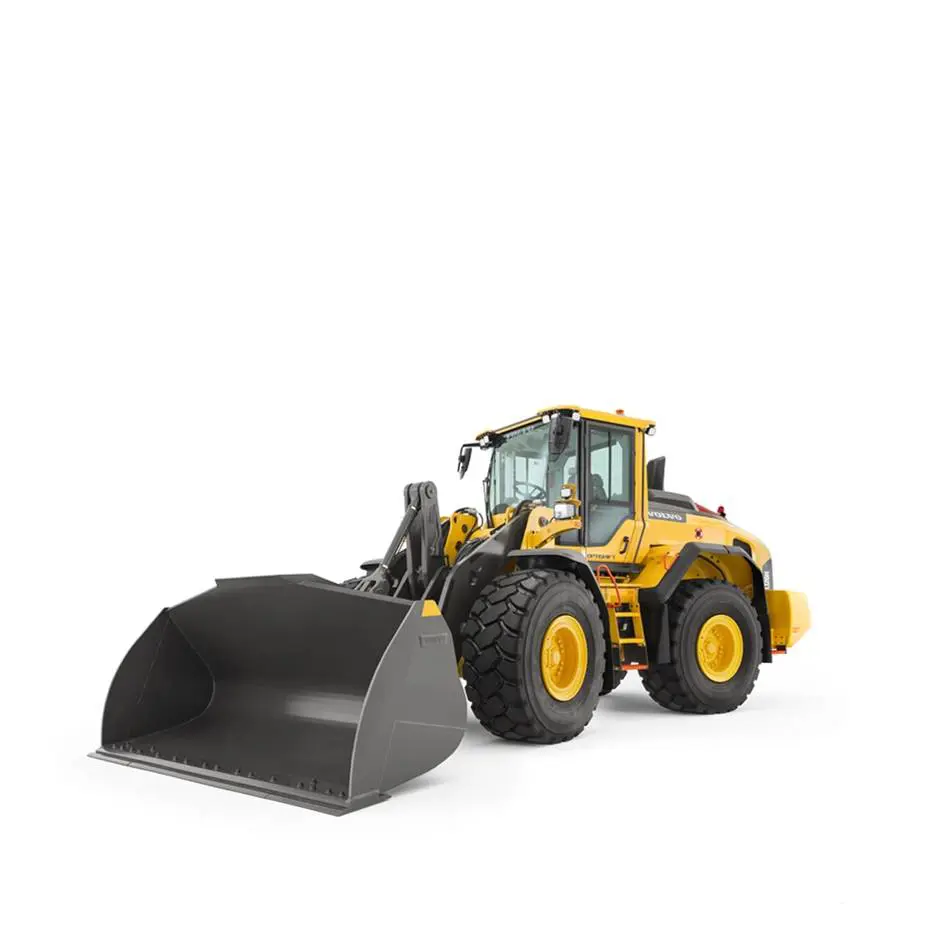

L120H
d33dc6d9-0f6f-421c-a3bc-26c69c6f54b6
Description
The Volvo L120H loader is built with state-of-the-art technology to increase your productivity and profitability. The ideally-matched, all-Volvo powertrain has been built to work together in perfect harmony – delivering the power, performance and reliability you expect from Volvo.
Features And Benefits
- Wide range of attachments

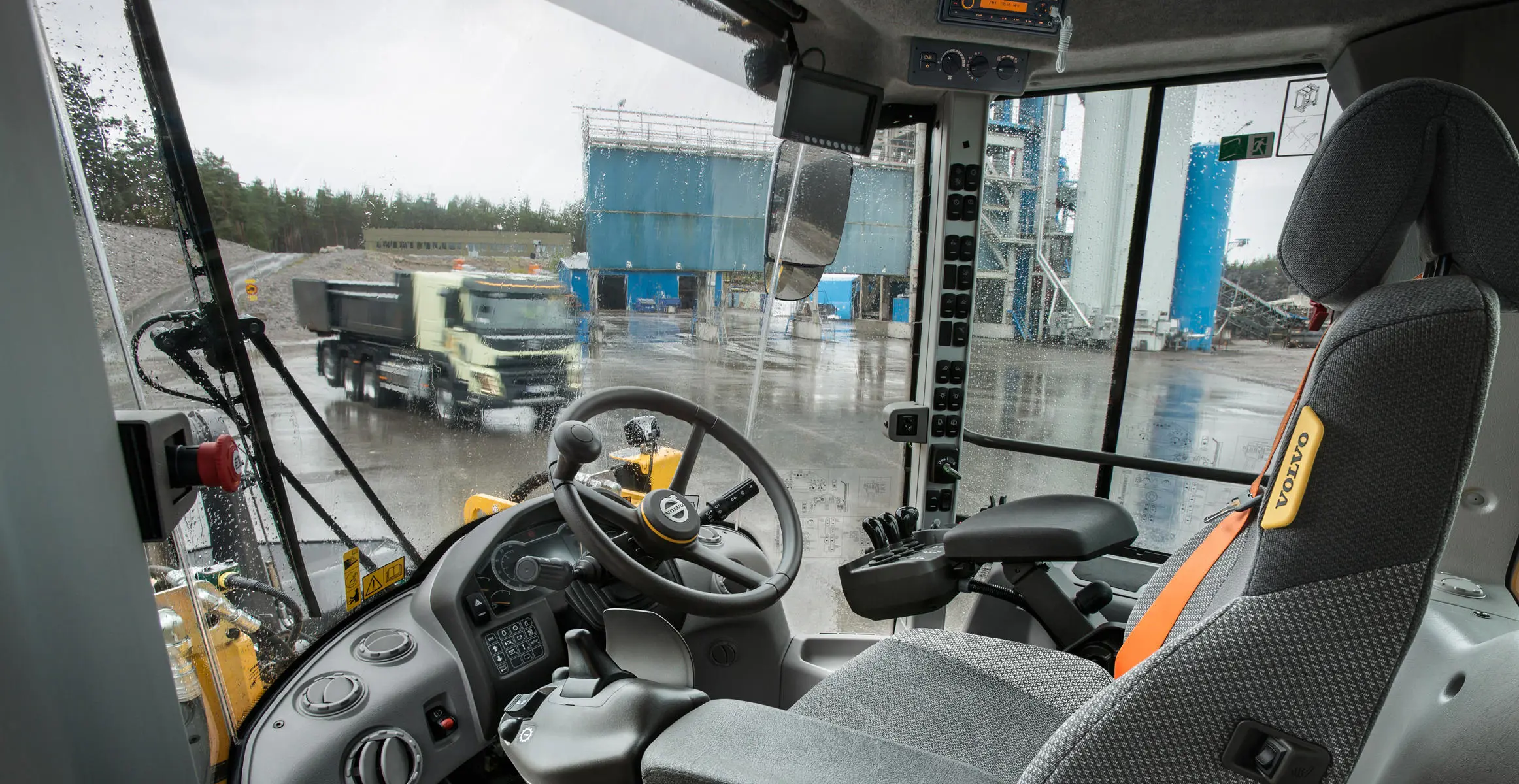

- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls
- Outstanding serviceability
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)

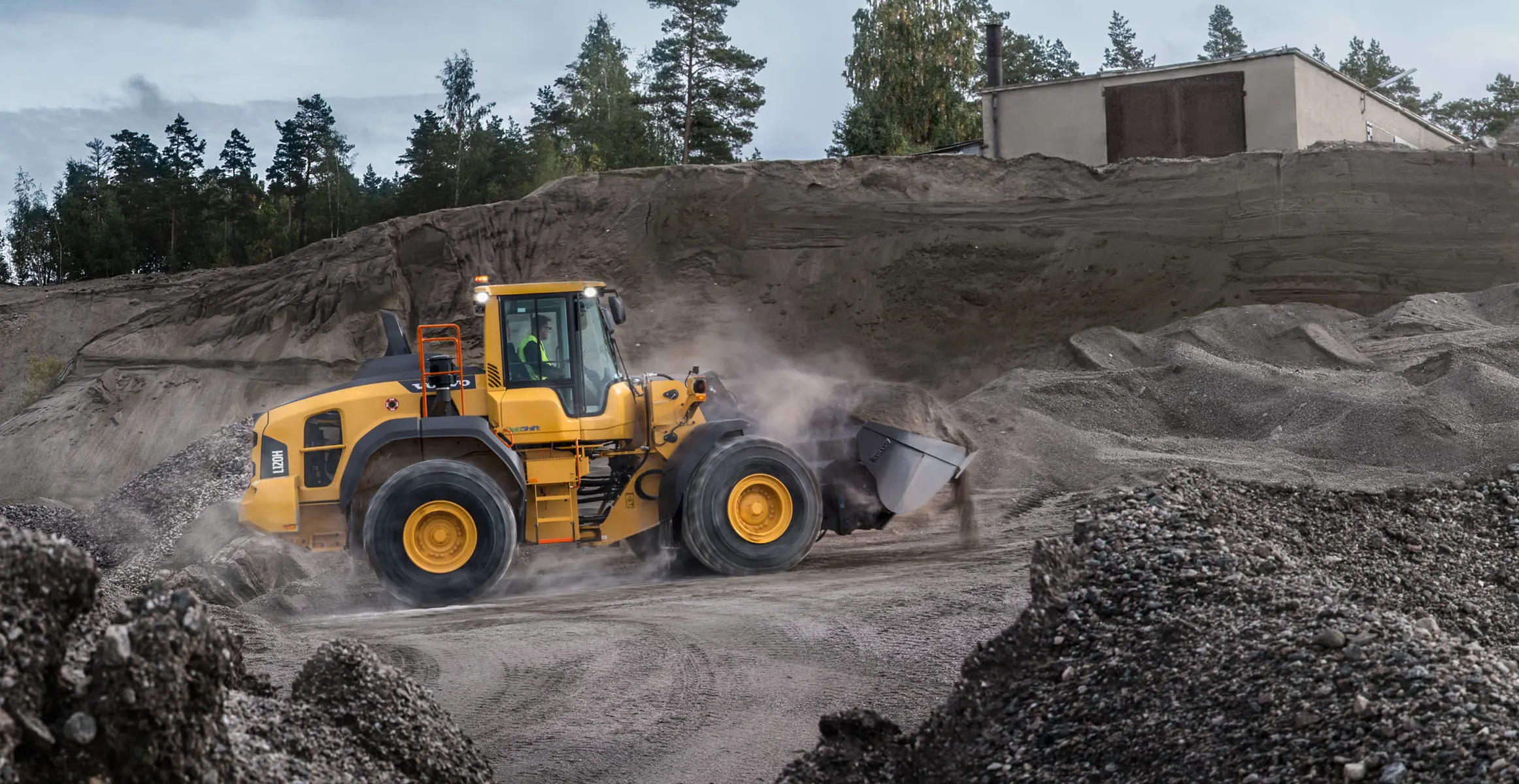

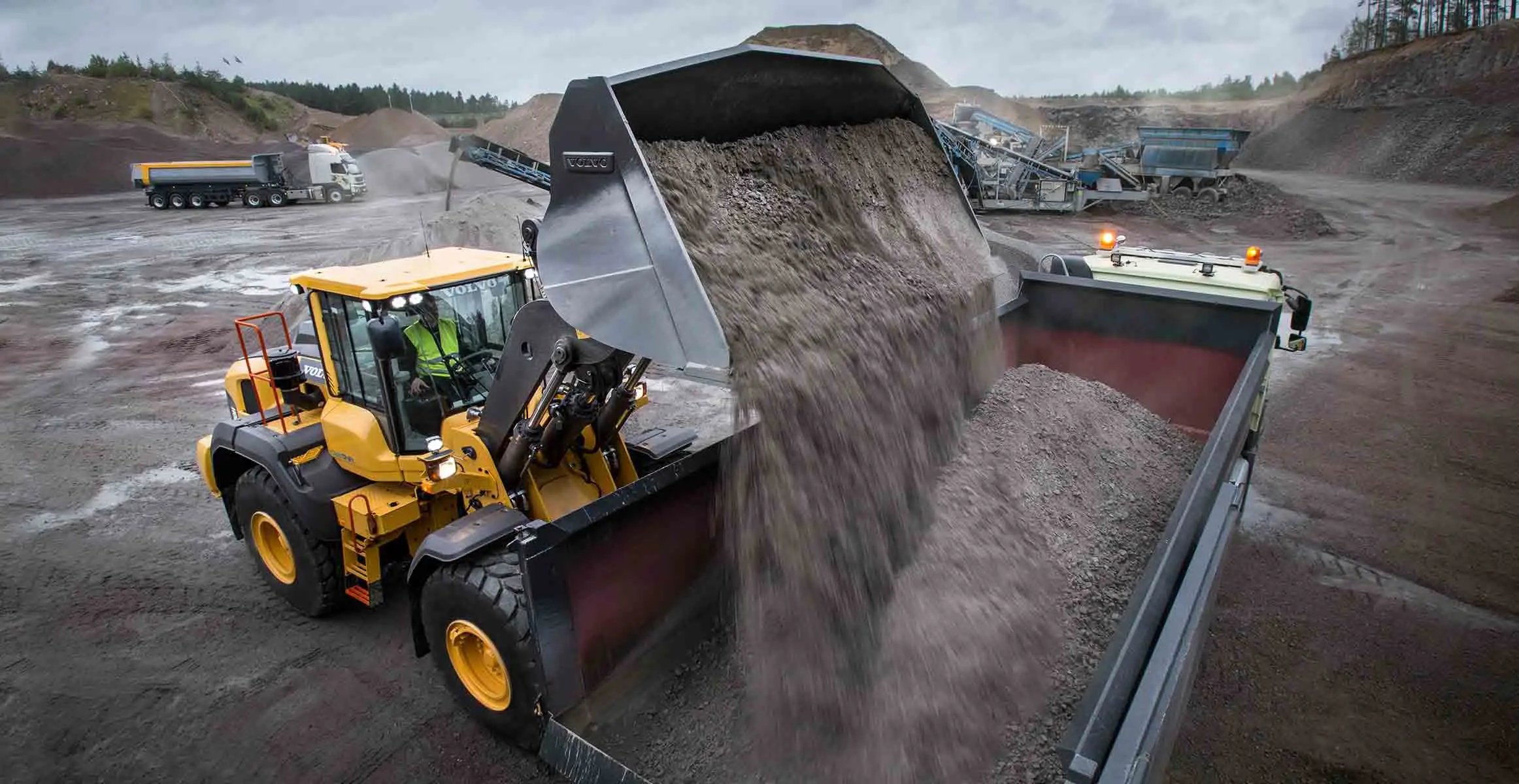

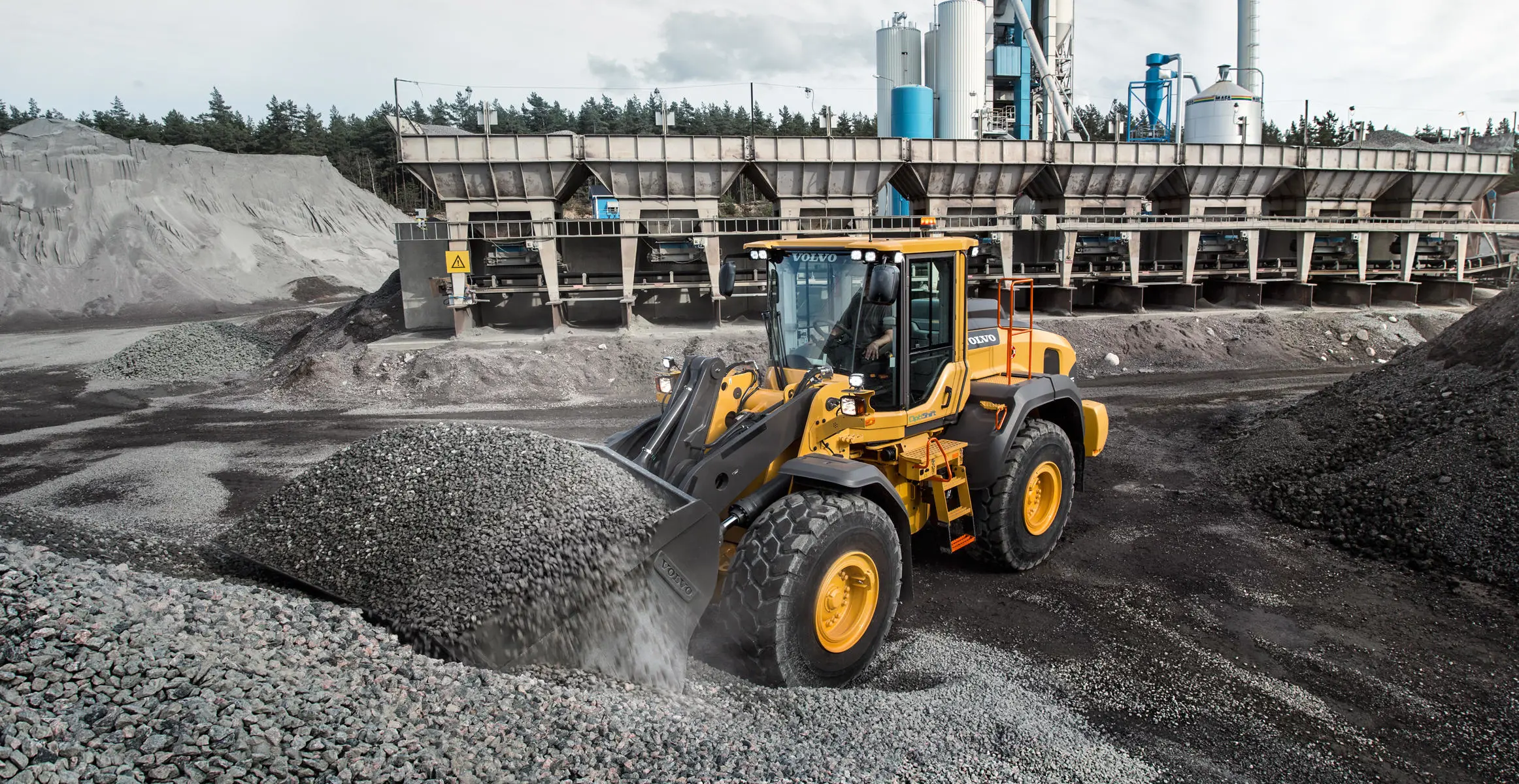

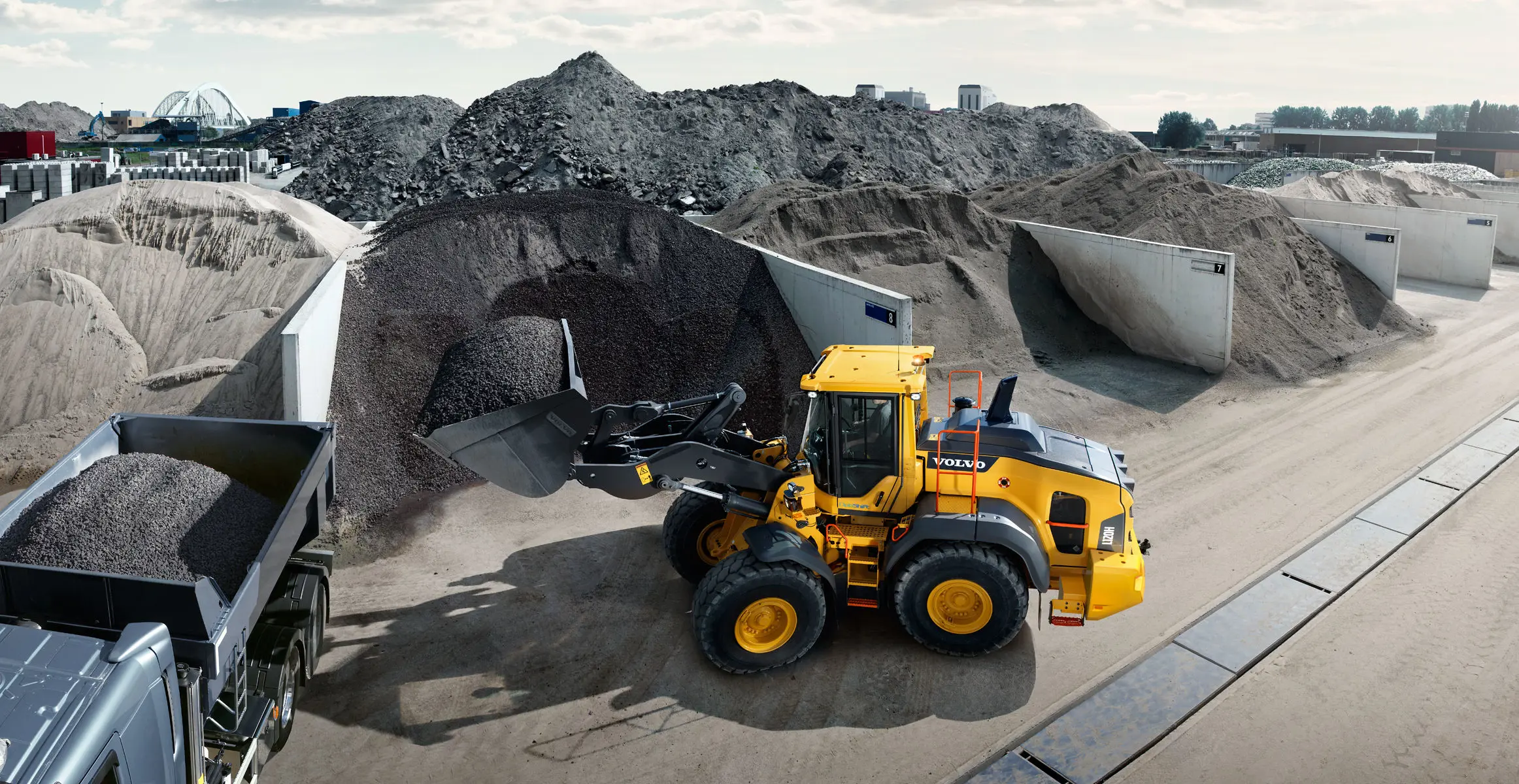

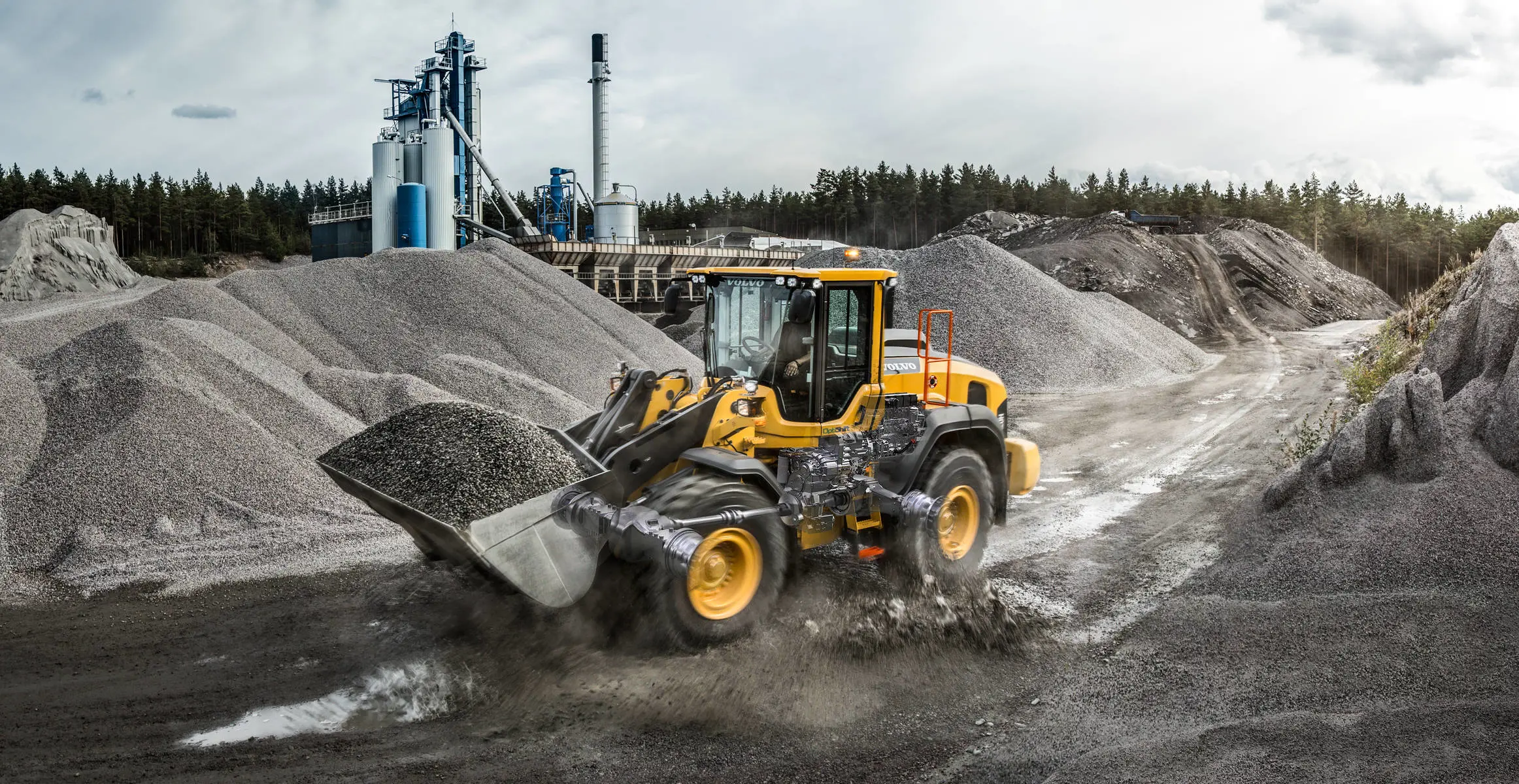

Images
Driveline
Engine Manufacturer Volvo
Engine Model D8J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Particulate Filter
Aspiration Turbo - Charge Air Cooled
Displacement 473 Inches³ (7.8 ltr)
Rated Speed 1500 rpm
Engine Output - Gross 272 hp (203 kW)
Engine Output - Net 272 hp (203 kW)
Torque 974 lbf / ft (1320 Nm)
Transmission Type Powershift
Traction Control No
Tire - Manufacturer Michelin
Tire Size - Standard 23.5 R25
Tyre - Model XHA 2
Service Brake - Type Wet Disc
Dimensions
Wheelbase 10 ft 6 in (3200 mm)
Length With Bucket On Ground 27 ft 4 in (8340 mm)
Height - Over Cab 11 ft 1 in (3380 mm)
Ground Clearance 17 inches (440 mm)
Width Over Tires - Std 8 ft 9 in (2670 mm)
Bucket Type GP w/Edge
Bucket Width 9 ft 10 in (3000 mm)
Full Lift Dump Height 8 ft 10 in (2700 mm)
Full Lift Reach 4 ft 7 in (1390 mm)
Loader - Geometry Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 50 °
Height - Pivot Pin 13 ft 5 in (4100 mm)
Height - Maximum 18 ft 11 in (5760 mm)
Turn Radius Over Bucket - Std. 21 ft 3 in (6475 mm)
Capacities
Fuel Tank 71.3 gallons (US) (270 ltr)
Heaped Capactiy 4.3 yd³ (3.3 m³)
Bucket Capacity - Smallest 4.3 yd³ (3.3 m³)
Largest Bucket Capacity 12.4 yd³ (9.5 m³)
Performance
Straight Tipping Load 31870 lbs (14450 kg)
Full Turn Tipping Load 28210 lbs (12790 kg)
Breakout - Bucket 39010 lbf (17695 kgf)
Bucket Breakout 39010 lbf (173.5 kN)
Ride Control System Yes
Oscillation - Rear Axle 26 °
Load Sensing Yes
Weights
Bucket Capacity 4.3-12.4 yd³ (3.3-9.5 m³)
Operating Weight 40930 lbs (18560 kg)
