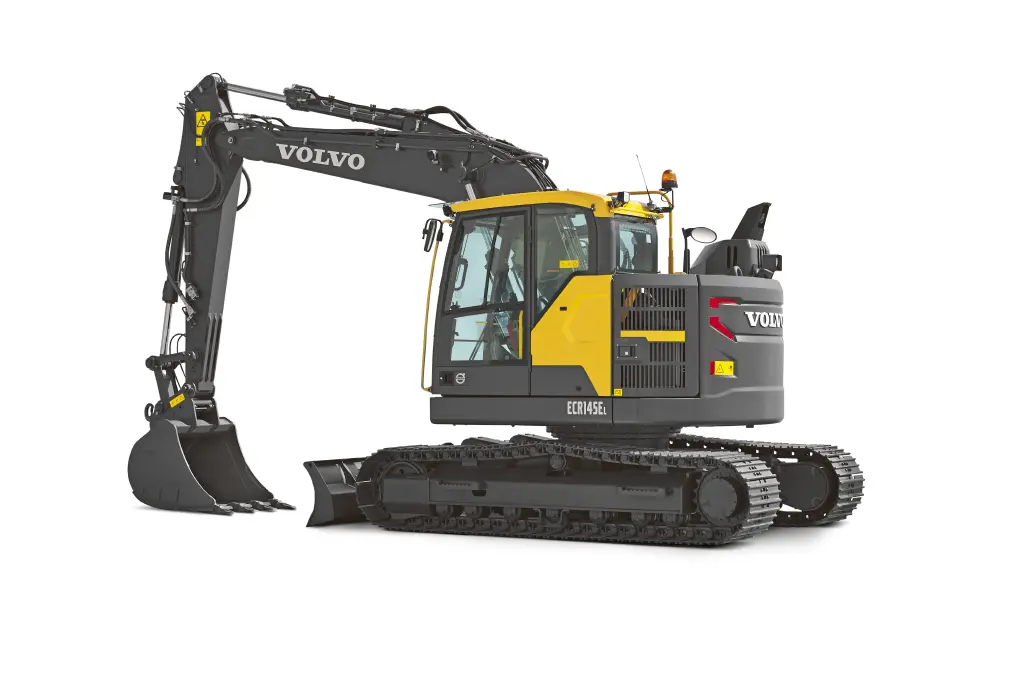

ECR145E
d3ed144b-49fb-426a-aeab-1b9941e7d99f
Description

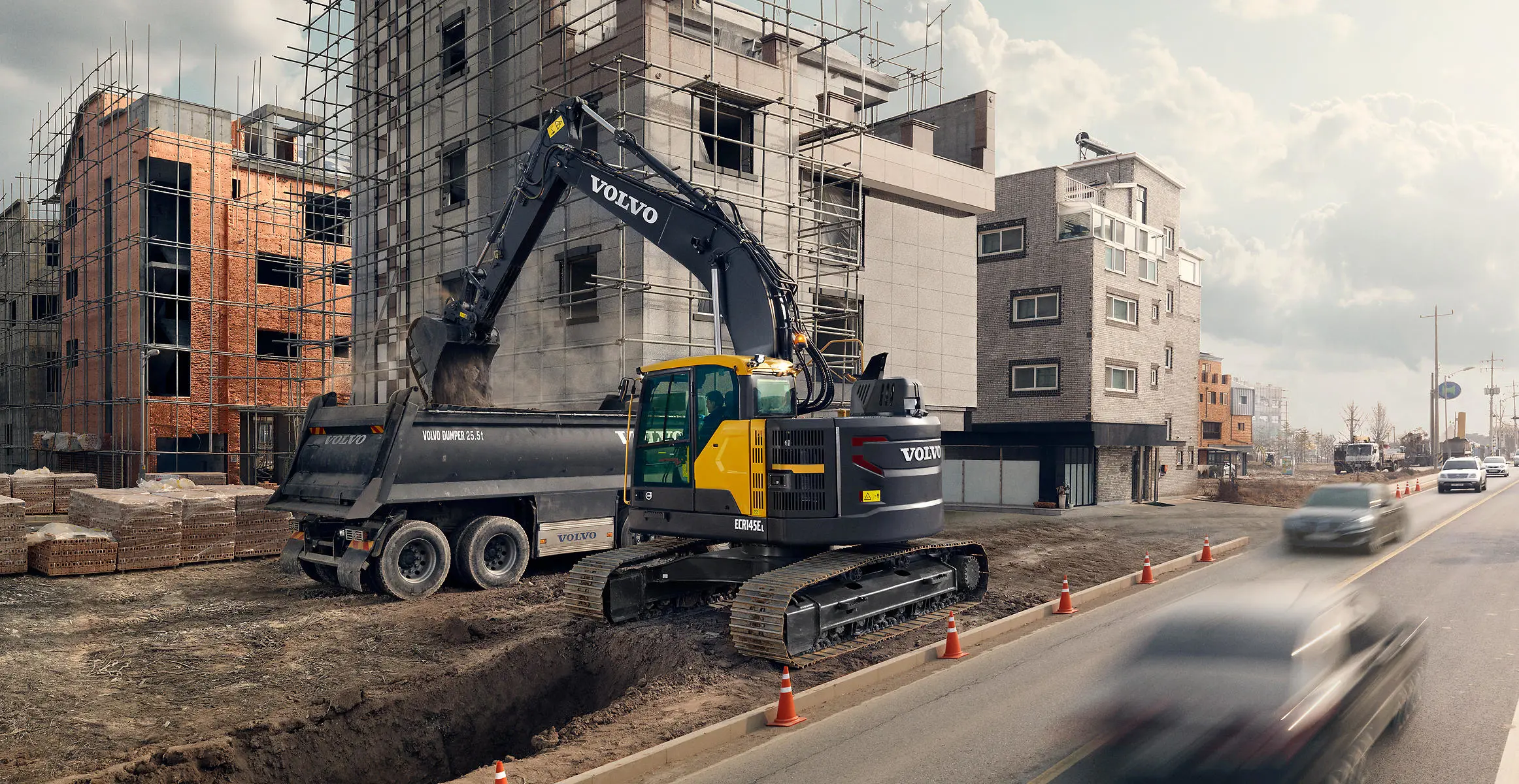

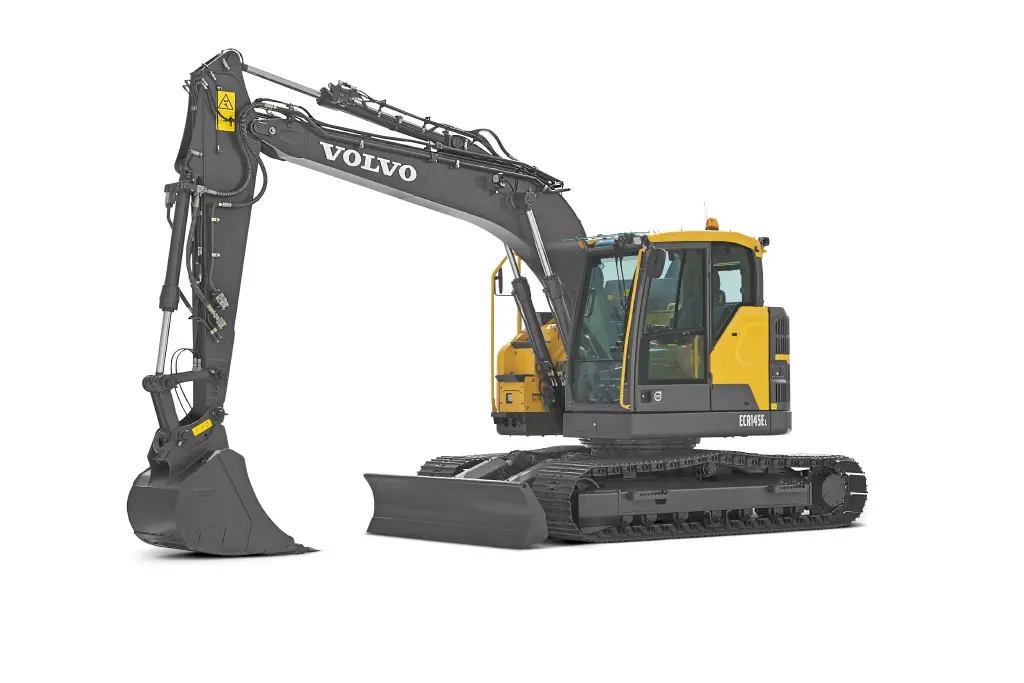

COMPACT DESIGN
The optimized compact design of the ECR145E Excavator offers a short swing radius for operating in confined spaces without compromising on performance. The machine's Tier 4 Final/Stage IV engine and enhanced hydraulics system results in smoother operation and increased productivity.
Features And Benefits

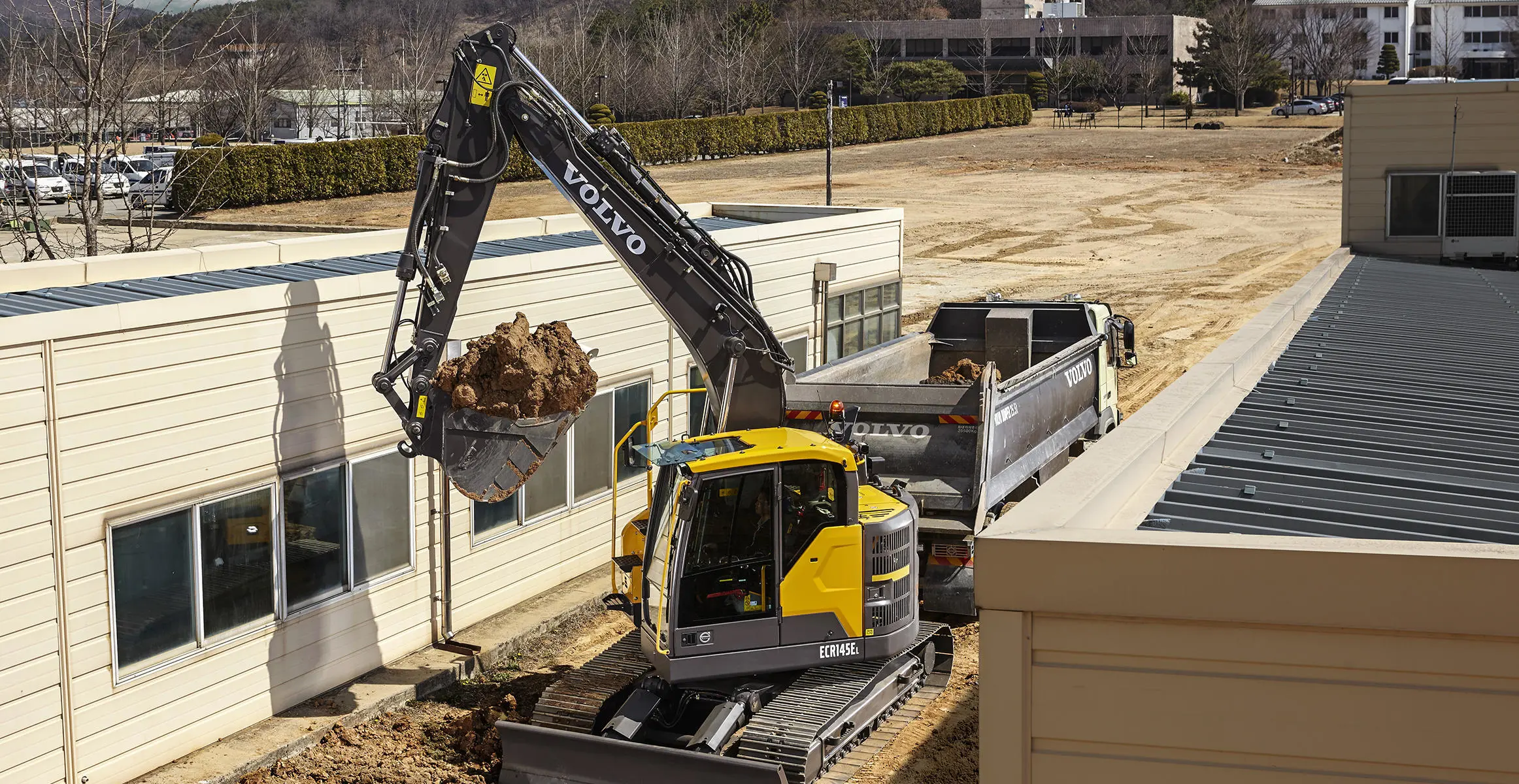

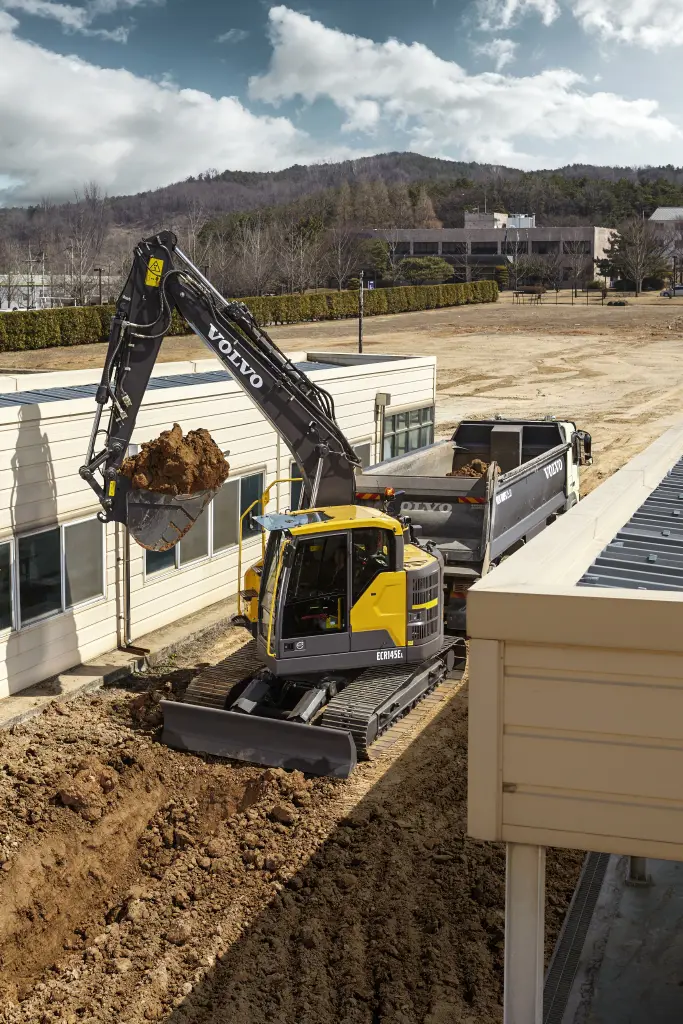

- SHORT SWING RADIUS
- The short swing radius design allows safe and concise operation in confined spaces.

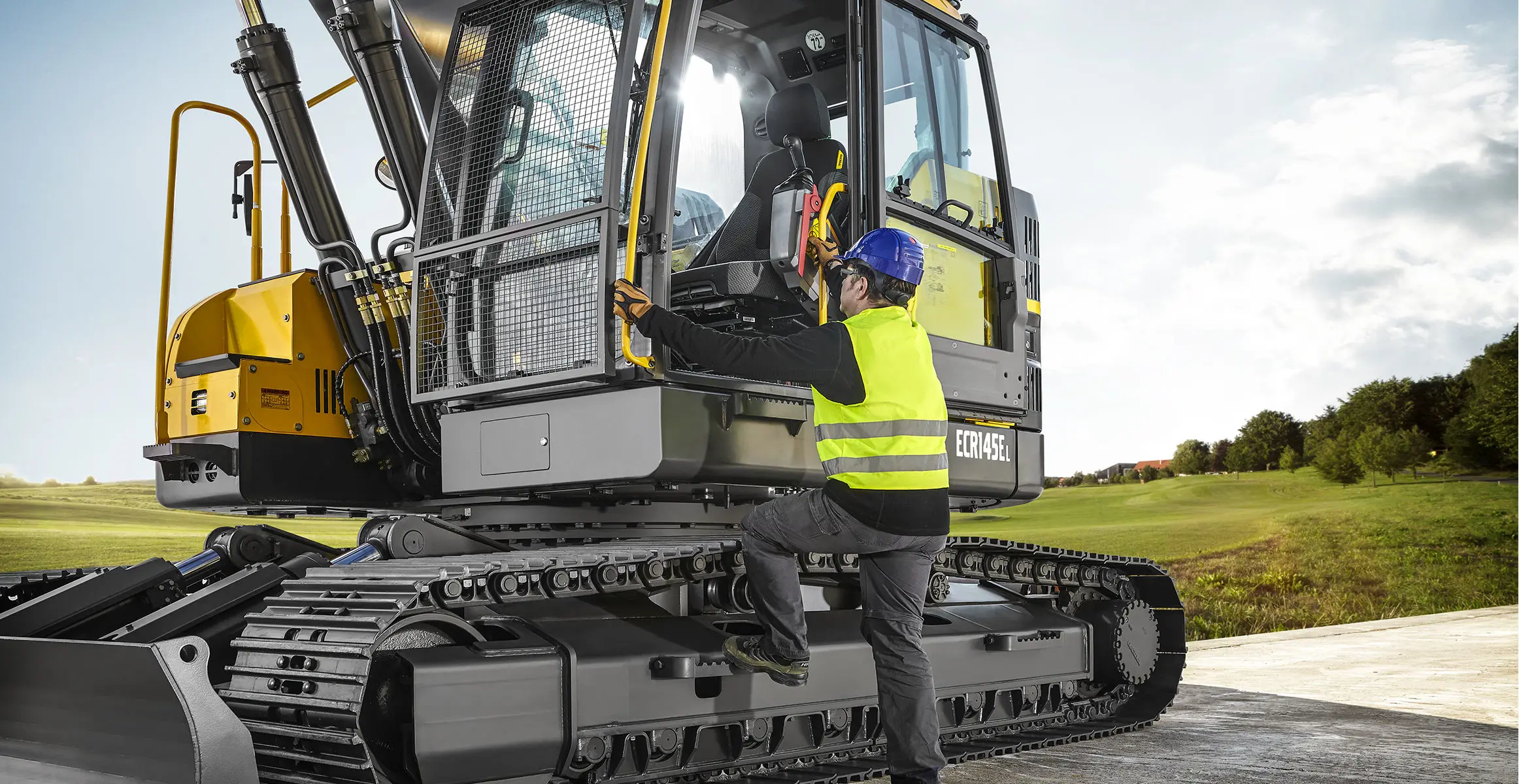

- COMFORT CAB
- The newly designed ROPS-certified cab has improved all-round visibility, more space and ergonomic controls.
- ENHANCED HYDRAULICS
- The hydraulics system, fully electronic control system and advanced ECO mode, result in better fuel efficiency and productivity.

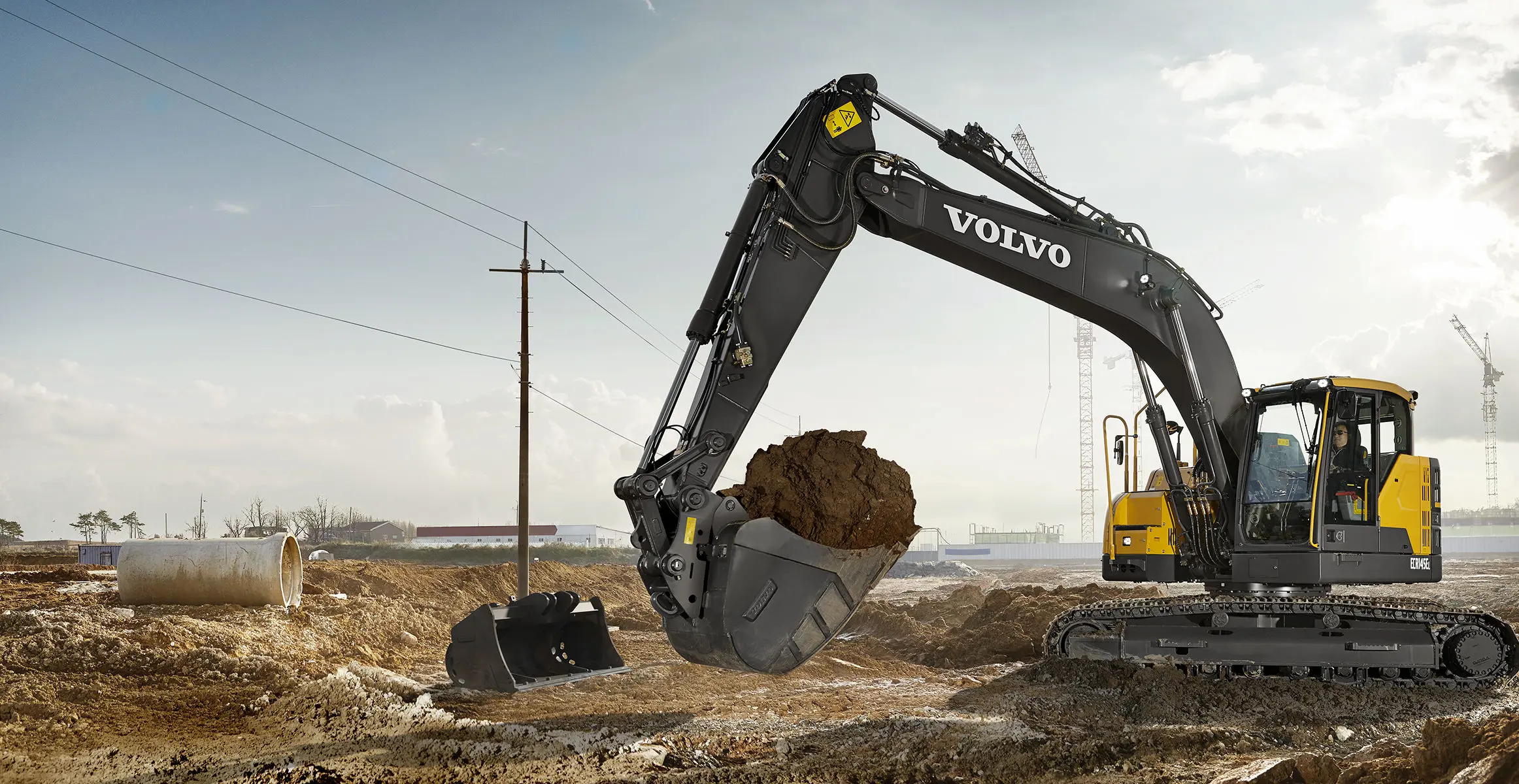

- BUCKETS
- Volvo's buckets are the perfectly matched tool for digging and re-handling in all working conditions.
- CUSTOMER SUPPORT AGREEMENTS
- Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services
Images
Video
Description
Standard Arm Length 9 ft 10 in (3000 mm)
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D4J
Displacement 244 Inches³ (4 ltr)
Rated Speed 2000 rpm
Engine Output - Net 119 hp (89 kW)
Engine Output - Gross 121 hp (90 kW)
Number Of Track Rollers - Each Side 7
Track Shoe Width 24 inches (600 mm)
Dimensions
Bucket Capacity 0.33-1.01 yd³ (0.25-0.77 m³)
Bucket Weight 729-1193 lbs (330-541 kg)
Transport Length Mono Boom 24 ft 1 in (7345 mm)
Max Transport Height 10 ft 8 in (3250 mm)
Max Machine Width 8 ft 6 in (2590 mm)
Track Length On Ground 10 ft (3040 mm)
Zero Tailswing No
Heaped Bucket Capacity 0.86 yd³ (0.66 m³)
Variable Undercarriage Availability No
Ground Level Reach 28 ft 7 in (8720 mm)
Dig Height 32 ft 4 in (9860 mm)
Dump Height - Mono Boom 24 ft (7310 mm)
Dig Depth 19 ft 9 in (6030 mm)
Capacities
Fuel Tank 53 gallons (US) (200 ltr)
Performance
Ground Bearing Pressure 5.4 PSI (37 kPa)
Arm Tearout 13430 lbf (59.8 kN)
Bucket Breakout 21720 lbf (96.6 kN)
Number Of Main Pumps 2
Main Pump - Flow 66 gallons (US) / min (248 lt/min)
Weights
Operating Weight 33560 lbs (15180 kg)
