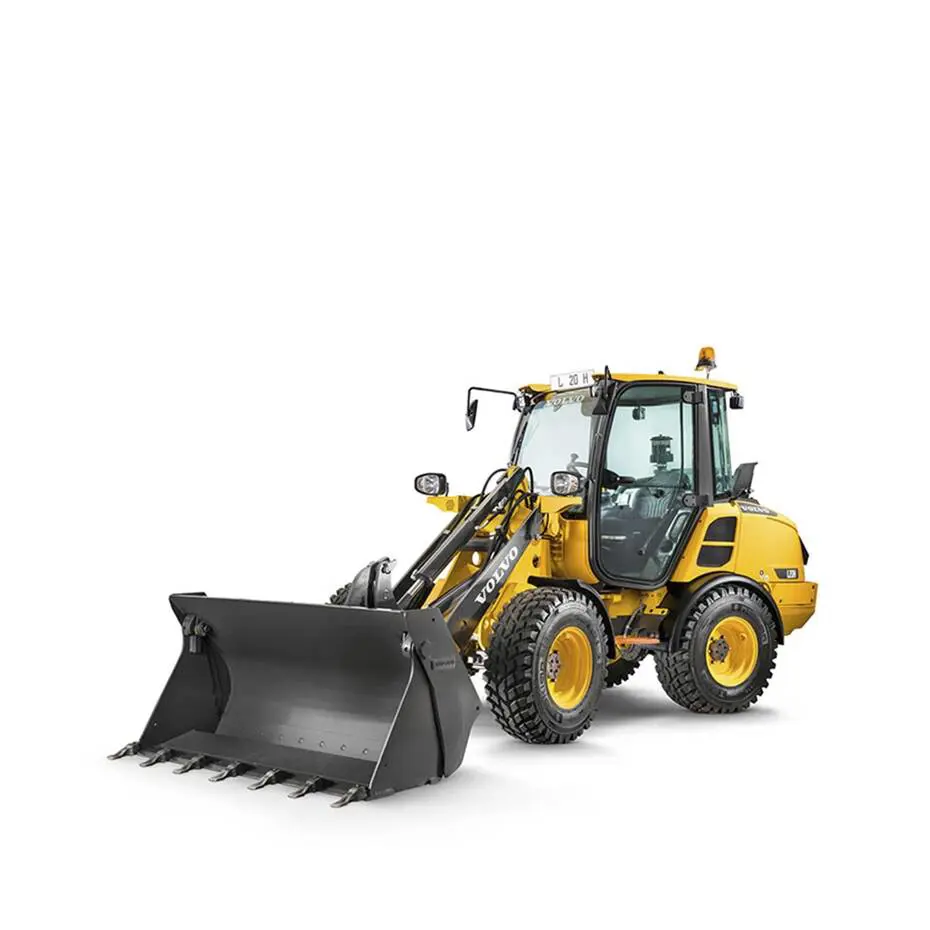

L20H
dad5a4c7-7b47-4c2c-9f7b-5f904576b6f2
QUALITY PERFORMANCE
Description
Get the job done better and faster with the L20H, bringing you quality as standard and excellent stability. Operate from the comfort of the Volvo Care Cab, offering all-around visibility for efficient and productive work.
Features And Benefits
- 2019 EquipmentWatch Highest Retained Value Award
- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls
- Outstanding serviceability

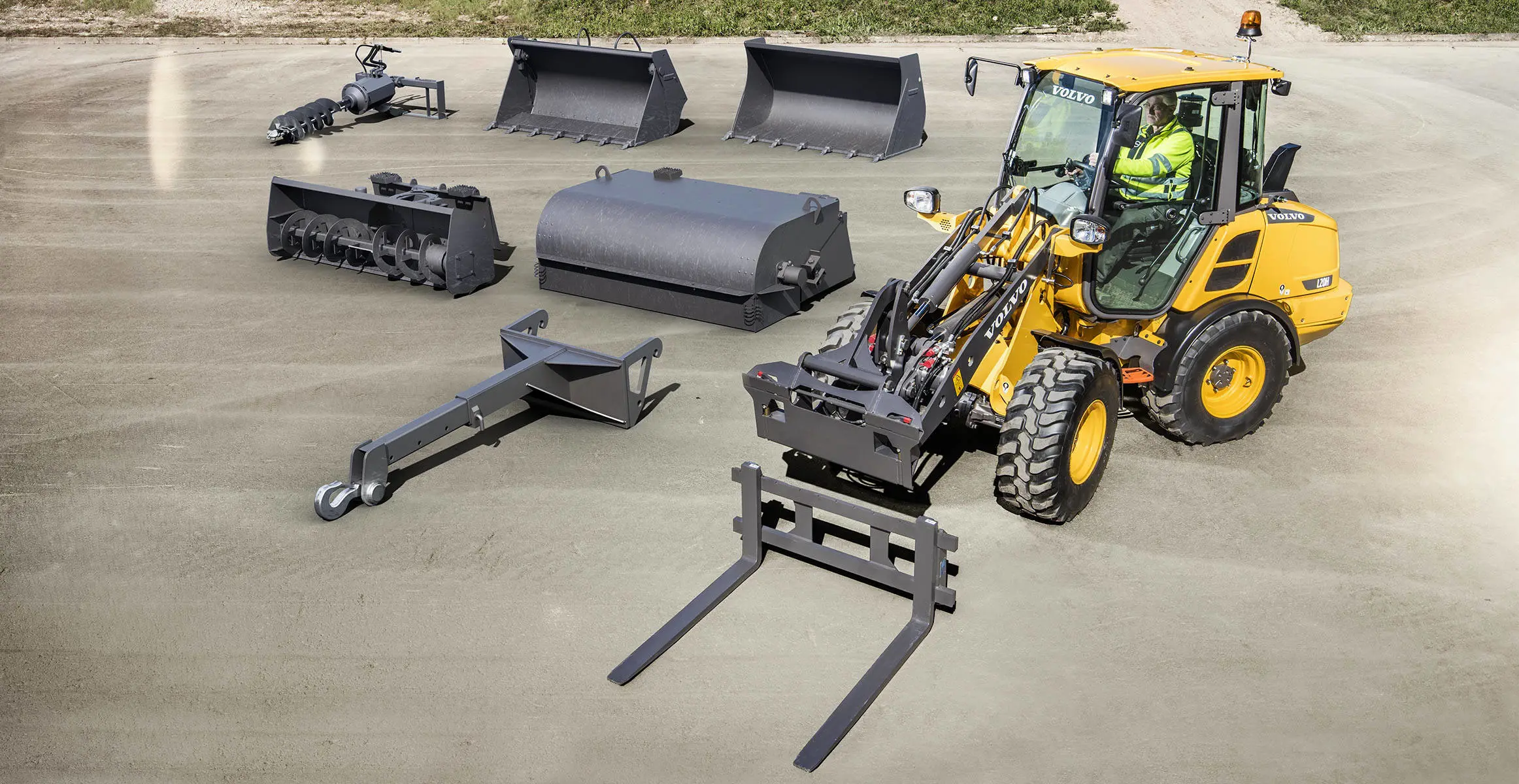

- Wide range of attachments
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D2.6M
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Oxidation Catalyst
Aspiration Turbo
Displacement 160 Inches³ (2.62 ltr)
Rated Speed 2400 rpm
Engine Output - Gross 64.4 hp (48 kW)
Engine Output - Net 63.4 hp (47.3 kW)
Torque 166 lbf / ft (225 Nm)
Transmission Type Hydrostatic
Tire Size - Standard 335 / 80 R18
Hydrostatic System Braking Yes
Hydrostatic Brake - Actuation All Wheels
Service Brake - Type Disc
Dimensions
Wheelbase 6 ft 9 in (2050 mm)
Length With Bucket On Ground 16 ft 6 in (5035 mm)
Height - Over Cab 8 ft 2 in (2485 mm)
Ground Clearance 11 inches (290 mm)
Width Over Tires - Std 5 ft 4 in (1630 mm)
Bucket Type GP w/Edge
Bucket Width 5 ft 5 in (1650 mm)
Full Lift Dump Height 8 ft 3 in (2520 mm)
Full Lift Reach 2 ft 1 in (640 mm)
Loader - Geometry Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 45 °
Height - Pivot Pin 10 ft 4 in (3140 mm)
Height - Maximum 13 ft 4 in (4065 mm)
Turn Radius Over Bucket - Std. 13 ft 5.5 in (4102.5 mm)
Capacities
Fuel Tank 15.8 gallons (US) (60 ltr)
Heaped Capactiy 0.9 yd³ (0.7 m³)
Bucket Capacity - Smallest 0.85 yd³ (0.65 m³)
Largest Bucket Capacity 1.3 yd³ (1 m³)
Performance
Straight Tipping Load 7385 lbs (3350 kg)
Full Turn Tipping Load 6614 lbs (3000 kg)
Breakout - Bucket 6969 lbf (3161 kgf)
Bucket Breakout 7868 lbf (35 kN)
Ride Control System Optional
Weights
Bucket Capacity 0.85-1.3 yd³ (0.65-1 m³)
Operating Weight 9877 lbs (4480 kg)
