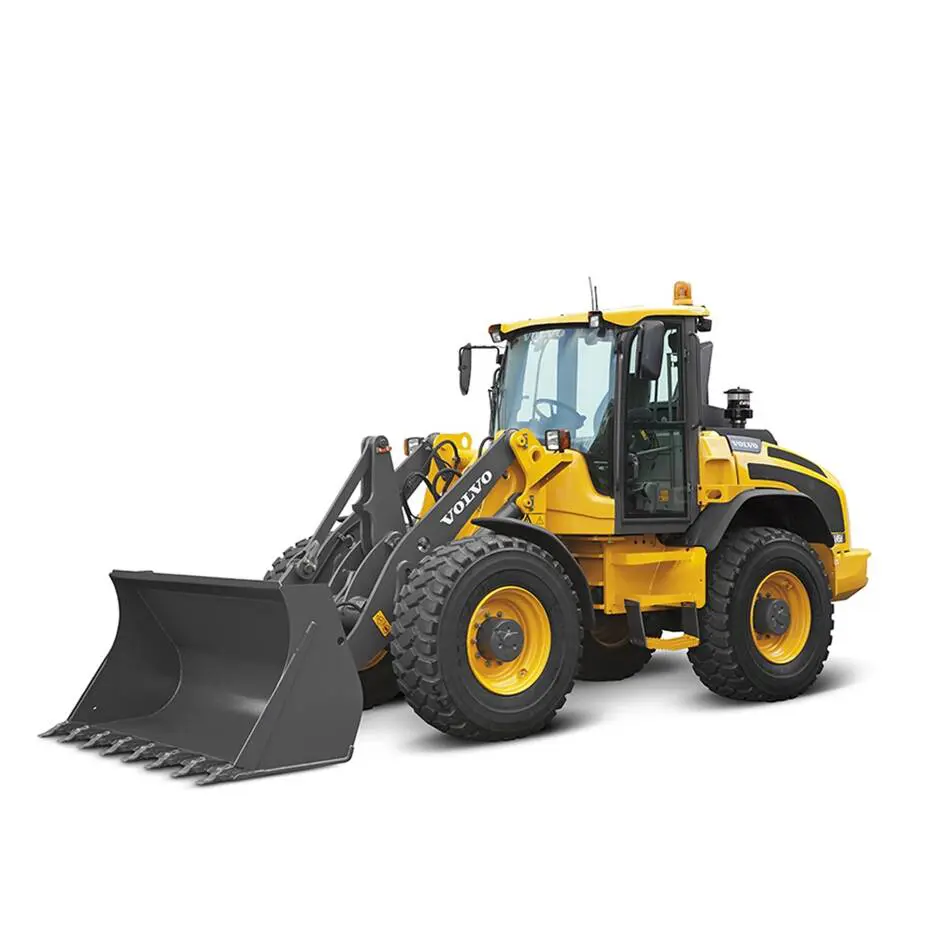

L45H
e2dad5d7-0afb-4c2e-b800-af4e46ae93e5
Description
Whether working on rough terrain or smooth concrete, Volvo's L45H loaders give you top performance. Quality is built into every inch of the machines, from the differential lock that transfers 100% power to all wheels, to the hydrostatic transmission which offers smooth speed increase.
Features And Benefits

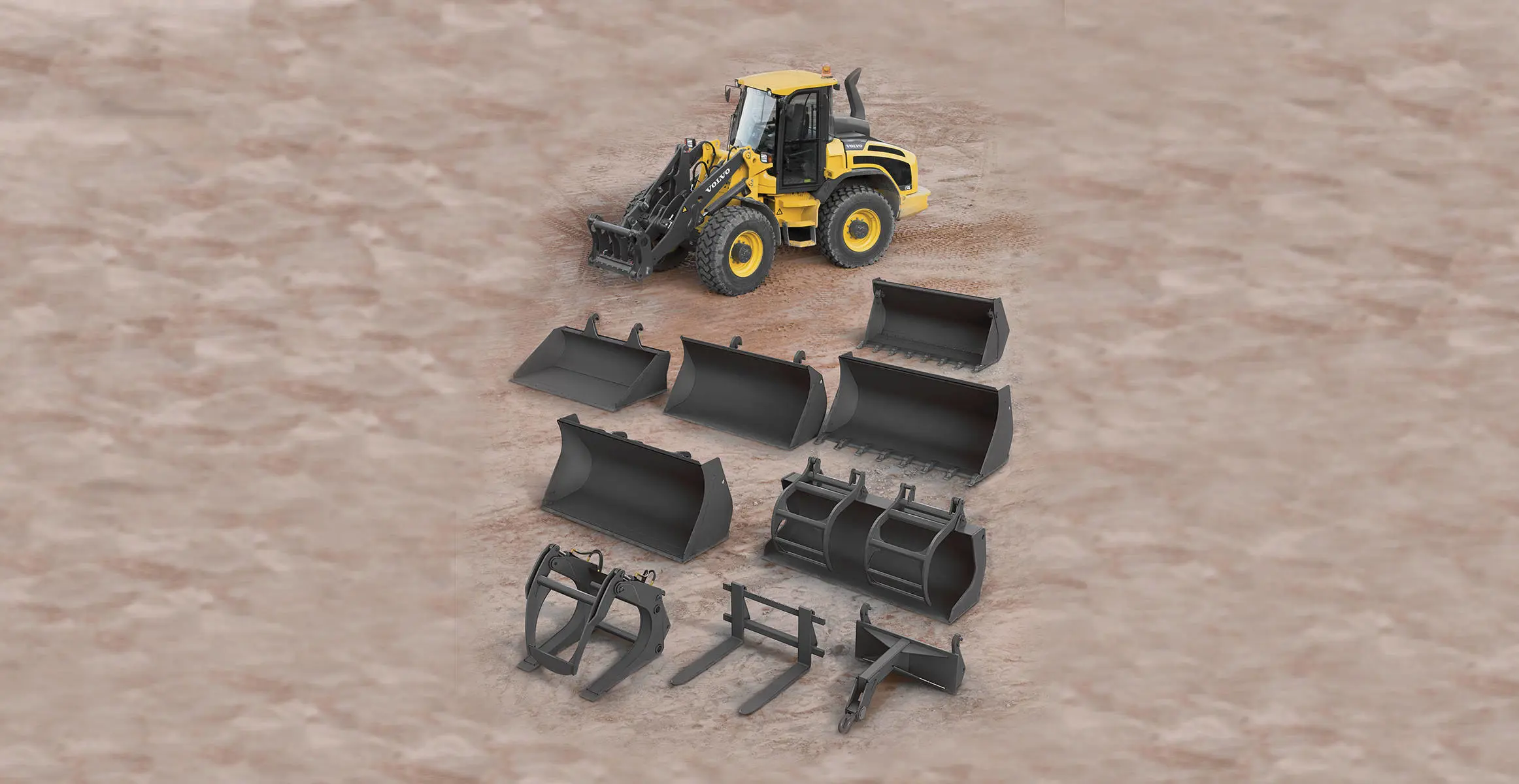

- Wide range of attachments
- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls

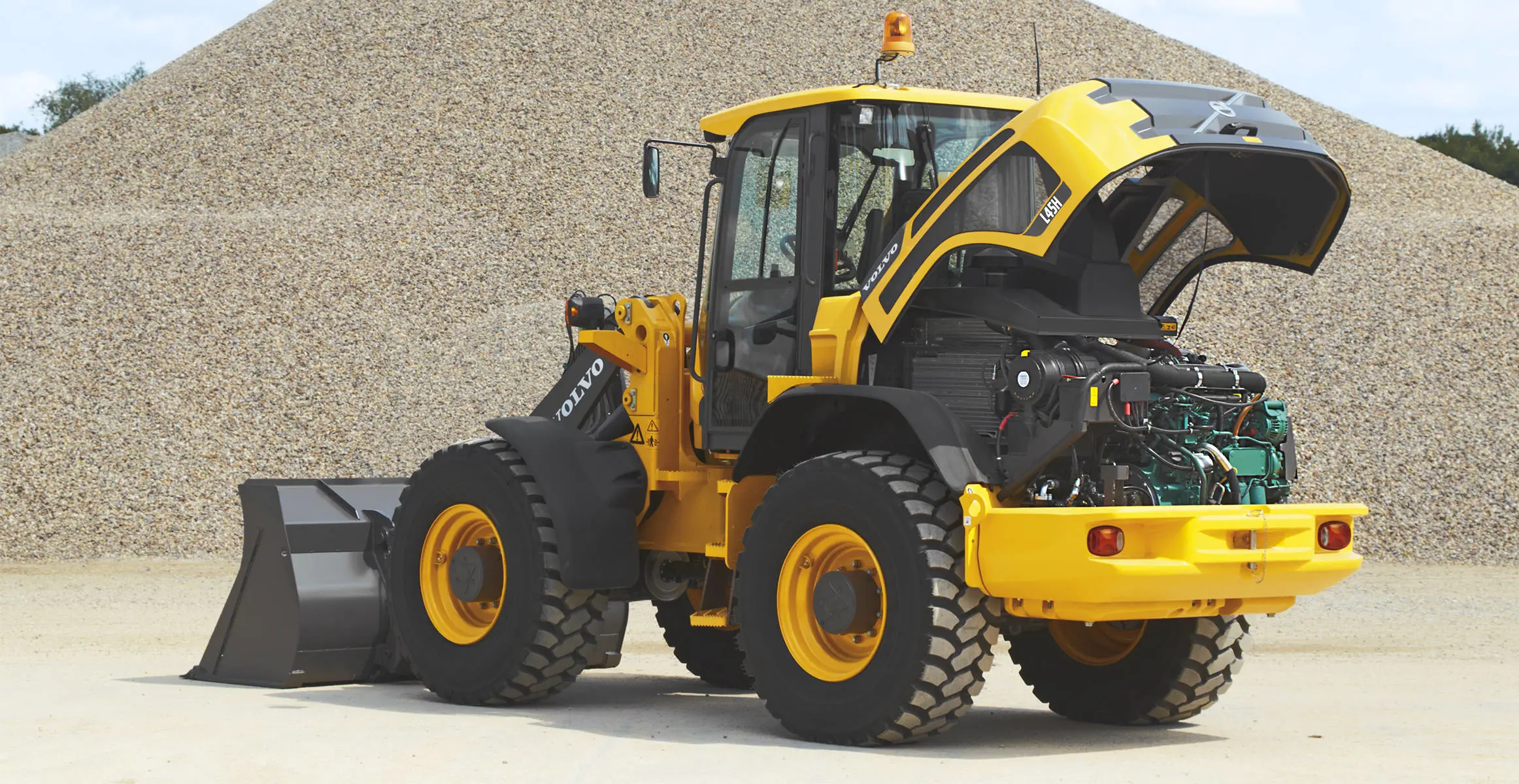

- Outstanding serviceability
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Images
Driveline
Engine Manufacturer Volvo
Engine Model D4J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Particulate Filter
Aspiration Turbo
Displacement 244 Inches³ (4 ltr)
Rated Speed 2200 rpm
Engine Output - Gross 100 hp (75 kW)
Engine Output - Net 97.9 hp (73 kW)
Torque 314 lbf / ft (425 Nm)
Transmission Type Hydrostatic
Traction Control Yes
Tire Size - Standard 15.5 - 25
Hydrostatic System Braking Yes
Hydrostatic Brake - Actuation All Wheels
Service Brake - Type Wet Disc
Dimensions
Wheelbase 8 ft 7 in (2650 mm)
Length With Bucket On Ground 20 ft 10 in (6385 mm)
Height - Over Cab 9 ft 8.1 in (2950 mm)
Ground Clearance 15.5 inches (395 mm)
Width Over Tires - Std 7 ft 0.6 in (2150 mm)
Bucket Type GP w/Edge
Bucket Width 7 ft 4.6 in (2250 mm)
Full Lift Dump Height 9 ft 1.4 in (2780 mm)
Full Lift Reach 3 ft 1.8 in (960 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 45 °
Height - Pivot Pin 12 ft 1 in (3685 mm)
Height - Maximum 18 ft 8.2 in (5695 mm)
Turn Radius Over Bucket - Std. 16 ft 11.15 in (5160 mm)
Capacities
Fuel Tank 42.3 gallons (US) (160 ltr)
Heaped Capactiy 2 yd³ (1.5 m³)
Bucket Capacity - Smallest 1.6 yd³ (1.2 m³)
Largest Bucket Capacity 2.6 yd³ (2 m³)
Performance
Straight Tipping Load 12919 lbs (5860 kg)
Full Turn Tipping Load 11442 lbs (5190 kg)
Breakout - Bucket 15601 lbf (7076.49 kgf)
Bucket Breakout 15601 lbf (69.4 kN)
Ride Control System Optional
Load Sensing Yes
Weights
Bucket Capacity 1.6-2.6 yd³ (1.2-2 m³)
Operating Weight 19378 lbs (8790 kg)
