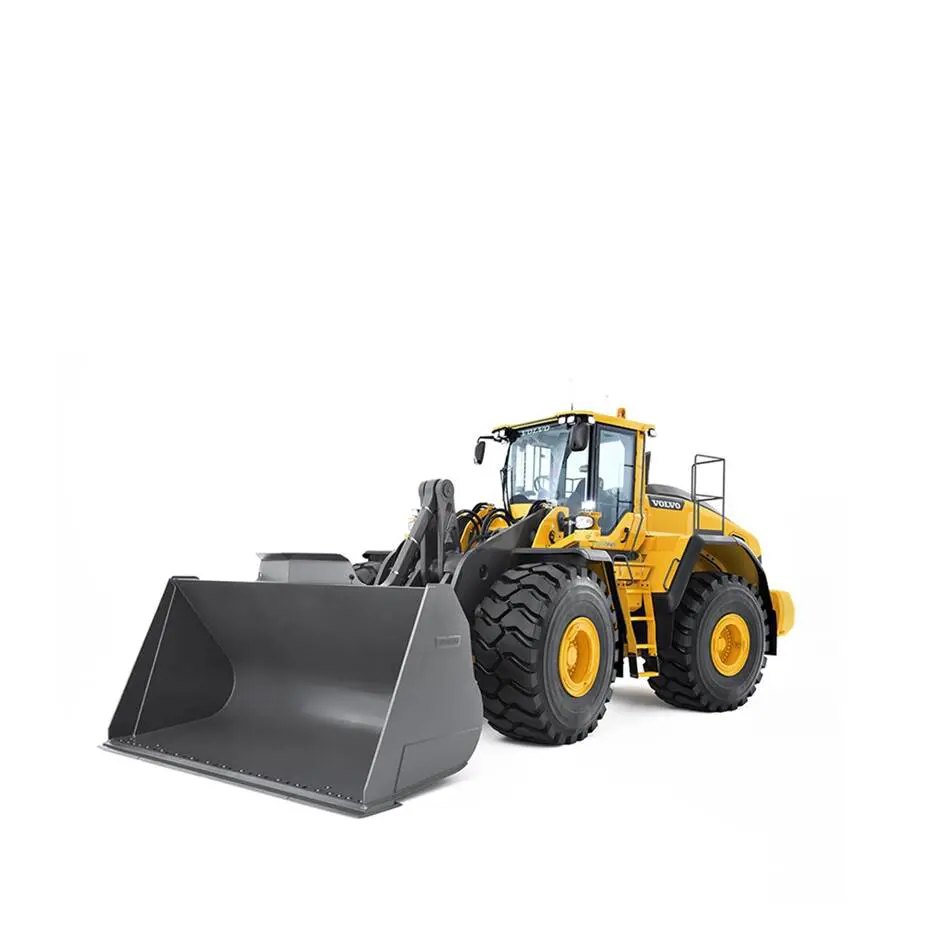

L180H
e8e47e92-2d7b-43e8-94d8-ae0517fe9c3f
Description
The new H-series L180 is more efficient, more productive and more intelligent than the former G-series. Achieve up to 15% greater fuel efficiency, thanks to a powerful engine, second generation OptiShift and new dry P-Brake. To boost productivity by up to 10%, the L180H has also been upgraded with a new transmission, new converter and revised gear ratio.
Features And Benefits
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
- 2019 EquipmentWatch Lowest Cost of Ownership Award
- Wide range of attachments

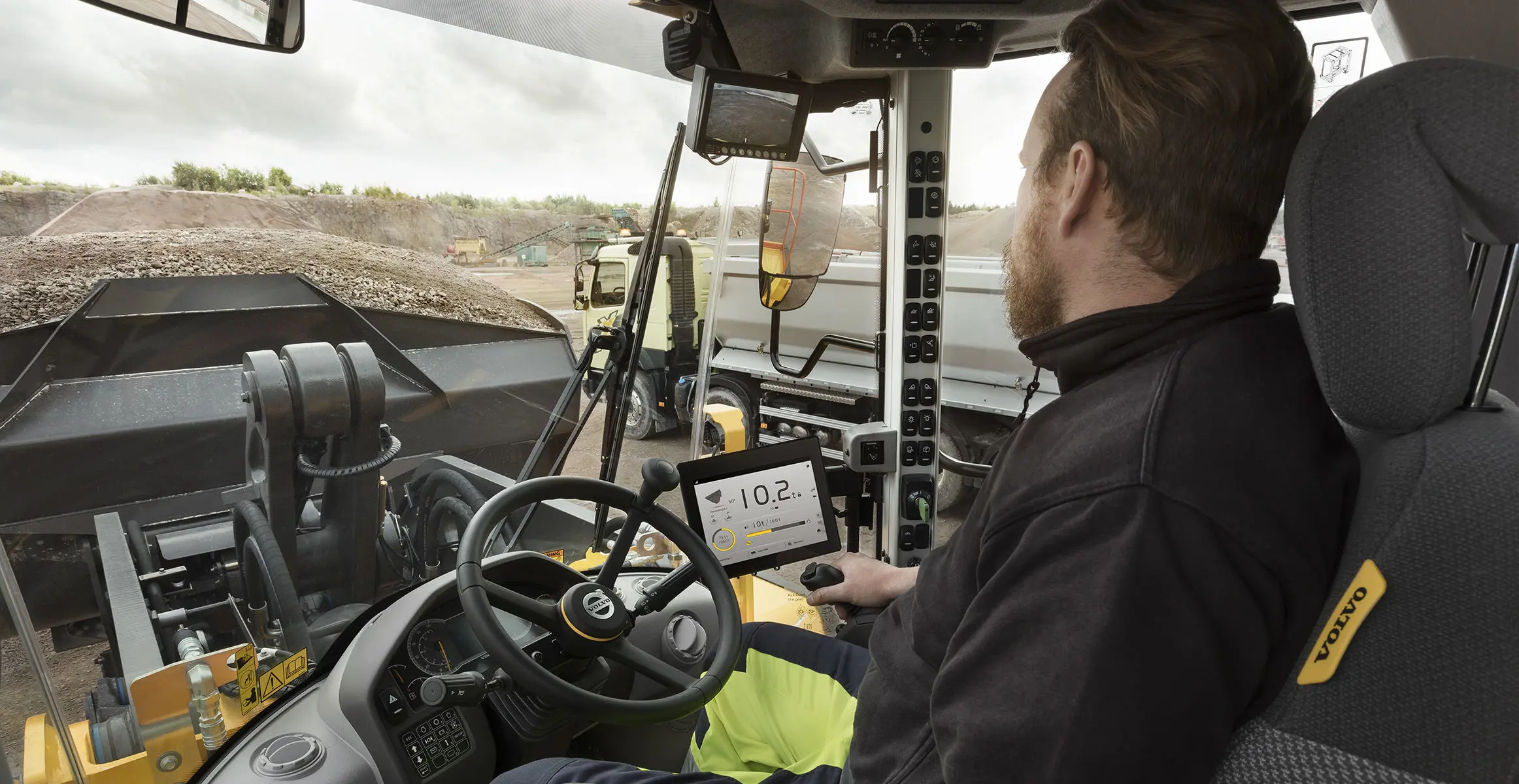

- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls
- Outstanding serviceability
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Particulate Filter
Aspiration Var. Geometry Turbo - Charge Air Cooled
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1300 rpm
Engine Output - Net 337 hp (251 kW)
Torque 1527 lbf / ft (2071 Nm)
Transmission Type Powershift
Tire - Manufacturer Michelin
Tire Size - Standard 26.5 R25
Service Brake - Type Wet Disc
Dimensions
Wheelbase 11 ft 8 in (3550 mm)
Length With Bucket On Ground 29 ft 5 in (8960 mm)
Height - Over Cab 11 ft 9 in (3580 mm)
Ground Clearance 19 inches (480 mm)
Width Over Tires - Std 9 ft 9 in (2960 mm)
Bucket Type Rehandling w/Edge
Bucket Width 11 ft 1 in (3400 mm)
Full Lift Dump Height 9 ft 11 in (3010 mm)
Full Lift Reach 4 ft 6 in (1370 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 49 °
Height - Pivot Pin 14 ft 8 in (4470 mm)
Height - Maximum 19 ft 10 in (6040 mm)
Turn Radius Over Bucket - Std. 24 ft 7.5 in (7505 mm)
Capacities
Fuel Tank 96.7 gallons (US) (366 ltr)
Heaped Capactiy 7.2 yd³ (5.5 m³)
Bucket Capacity - Smallest 5.5 yd³ (4.2 m³)
Largest Bucket Capacity 10.2 yd³ (7.8 m³)
Performance
Straight Tipping Load 51480 lbs (23350 kg)
Full Turn Tipping Load 44970 lbs (20390 kg)
Breakout - Bucket 48600 lbf (22045 kgf)
Bucket Breakout 48600 lbf (216.2 kN)
Ride Control System Optional
Oscillation - Rear Axle 30 °
Load Sensing Yes
Weights
Bucket Capacity 5.5-10.2 yd³ (4.2-7.8 m³)
Operating Weight 62380 lbs (28290 kg)
