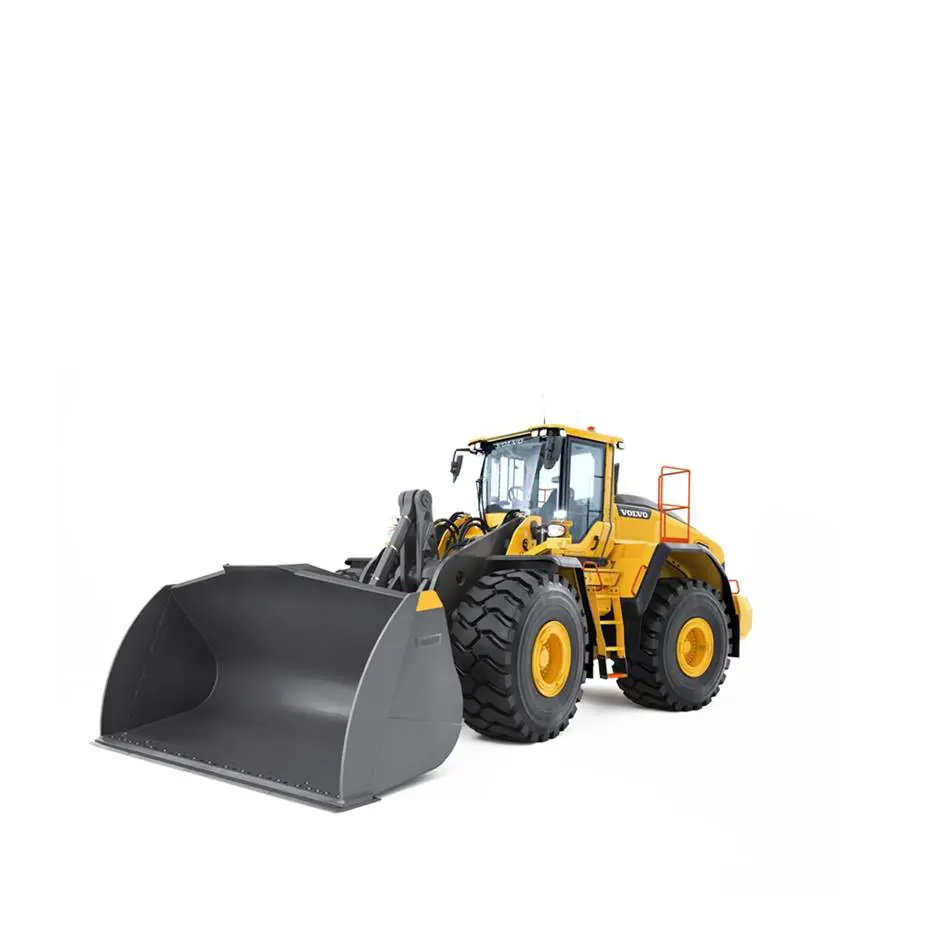

L150H
f1222b98-a218-4567-9084-3d82e426ee14
Description
The new H-series L150 is more efficient, more productive and more intelligent than the former G-series. Achieve up to 15% greater fuel efficiency, thanks to a powerful engine, second generation OptiShift and new dry P-Brake. To boost productivity by up to 10%, the L150H has also been upgraded with a new transmission, new converter and revised gear ratio.
Features And Benefits

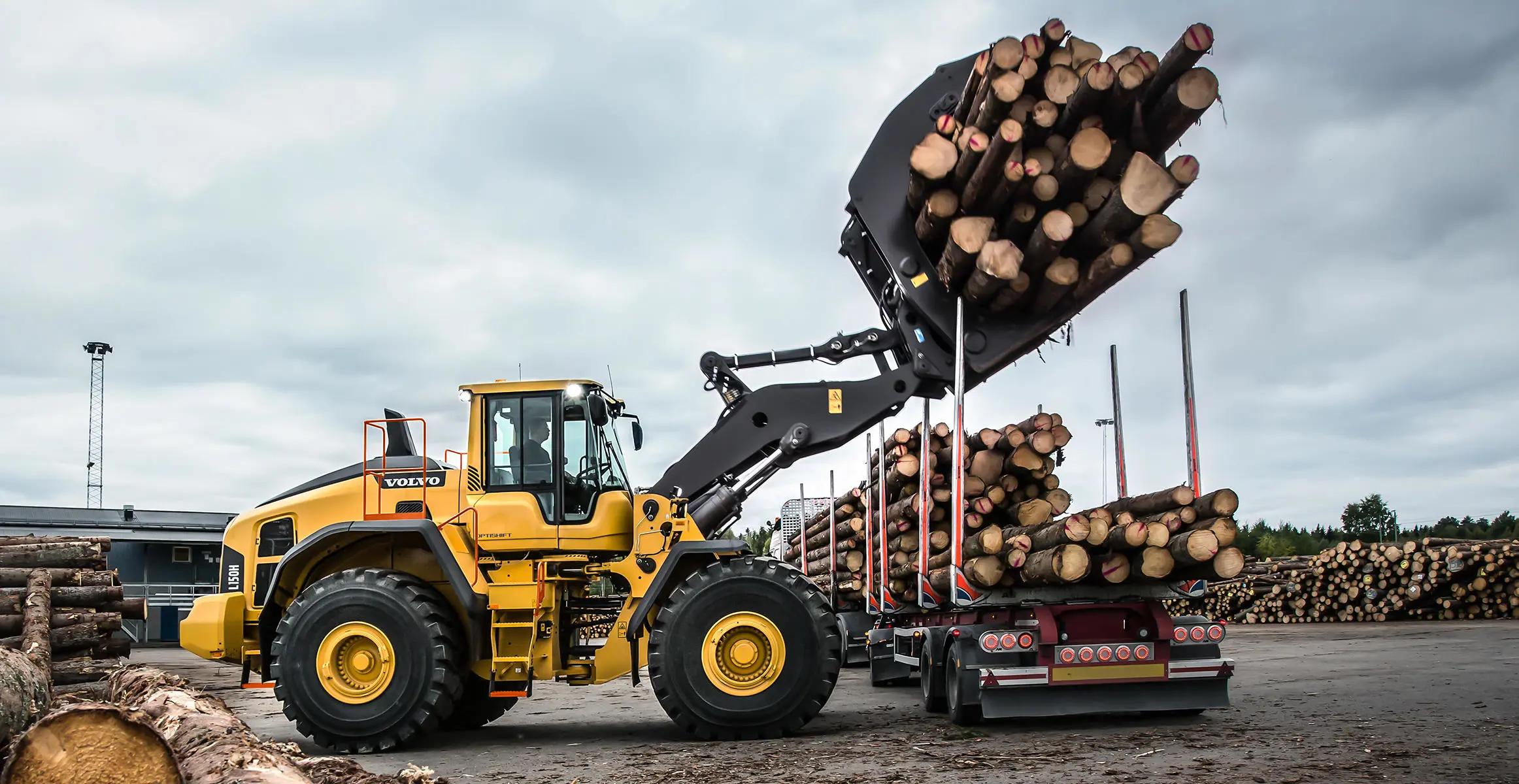

- Wide range of attachments

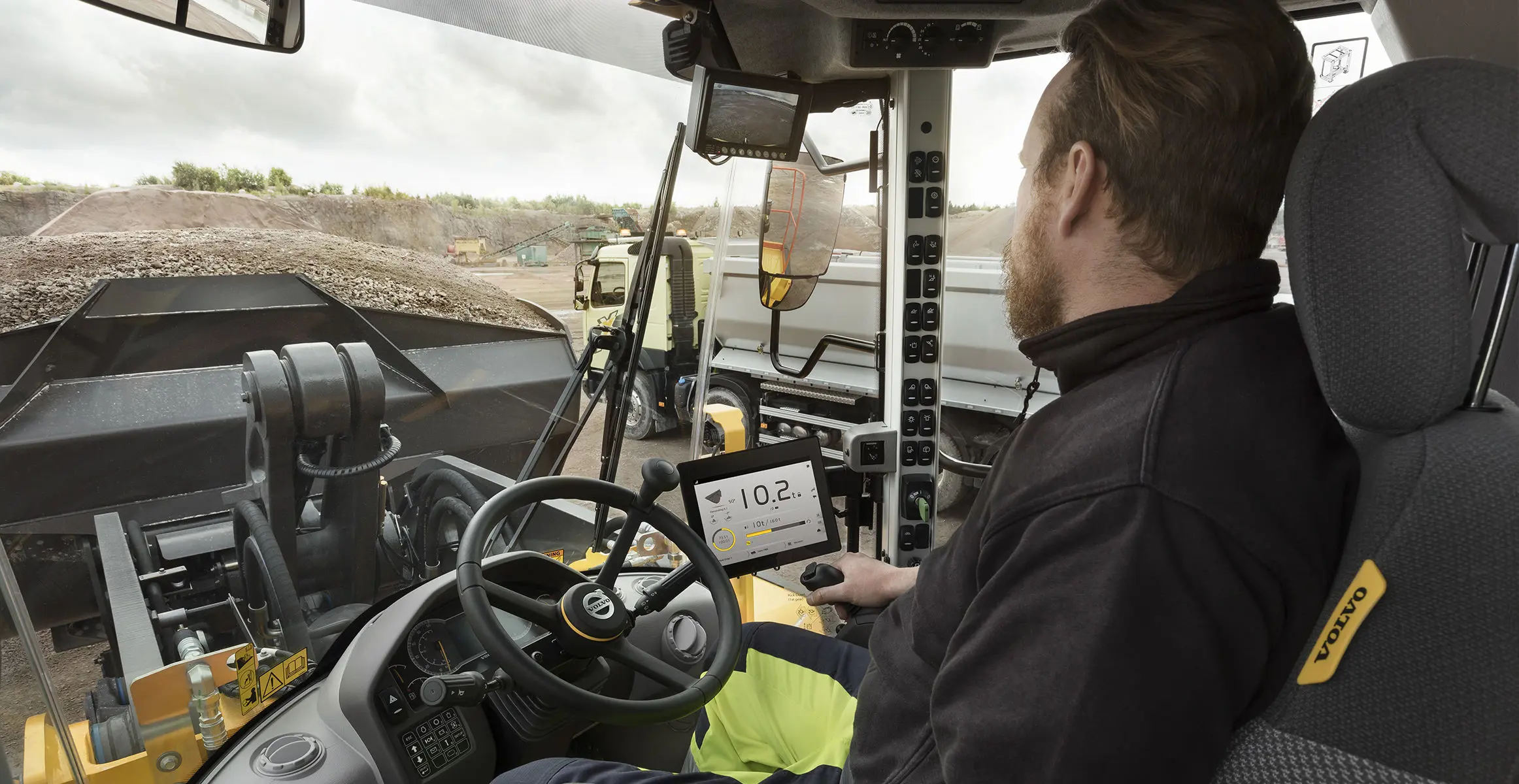

- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls

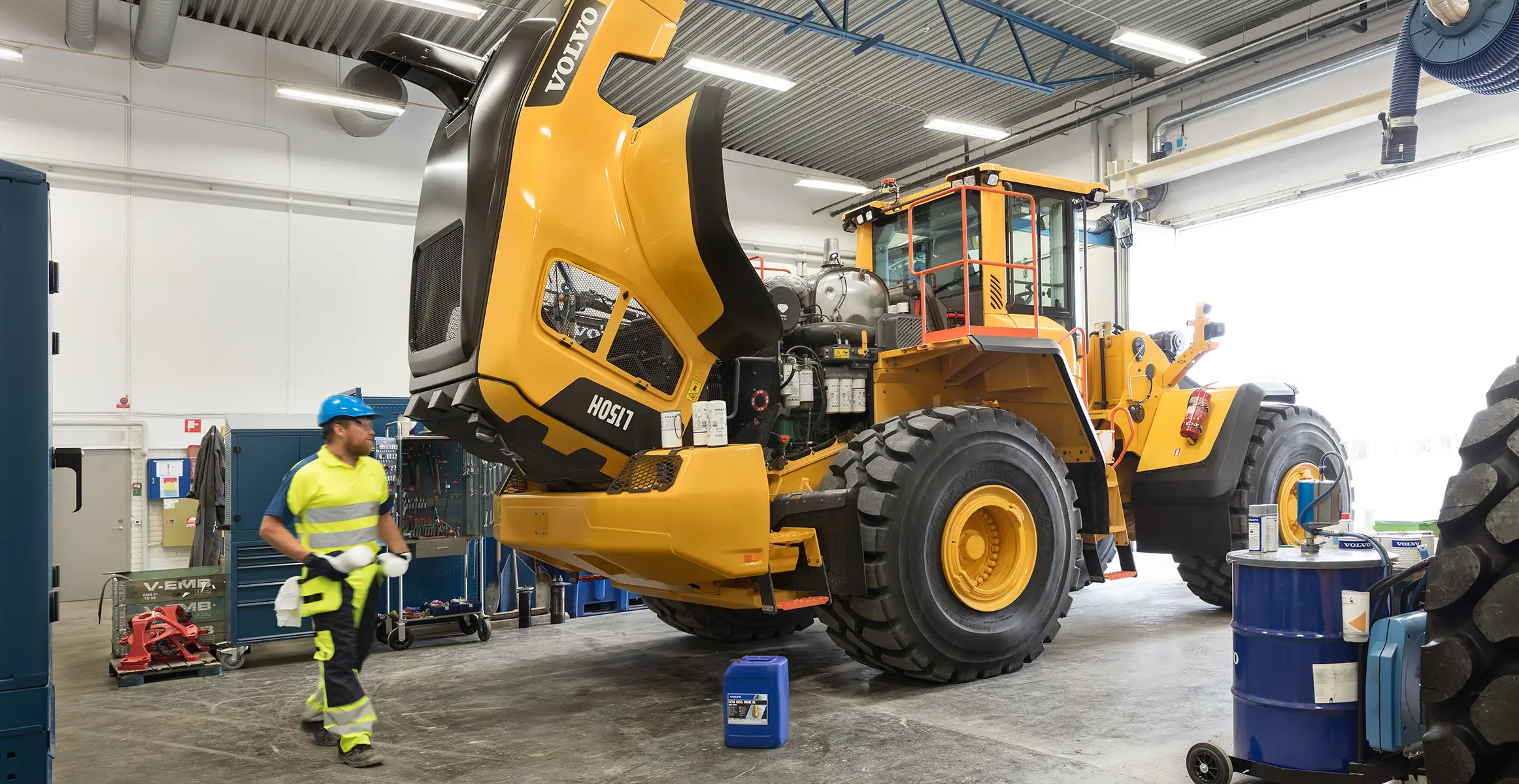

- Outstanding serviceability
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Particulate Filter
Aspiration Var. Geometry Turbo - Charge Air Cooled
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1300 rpm
Engine Output - Net 300 hp (224 kW)
Torque 1474 lbf / ft (1999 Nm)
Transmission Type Powershift
Tire - Manufacturer Michelin
Tire Size - Standard 26.5 R25
Service Brake - Type Wet Disc
Dimensions
Wheelbase 11 ft 8 in (3550 mm)
Length With Bucket On Ground 28 ft 6 in (8680 mm)
Height - Over Cab 11 ft 9 in (3580 mm)
Ground Clearance 19 inches (480 mm)
Width Over Tires - Std 9 ft 9 in (2960 mm)
Bucket Type Rehandling w/Edge
Bucket Width 10 ft 5 in (3200 mm)
Full Lift Dump Height 9 ft 9 in (2970 mm)
Full Lift Reach 4 ft 2 in (1270 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 50 °
Height - Pivot Pin 14 ft 3 in (4340 mm)
Height - Maximum 18 ft 11 in (5770 mm)
Turn Radius Over Bucket - Std. 24 ft 1 in (7335 mm)
Capacities
Fuel Tank 96.7 gallons (US) (366 ltr)
Heaped Capactiy 5.8 yd³ (4.4 m³)
Bucket Capacity - Smallest 4.6 yd³ (3.5 m³)
Largest Bucket Capacity 8.9 yd³ (6.8 m³)
Performance
Straight Tipping Load 44610 lbs (20230 kg)
Full Turn Tipping Load 39260 lbs (17810 kg)
Breakout - Bucket 43090 lbf (19545 kgf)
Bucket Breakout 43090 lbf (191.7 kN)
Ride Control System Optional
Oscillation - Rear Axle 30 °
Load Sensing Yes
Weights
Bucket Capacity 4.6-8.9 yd³ (3.5-6.8 m³)
Operating Weight 55780 lbs (25300 kg)
