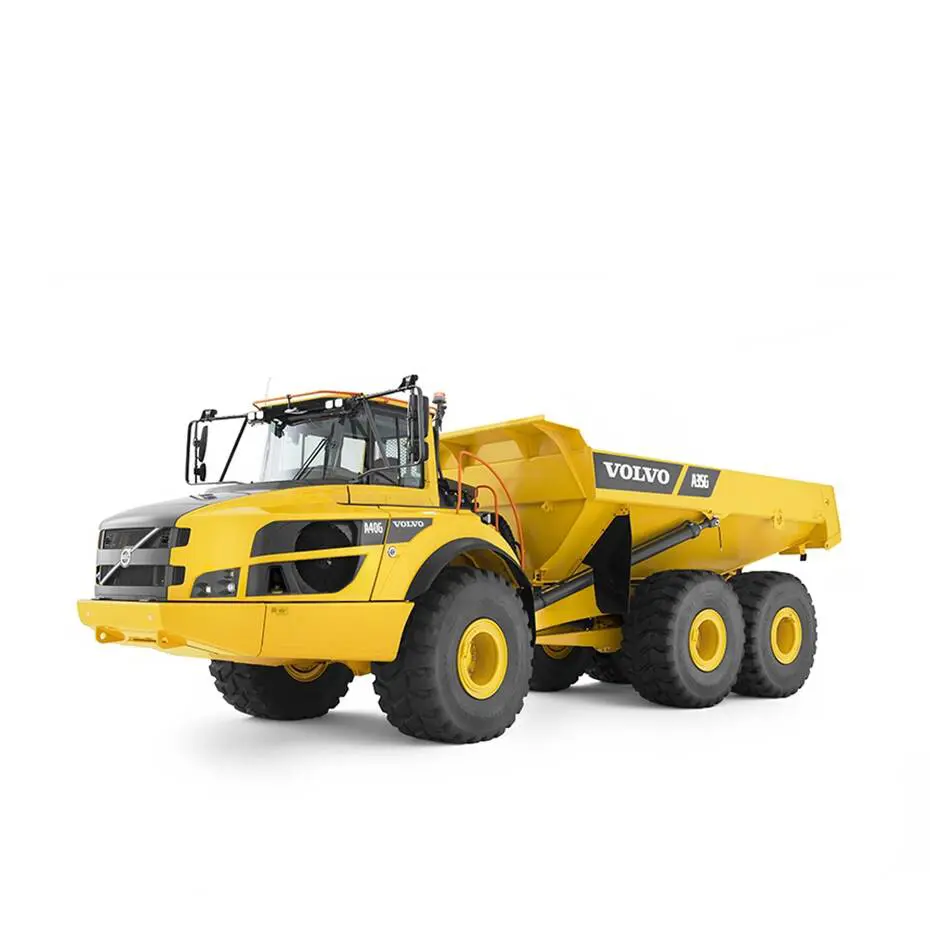

A35G
fc9a642e-3019-43ec-9f75-ce41932b2e7a
PROVIDING POWER
Description
With innovative features to help you tackle tough jobs, the A35G articulated truck provides the power, strength and reliability you need to maximize your productivity.
Features And Benefits
- Fuel Efficiency Guaranteed
- Lifetime Frame & Structure Guarantee (Frame, Articulation/Oscillation Joint)
- Industry-leading service access
- Volvo Dynamic Drive
- Operational data: CareTrack, MATRIS & Optional On Board Weighing System

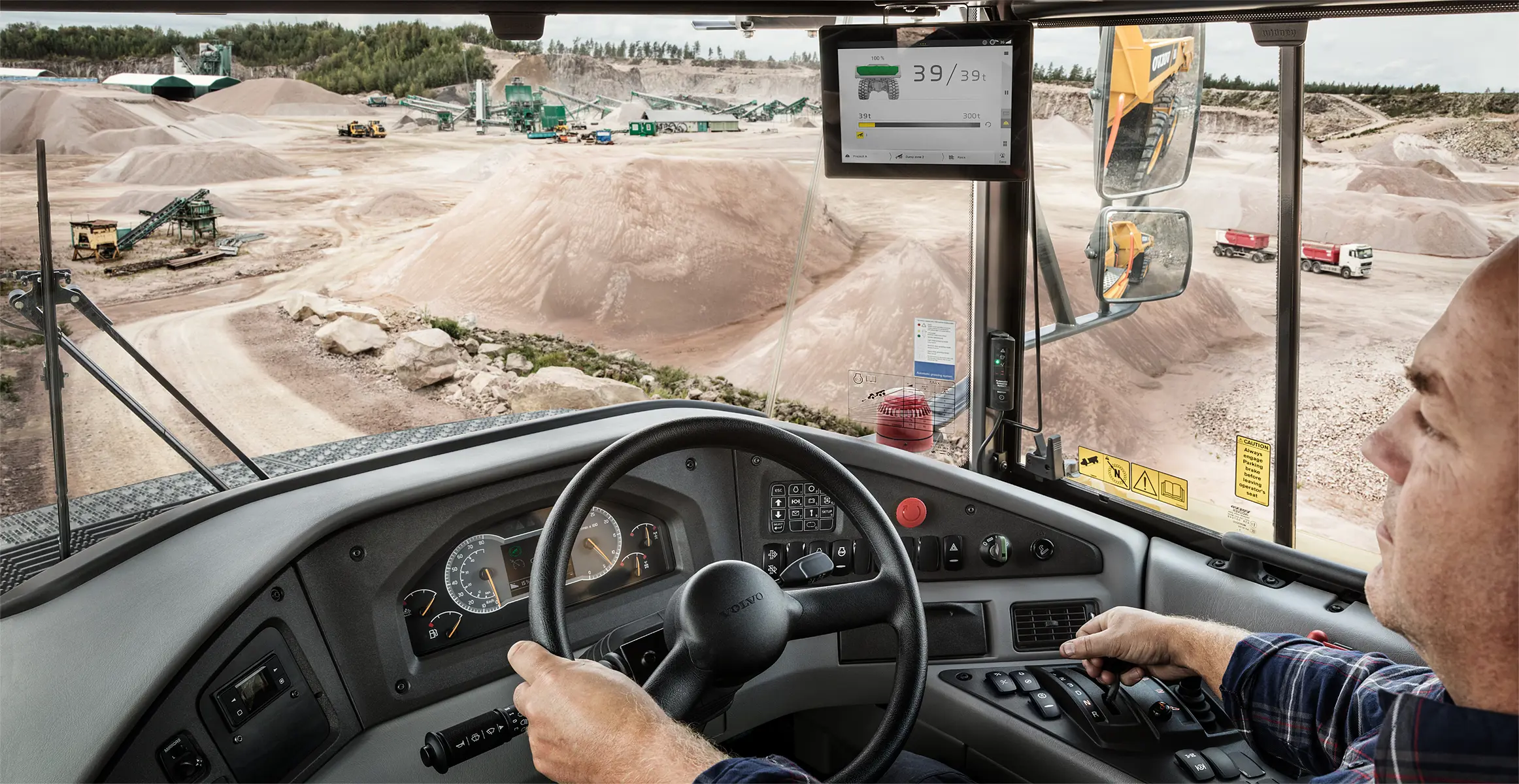

- Prioritized operator control, comfort & safety
Images
Video
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1900 rpm
Engine Output - Net 447 hp (333 kW)
Engine Output - Gross 451 hp (336 kW)
Torque 1775 lbf / ft (2407 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type Powershift
Traction Control Yes
Front Differential Locking
Second Axle Differential Locking
Third Axle Differential Locking
Centre Transfer Differential Locking
Tire Size - Standard 26.5 R25
Tire Type - Standard Radial
Front Suspension - Type 3 Point
Front Suspension Rubber Bushing / Shock Absorber
Rear Suspension - Type 3 Point Bogie Beam
Rear Suspension 3 Point
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 36 ft 8 in (11180 mm)
Height - Over Cab 11 ft 8 in (3547 mm)
Height - Max 11 ft 8 in (3547 mm)
Ground Clearance 20 inches (500 mm)
Width Over Tires 10 ft 7 in (3221 mm)
Width - Transport 10 ft 7 in (3221 mm)
Width - Operating 10 ft 7 in (3221 mm)
Wheelbase 17 ft 11 in (5488 mm)
Length - Body 18 ft 3 in (5568 mm)
Loading Height 9 ft 11 in (3014 mm)
Full Dump Height 23 ft 9 in (7236 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 72 °
Approach Angle 23.6 °
Articulation Angle 45 ± °
Turning Radius - Outside 29 ft 1 in (8866 mm)
Turning Radius - Inside 14 ft 6 in (4416 mm)
Capacities
Fuel Tank 126.8 gallons (US) (480 ltr)
Heaped Capacity 27.7 yd³ (21.2 m³)
Performance
Cycle Time - Raise 12 s
Unladen Axle Load - Front 34613 lbs (15700 kg)
Unladen Axle Load - Centre 14991.5 lbs (6800 kg)
Unladen Axle Load - Rear 14991.5 lbs (6800 kg)
Unladen Axle Load - Centre + Rear 29983 lbs (13600 kg)
Laden Axle Load - Front 42329 lbs (19200 kg)
Laden Axle Load - Centre 49163 lbs (22300 kg)
Laden Axle Load - Rear 49163 lbs (22300 kg)
Laden Axle Load - Centre + Rear 98326 lbs (44600 kg)
Front - Unladen 19.1 PSI (132 kPa)
Rear - Unladen 7.8 PSI (54 kPa)
Front - Laden 22.9 PSI (158 kPa)
Rear - Laden 26.5 PSI (183 kPa)
Speed - Forward Maximum 35.4 mph (57 kph)
Speed - Reverse Maximum 11.2 mph (18 kph)
Weights
Net Weight 64595 lbs (29300 kg)
Payload 76059 lbs (34500 kg)
Gross Weight 140655 lbs (63800 kg)
