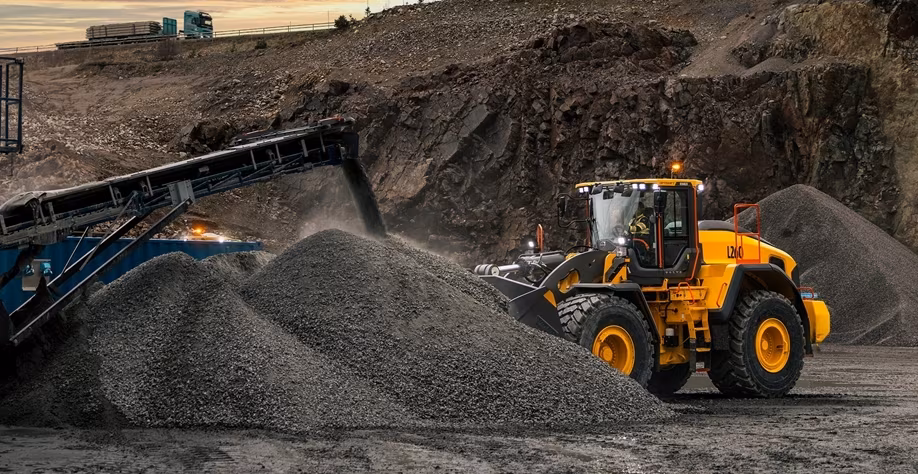

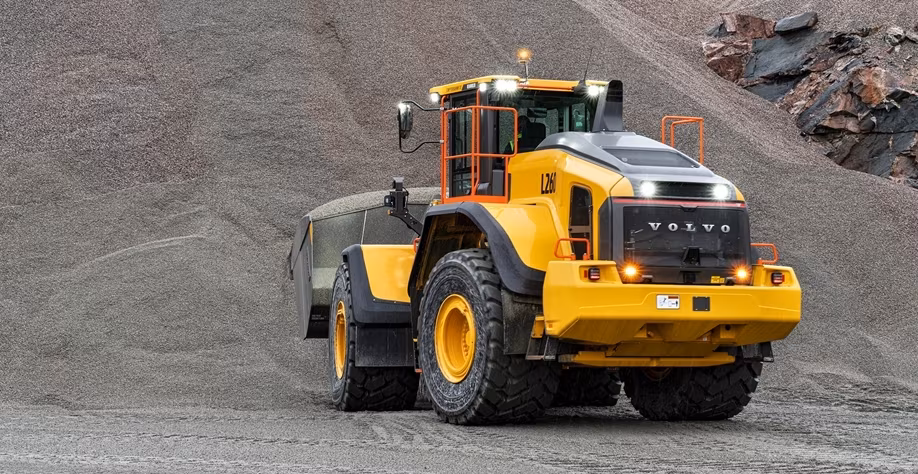

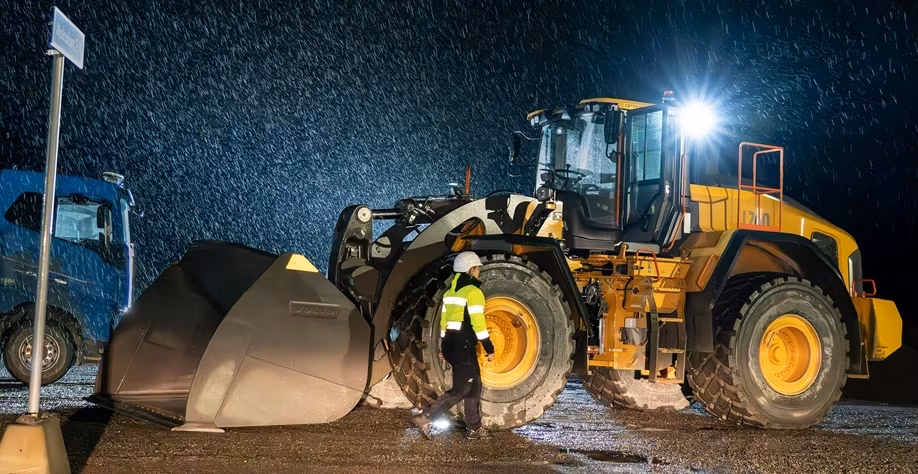

L260
Description

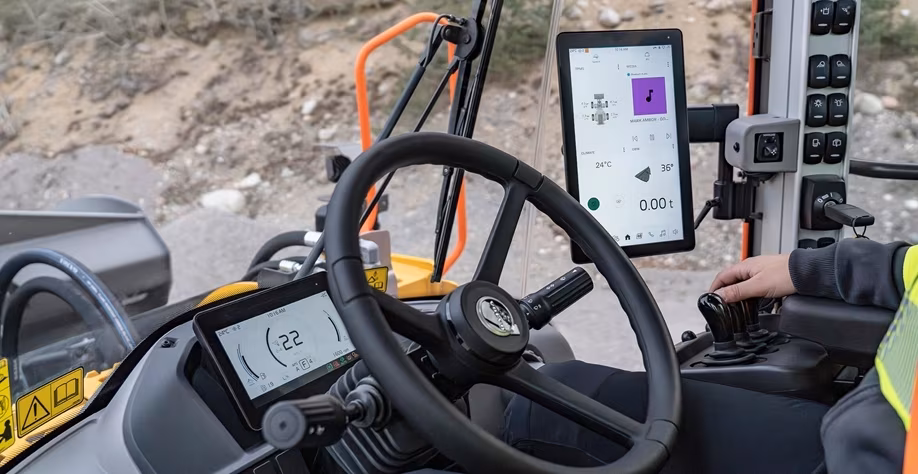

Take productivity to the next level in large-scale rehandling, quarrying and mining projects thanks to the perfect combination of power, performance and intelligent solutions. Designed to deliver faster cycle times, maximum payload and unrivalled operator comfort, the L260 has Volvo quality running throughout every detail – delivering durability and safety you can count on. Combine that with a range of Volvo smart solutions including Load Assist, On-Board Weighing and Load Ticket, and the L260 is primed to deliver outstanding results.
Features And Benefits
- The second generation load sensing hydraulics are designed to enhance the responsiveness of the hydraulic system and improve the lifting and lowering speed of the boom.
- Contributing to the fuel-efficient performance is Smart Control, powerful engine, second generation OptiShift, attachment optimization and external dry P-Brake, which eliminates drag losses.
- Quality is synonymous with the Volvo brand, and has been central to the products we engineer and produce for more than 175 years; that is why we are passing that on to you through the Lifetime Frame and Structure Warranty.
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D13J
After Treatment System Diesel Oxidation Catalyst
Aspiration Turbo Charger and Intercooled
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1400 rpm
Engine Output - Net 414 hp (309 kW)
Torque 1717 lbf / ft (2328 Nm)
Transmission Type Automatic Power Shift
Traction Control No
Tire Size 29.5 R25
Service Brake - Type Wet Disc
Dimensions
Wheelbase 12 ft 6 in (3800 mm)
Length With Bucket On Ground 31 ft 7 in (9640 mm)
Height - Over Cab 12 ft 3 in (3730 mm)
Ground Clearance 21 inches (540 mm)
Width Over Tires - Std 10 ft 8 in (3260 mm)
Bucket Type GP w/Bolt-on Edge
Bucket Width 12 ft (3650 mm)
Full Lift Dump Height 10 ft 3 in (3110 mm)
Full Lift Reach 5 ft 11 in (1800 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 39 °
Height - Pivot Pin 15 ft 3 in (4640 mm)
Height - Maximum 21 ft 2 in (6480 mm)
Turn Radius Over Bucket - Std. 26 ft 11 in (8205 mm)
Capacities
Fuel Tank 96.7 gallons (US) (366 ltr)
Heaped Capactiy 8.9 yd³ (6.8 m³)
Smallest Bucket Capacity 7.2 yd³ (5.5 m³)
Largest Bucket Capacity 13.3 yd³ (10.2 m³)
Performance
Straight Tipping Load 59060 lbs (26790 kg)
Full Turn Tipping Load 51740 lbs (23460 kg)
Bucket Breakout 67450 lbf (300 kN)
Oscillation - Rear Axle 30 °
Load Sensing Yes
Weights
Bucket Capacity 7.2-13.3 yd³ (5.5-10.2 m³)
Operating Weight 75200 lbs (34100 kg)
